Basic Setup for Your August Connect

Authored by: Support.com Tech Pro Team

1. Introduction: August Connect: Basic Setup

Control your August Smart Lock from anywhere using the August Connect Wi-Fi bridge.

This guide helps you setup your new August Connect!

2. August Connect: Plugging In

1. Plug your August Connect within 15 feet of your Smart Lock for optimal performance.
2. Wait for the flashing green light on the Connect.


1.

2. If you don't see the light, press and hold the button for 3 seconds.


What the LED Colors Mean

A steady blinking green light indicates that August Connect is ready to be set up.  Go to Lock Settings and tap Connect to Wi-Fi.

The green light flashes quickly when connecting with your august Smart Lock.  A green light indicates normal remote operations are in process and requires no action.

A solid red light indicates that August Connect needs to be setup.  This can occur when:

• The initial configuration period of 30 minutes times out.
• Your August Connect is on the Wi-Fi network but not setup to operate your lock.
• August Connect is unable to join the local WiFi network

A steady flashing Red Light indicates a communication problem, either between August Connect and your August Smart Lock or between August Connect and the internet. This typically represents a temporary problem.

3. iOS: Install App

1. From the main screen, open the App Store.


1.


2. At the bottom of the screen, tap on Search.


1.


2. Type name of the desired app on the search bar at the top.
3. Tap Search to start the search.


1. .


2. Tap the App to see its download options.
3. Next, tap the button:

4. GET if the app is free.
5. PRICE if it is a paid app.
6. Tap OPEN once the app is installed.

4. August Connect: Setup via iOS

1. Open your August App.


1. Swipe right. In the side menu, tap Set Up New Device.

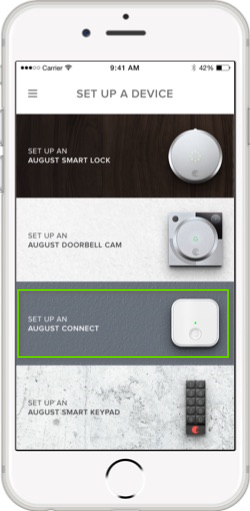

1. Tap Set Up An August Connect.


1. Choose a lock to pair with your Connect.

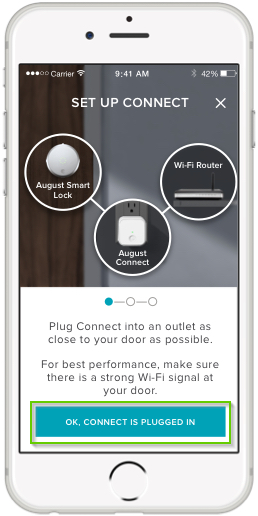

2. Tap Connect is Plugged In.

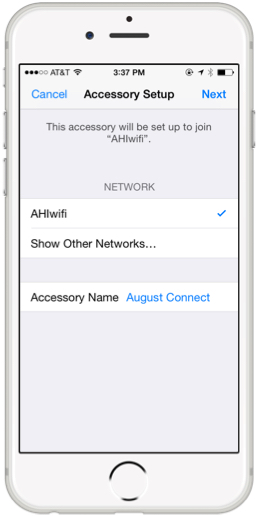

1. Choose your network and input your Wi-Fi password.

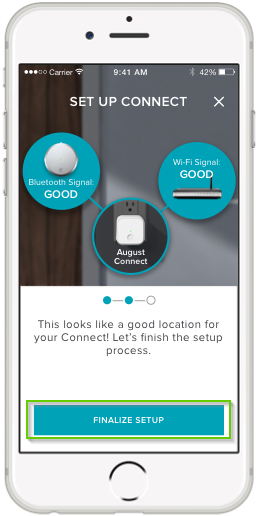

1. Tap Finalize Setup.


5. Android: Install App

1. Launch the Play Store on your device.


1.


2. Search for your desired app using the search box located at the top.
3. Touch the magnifying glass on the on-screen keyboard to search.


1.


2. On the app's install page, touch INSTALL.
3. Review the install prompt that pops up. Once done, touch ACCEPT.
4. Wait for the download to finish. Once done, touch OPEN to launch the app or go back to your apps to access the new app's icon.

6. August Connect: Connect to Lock via Android

1. Tap the Menu icon.


1.

2. Tap Settings.


1.

2. Tap your lock in Lock Settings.


1.

2. Tap Set Up August Connect.


7. August Connect: Wi-Fi Connect via Android

In order for you to connect your August Connect with your August Home app and Wi-Fi network via Android, you will need to have a working August Smart Lock already set up within the August Home app.

1. Open your August App.

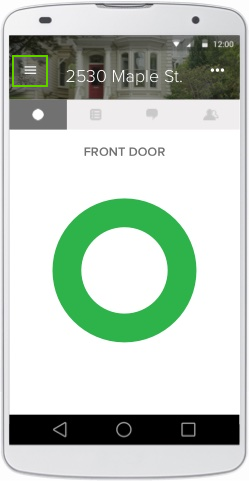

1. Tap the Menu icon.

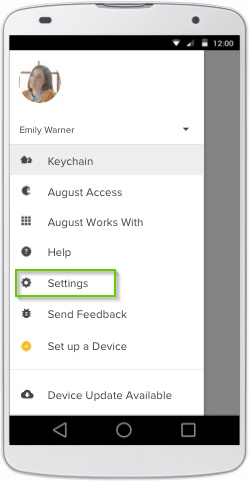

1. Tap Settings.

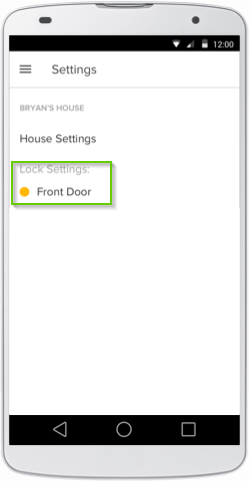

1. Tap your lock in Lock Settings.

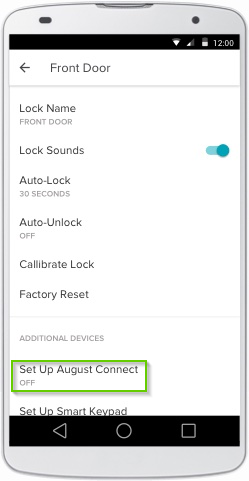

1. Tap Set Up August Connect.

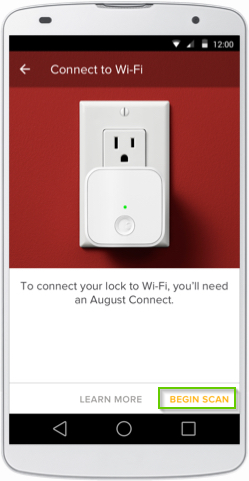

1. Tap Begin Scan to start connecting to Wi-Fi.


1.

2. Select your network.

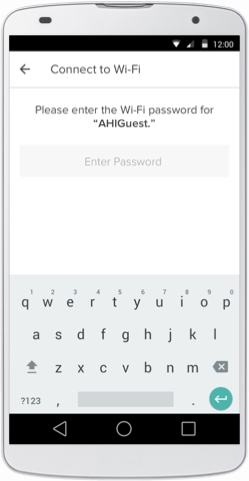

3. Type in your Wi-Fi password.


1.

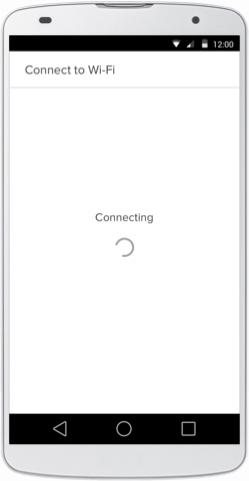

2. The Connect will show that is connecting.


1.
2. Tap Done.
