Connect Your Canon EOS Rebel T7i Camera to Wi-Fi

Authored by: Support.com Tech Pro Team

1. Canon T7i: Get the Manual

%PDF-1.5%âãÏÓ23355 0 obj>endobj 23378 0 obj>/Encrypt 23356 0 R/Filter/FlateDecode/ID[]/Index[23355 206]/Info 23354 0 R/Length 131/Prev 24854334/Root 23357 0 R/Size 23561/Type/XRef/W[1 3 1]>>streamhÞbbd```b`”‘Œ×A$Ã}0Û

2. Wi-Fi Network: Credentials

In order to connect to a wireless network, you must have the required credentials. These are:

• Wireless Network Name (SSID)
• Wireless Network Key (Password)

Finding Network Credentials

Most wireless routers/gateways have a label with the default credentials. If the credentials aren't there, look in the devices documentation.

If your Internet Service Provider (ISP) installed the wireless router or gateway, they might have left you a setup sheet which may have the credentials.

3. Canon EOS Rebel T7i: Connect to Wi-Fi

Turn on Wi-Fi Radio

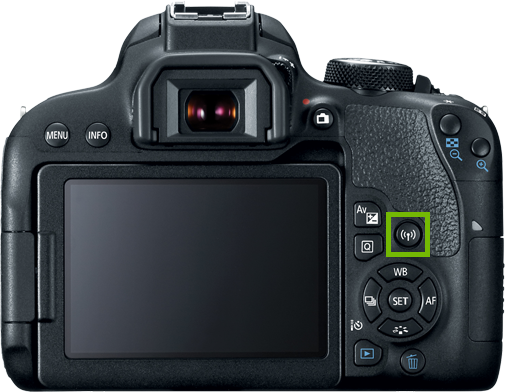

1. Push the Wi-Fi button.

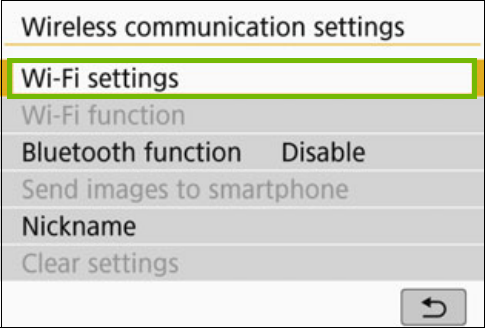

1. Select Wi-Fi settings.

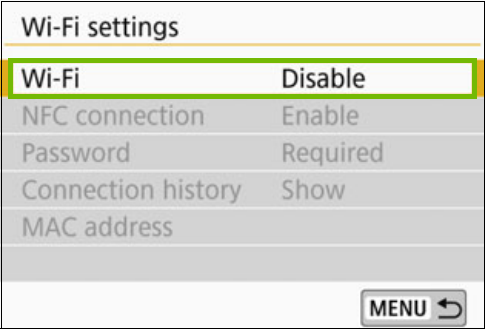

1. Select Wi-Fi.

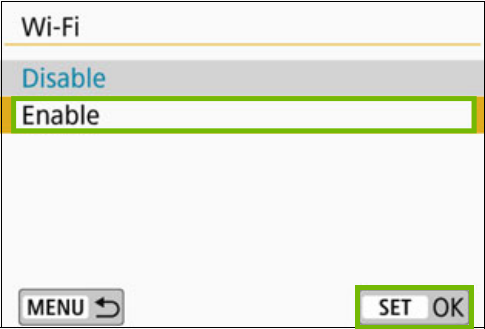

1. Select Enable, and push the Set button to confirm.


Connect to Wi-Fi

1. Push the Wi-Fi button.

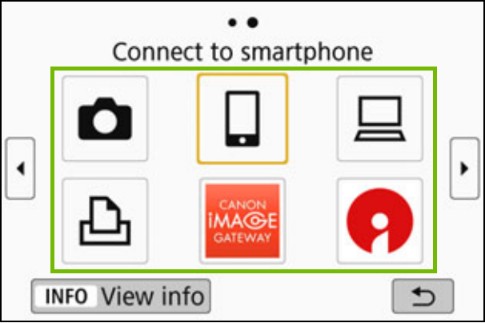

1. Select the action you'd like to perform.


1.

2. Camera - Transfer to a compatible camera
3. Phone - Transfer to a smartphone
4. Computer - Transfer to a computer
5. Printer - Print on a compatible printer
6. Canon Image Gateway - Upload to Canon services
7. Other Web Service - Upload to another compatible web service

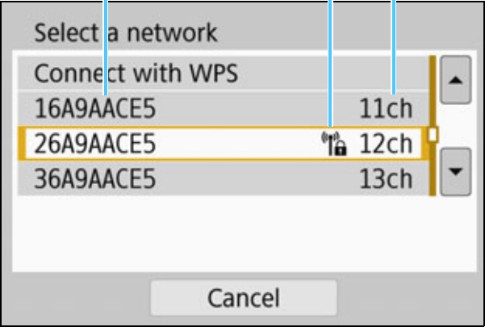

8. Select your Wi-Fi network name.

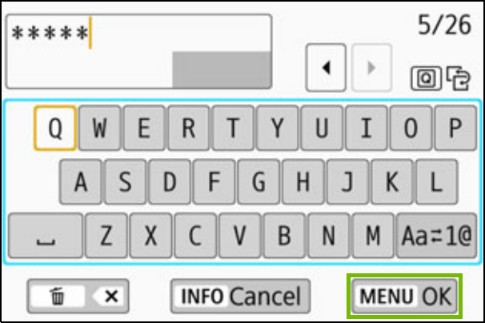

1. Enter your password, then push Menu.

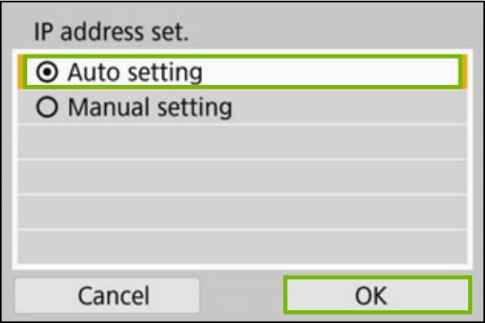

1. Select Auto setting, then select OK.


4. Check Other Devices

To help troubleshoot the problem we should check if other devices can connect to the wireless network.

5. Check Environment

If other wireless devices are connected to the network and functioning properly, chances are the router is OK. It's possible there is an environmental issue. Do you have a portable wireless device (Smart Phone, Tablet, Laptop, etc.) that you can put in the same area to test and see if that device's wireless connection still functions as intended in that location?

6. Power cycle

If you haven't already, please try power cycling the device you're working with. To do so, simply turn it off, wait 30 seconds and turn it back on again.

7. What's next?

8. Networking: Range Check

The device needs to be within a reasonable range of the router in order to connect and have the best connection speeds.

• In general, in most homes, you can be up to 30 feet from your router for a decent connection.
• From 30' to 50' away, the speeds will be slower, and may drop occasionally, but it should be usable.
• Greater than 50' away, and the signal will most likely be too weak to overcome interference. The speeds will be slow, and the connection may be sporadic.

The above numbers are approximates only. Optimal range may vary based on router make and model.

9. What's next?

10. Networking: Relocate Router Check

Your router may need to be relocated to a more centralized location in order to provide better coverage for all your devices.

Good Placement

Bad Placement

11. Router Relocation

Since this appears to be a range issue that can be resolved by putting the router in closer proximity to the device's intended use area, we recommend moving the router to a more centralized location.

12. Range Extender

If wireless signal is not reaching your device, and relocating your router or the device itself to be in closer proximity is not possible or doesn't resolve the issue, a great way to boost wireless signal without replacing existing equipment is to acquire and install a range extender. Range extenders work with your existing wireless router as a type of wireless repeater used to expand the reach of wireless signal in your home.

13. What's next?
