Connect Your Honeywell RTH6580WF Thermostat to Wi-Fi

Authored by: Support.com Tech Pro Team

1. Wi-Fi Network: Credentials

In order to connect to a wireless network, you must have the required credentials. These are:

• Wireless Network Name (SSID)
• Wireless Network Key (Password)

Finding Network Credentials

Most wireless routers/gateways have a label with the default credentials. If the credentials aren't there, look in the devices documentation.

If your Internet Service Provider (ISP) installed the wireless router or gateway, they might have left you a setup sheet which may have the credentials.

2. Honeywell RTH6580WF Thermostat: Connect to Wi-Fi

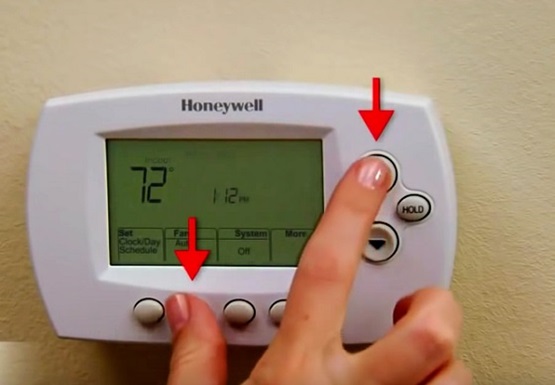

1. Press and hold the Fan and Up buttons for approximately 3 seconds.


1. On the new screen two numbers will be displayed. Change the number on the left of the screen to 39 by pressing the Next button several times. Change the number on the right of the screen to 0 by pressing the Up or Down arrows. After setting the numbers, press Done when finished.

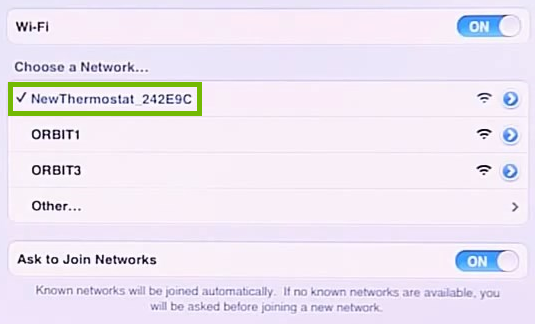

1. Using another device with Wi-Fi connect to a network called "NewThermostat_######" where # is a random character..


1. Once connected, navigate to 192.168.1.1 in a web browser.

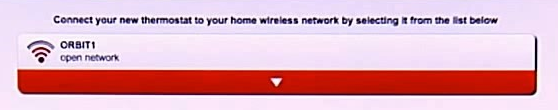

1. Select your Wi-Fi Network from the list.

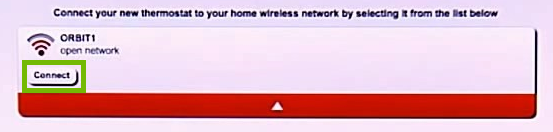

1. Click on Connect.


1. Enter your Wi-Fi Security Key when prompted.

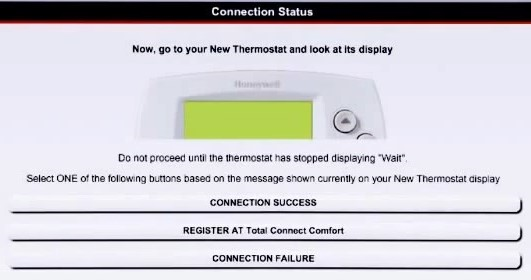

2. Go to your thermostat and look at its display. Do not proceed until the thermostat has stopped displaying "Wait".
3. Select one of the following buttons based on the message shown on your thermostat display:
4. Connection Successs
5. Register at Total Connect Comfort
6. Connection Failure


3. Check Other Devices

To help troubleshoot the problem we should check if other devices can connect to the wireless network.

4. Check Environment

If other wireless devices are connected to the network and functioning properly, chances are the router is OK. It's possible there is an environmental issue. Do you have a portable wireless device (Smart Phone, Tablet, Laptop, etc.) that you can put in the same area to test and see if that device's wireless connection still functions as intended in that location?

5. Power cycle

If you haven't already, please try power cycling the device you're working with. To do so, simply turn it off, wait 30 seconds and turn it back on again.

6. Honeywell: Supported Protocols

If you're unable to connect to Wi-Fi on your Honeywell Thermostat, you may need to change your Wi-Fi security. Please change your router settings to use one of the supported security settings above. If unsure how to do this, please contact the router manufacturer.

Honeywell’s Wi-Fi Thermostats are compatible with the following Wi-Fi security standards:

• OPEN
• WEP
• WPA TKIP
• WPA AES
• WPA2 MIXED
• WPA2 TKIP
• WPA2 AES

7. What's next?

8. Networking: Range Check

The device needs to be within a reasonable range of the router in order to connect and have the best connection speeds.

• In general, in most homes, you can be up to 30 feet from your router for a decent connection.
• From 30' to 50' away, the speeds will be slower, and may drop occasionally, but it should be usable.
• Greater than 50' away, and the signal will most likely be too weak to overcome interference. The speeds will be slow, and the connection may be sporadic.

The above numbers are approximates only. Optimal range may vary based on router make and model.

9. What's next?

10. Networking: Relocate Router Check

Your router may need to be relocated to a more centralized location in order to provide better coverage for all your devices.

Good Placement

Bad Placement

11. Router Relocation

Since this appears to be a range issue that can be resolved by putting the router in closer proximity to the device's intended use area, we recommend moving the router to a more centralized location.

12. Range Extender

If wireless signal is not reaching your device, and relocating your router or the device itself to be in closer proximity is not possible or doesn't resolve the issue, a great way to boost wireless signal without replacing existing equipment is to acquire and install a range extender. Range extenders work with your existing wireless router as a type of wireless repeater used to expand the reach of wireless signal in your home.
