How to Check Connection D-Link DAP1650 WiFi Repeater

Authored by: Support.com Tech Pro Team

1. Introduction

In This Guide

You'll Learn:

  • How to check the network status of your D-Link Range Extender.

You'll Need:

  • To be by your range extender or have a computer on hand.

2. Check Status

You can check the status of your D-Link DAP-1650 AC1200 Range Extender in one of two ways:

  • On the device itself,
  • On a computer.

The type and amount of network related information that you get depends on which method you use.

On Your Range Extender

  1. The indicator lights on the D-Link DAP-1650 AC1200 Wi-Fi range extender have the following meanings:
D-Link DAP-1650 with indicator lights

  1. Power LED (1):
  2. Solid Green
Solid green light.
  1. On and functioning properly.
  2. Blinking Green
Blinking green light.
  1. WPS has been pushed and searching for signal.
  2. Solid Orange
Solid orange light.
  1. Device is booting up.
  2. Blinking Orange
Blinking orange light.
  1. Device is in recovery mode.
  2. Internet LED (2):
  3. Solid Green
Solid green light.
  1. Successfully connected.
  2. Blinking Orange
Blinking orange light.
  1. A firmware upgrade is in progress.
  2. Off
Light is off.
  1. Device is being factory reset.

On Your Computer

  1. Launch the browser that you use to go online.
Main Desktop Browsers.
  1. Navigate to http://dlinkap.local and login with the admin password set on your range extender.
Address bar highlighted in internet browser.
  1. The Status tab will display the status or your range extender.

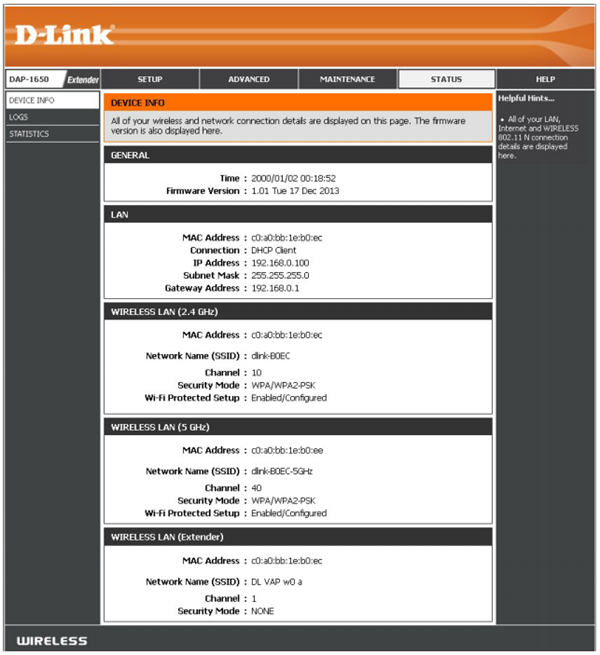

D-link DAP-1650 status

  1. The status will show the range extender's connection to the router.
