How to Set Up a Bose SoundLink Revolve Speaker

Authored by: Support.com Tech Pro Team

1. Introduction

This guide will walk you through the basic setup of your Bose SoundLink Resolve Bluetooth Speaker.

2. Connect Power

1. Connect the USB cable to the wall adapter, and to your speaker, then plug it in.


1. The battery light under the power button on the top will blink amber while charging, and stay on green when fully charged.

3. Pair Bluetooth

1. Push the Power Button on the top to turn the speaker on.


1. Push and hold the Bluetooth button till the Bluetooth LED flashes blue.


4. Pair Bluetooth Devices

Some Bluetooth accessories are configured with a PIN or a passkey that is often listed in its manual. Check your Bluetooth accessory manual for the correct PIN or passkey.

Depending on what device (Smartphone or Tablet) and which generation you have, the menu theme and options might look slightly different on your screen. However, the steps should be similar to all Android devices and generations.

Use one of the following connection methods:

• Method 1 - The Drop Down Menu
• Method 2 - Settings

Drop down menu

1. Swipe down from the top of the device screen if it's a phone or up from the bottom of the device screen if it's a tablet to access the menu.
2. Locate the Bluetooth icon.


1. Press and hold the Bluetooth icon.
2. Swipe the switch to your right to set the Bluetooth accessory in pairing/discovery mode.
3. A list of nearby devices and previously paired devices will be shown.
4. In the list of Available Devices, choose the Bluetooth accessory you wish to pair with.


1.


2. If you are prompted for a passkey, put it in. If there is no passkey, then your Bluetooth accessory should be paired now.

Android menu settings

1. Locate and tap the Apps Menu.


1. Locate and tap the Settings icon.


1. Select the Bluetooth. You may need to select Connections first.
2. Swipe the switch to your right to set the Bluetooth accessory in pairing/discovery mode.
3. A list of nearby devices and previously paired devices will be shown.
4. In the list of Available Devices, choose the Bluetooth accessory you wish to pair with.


1. If you are prompted for a passkey, put it in. If there is no passkey, then your Bluetooth accessory should be paired now.

5. Basic Controls

Common activities

• Change Language
• Push and hold the Multi-function Button and Volume Down till a language is announced on the speaker.
• Use Volume Up and Volume Down to scroll through the languages.
• Push and hold the Multi-function button to select the language.
• Clear Bluetooth Device List
• Push the Bluetooth button and hold it for 10 seconds.
• A voice prompt will let you know the list is cleared.
• Disable or Enable Voice Prompts
• Push and hold Volume Up and Volume Down till the speaker announces the voice prompts are on or off.

Basic Controls

Power ButtonTurn on or off your speaker.Bluetooth Button

• Push once when connected, the speaker will say the name of the Bluetooth device connected.
• Push and hold to enter pairing mode.

Volume DownDecrease volume.Multi-function ButtonThe Multi-function Button changes action, depending on what you are doing.

• Play / Pause, when listening to music.
• Answer an incoming call.
• Hang up a call in progress.
• When nothing is playing, the multi-function button will launch your smartphone's assistant (Google Assistant or Siri).

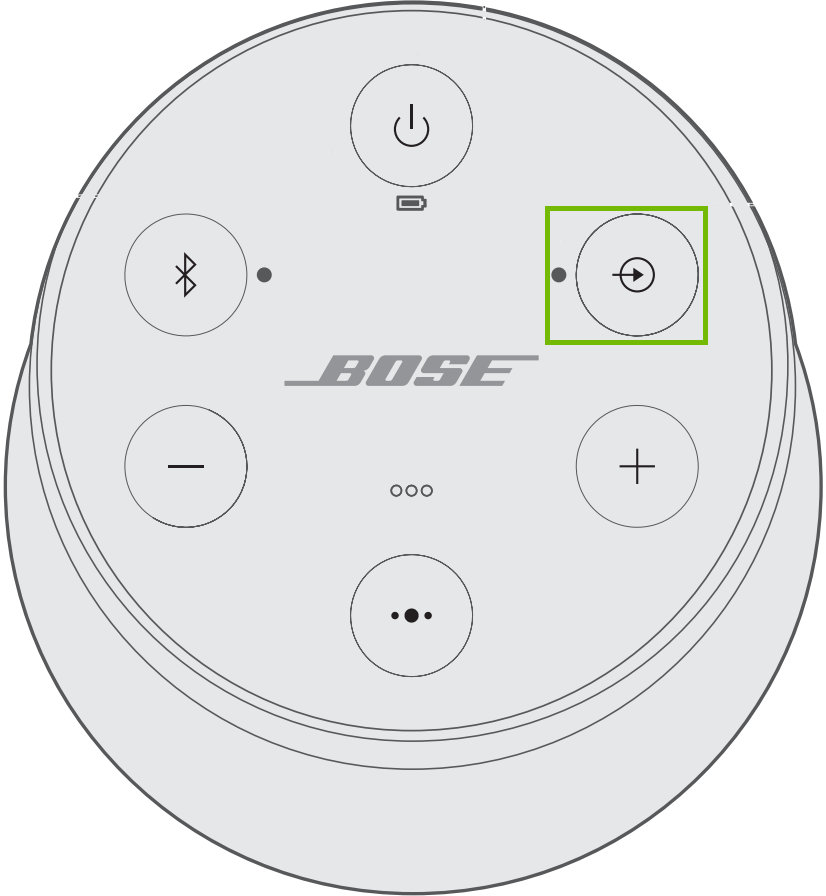

Volume UpIncrease volume.Input mode buttonChange the input for the speaker. For example, if you have 2 Bluetooth devices, a USB device, and a 3.5" audio connection to the speaker, you can switch between each.

6. Other Connections

Your Bose SoundLink Resolve can make other types of connections, as well.

• Mini-jack
• Connect a standard 3.5 mm mini-jack cable to the Aux-in port.


• If necessary, push the Input Mode button till the speaker announces "AUX Audio".

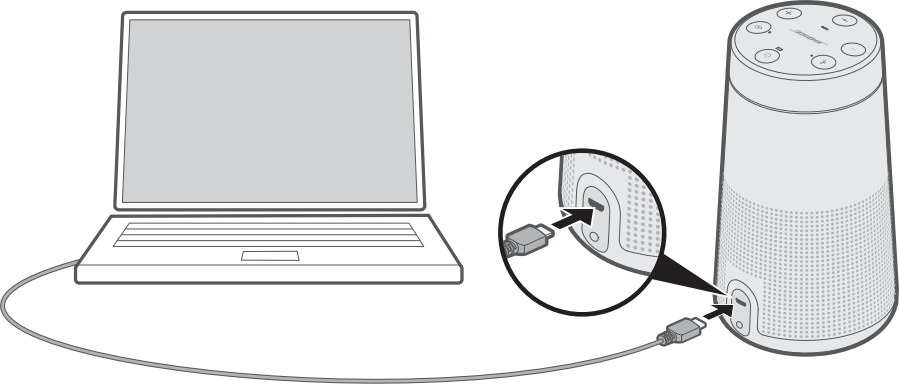

• USB Audio
• Connect a USB cable from your computer to the USB port.


• If necessary, push the Input Mode button till the speaker announces "AUX Audio".


7. Connect Bluetooth

Some Bluetooth accessories are configured with a PIN or a passkey that is often listed in its information manual. Check your Bluetooth accessory documentation for the correct PIN or passkey.

From any iOS device (iPod, iPad, iPhone):

1. Open Settings


1. Then Bluetooth.


1. Set the Bluetooth accessory in pairing/discovery mode.
2. Wait for your iOS device to display the detected Bluetooth accessory.


1. Select the Bluetooth accessory to pair it with the iOS device.
2. If there is a passkey, put it in.
3. If there is no passkey then your Bluetooth accessory should be paired now.
