How to Set Up a LG LHB675 BluRay Home Theater System

Authored by: Support.com Tech Pro Team

1. Basic Home Theater Setup

Setting up your own home theater can be incredibly rewarding, and provide an experience close to, and sometimes better than going to the cinema.

This guide will give you the tools and knowledge you need to create the setup at home you've always wanted, bringing your movie and television experience to the next level.

Picture of an example home theater setup

This guide will walk you though the basic setup of your LG LHB675 home theater system.

2. Terminology

Like any hobby or job, there's a lot of very technical terms used to describe the various elements of a home theater system. Because of this, this guide cannot be exhaustive, but we'll be focused on a few, common terms you'll be encountering throughout this process.

Source

Something that generates audio or video. Your Blu-Ray player is a source of audio and video for the movies you play on it. Your cable box is a source of audio and video for television, and so on.

example media device

Output

This is where the device creates signal to go to another device. For example, the HDMI port on the back of your Blu-Ray player is an output that sends its picture to whatever it is plugged into.

Example of output sources of a media device

Input

This is where a device accepts signal from another device. For example, the HDMI ports on the back of your television are inputs that accept the signal your Blu-Ray player is sending to it.

Device inputs

Receiver or Tuner

This is the 'hub', or the central point all of your equipment connects to. Your Receiver will take in inputs from various sources, and route them to various outputs. For example, you connect your game console to your receiver, and your receiver plays the sound through the speakers connected to it, and displays the video on the television which is also connected to it.

Receiver

HDMI

Common type of cable used to connect home theater equipment. Stands for "High Definition Multimedia Interface"

Example HDMI cable
Example HDMI Port

RCA or Composite

Common type of cable used to connect home theater equipment. Named after the Radio Corporation of America. Used mostly for audio, and older video equipment.

Example RCA or composite cables
Example RCA or composite ports

Optical

Common type of cable and connection for home theater equipment. Sometimes called TOSLINK or Digital Optical. It is a fiber-optic cable for audio.

example optical cable
example optical port

Coax

Common type of cable to connect from your antenna, satellite dish, or cable provider to your decoder box.

Example Coaxial cable
Example Coaxial port

3. Documentation

At first, setting up a home theater can be daunting, but a little careful planning can go a very long way in making it a fun, easy, and rewarding experience.

Write down what you have

To start, make a list of every device you have that you'd like connected to your home theater system. While this seems silly at first, it keeps you really organized later, making the actual setup a snap.

It's also helpful if you run into problems. If your Smart TV starts having problems, and you need to call for help, moving it to look behind is a hassle. Simply glancing at a single sheet of paper with everything written down makes it a lot easier.

For each device, you'll want the following information:

  • What the device is, its make and model, the type of connections it accepts, and the type of connections it makes. For example:
  • Device #1
    TypeA/V ReceiverMake/ModelLG LHB675Input Connection(s)HDMI, RCA, OpticalOutput Connection(s)HDMI, RCA, Speakers
  • Device #2
    TypeTVMake/ModelSamsung UN40MU6300Input Connection(s)HDMIOutput Connection(s)Optical
  • Device #3
    TypeBlu-Ray PlayerMake/ModelPanasonic
    DMP-UB700Input Connection(s)NoneOutput Connection(s)HDMI
  • Device #4
    TypeGame ConsoleMake/ModelNintendo SwitchInput Connection(s)NoneOutput Connection(s)HDMI
  • Device #5
    TypeRecord PlayerMake/ModelAudio-Technica
    AT-LP60Input Connection(s)NoneOutput Connection(s)RCA
  • Device #6
    TypeCable BoxMake/ModelArris XG1v3Input Connection(s)CoaxialOutput Connection(s)HDMI

This lets you easy look through, count up the cables you need, decide what is going where when it's time to connect everything, and generally organize your setup.

Draw a diagram

While this, too, can seem silly at first, it is key to understanding how everything connects. The best installers at movie theaters all have a 'map' drawn up simply showing where each part is, and where it goes. When it comes to troubleshooting, adding a new device, or taking one away later, this will be the single most helpful document you have.

It can be as simple or as complex as you feel you need. In most cases, for a home theater, simple pictures of your receiver at the center, and each device around it with colored, labeled lines indicating the type, input and output, and further to your speakers is all you should need.

example diagram of layout of home theater system

4. Power Requirements

While you simply need to power every device in your home theater setup, thinking about how to protect your investment from power surges is also something to consider.

This is an area where a little planning goes a very long way:

  • How many devices will you be connecting?
  • If you have six total devices, a small four plug power strip will not suffice.
  • Will you want to expand and add more devices later?
  • Most people will end up adding to and expanding with more devices in the future. You'll want to have extra outlets available to accommodate your future needs.
  • Do you want an easy way to turn on and off your whole setup?
  • Some power delivery devices will have front-facing power switches, or readouts for how power delivery is happening.
  • What shape of plugs do you have?
  • While most devices have moved away from the large, boxy AC to DC adapters that stick out of the wall or hang off the socket, they can still pose a problem. Depending on the type of power delivery accessory you choose, these types of plugs might interfere with neighboring outlets. Some power delivery device manufacturers have taken this into account, and rotated the plugs to make it less of an issue.

All power delivery devices wear out over time. Some may wear out more slowly, but expect to have to replace this part of your system every couple of years to avoid problems.

Different types of Power Protection

There are 3 different types of power distribution and protection devices.

It can be extremely dangerous to connect one power delivery device to another, or 'daisy-chain' them. Always plug these devices directly into a wall outlet, and not into another power delivery device.

Outlet Duplicator / Power Strip

Power Strip
  • Very low cost.
  • Minimal, if any, protection. Most power surges are just passed through to your equipment which can damage or ultimately destroy them. Some models have a small fuse in them which is destroyed when a particularly strong surge occurs.

Surge Protectors

Surge Protector
  • Average cost.
  • Provides decent protection to your devices. Some of these types tend to offer some extra protection as well for cable lines or networking lines. Many come with simple warranties that protect against power surge damage should your devices incur any while connected to one of these.

Power Conditioners

Power Conditioner
  • Very high cost.
  • Provides not only decent protection, but also 'conditions' the power, so there's little if any noise or power fluctuations introduced to your equipment. While subjective and very dependent on what is coming to your equipment in the first place, some people feel it can help with picture and sound quality.
  • These tend to be aesthetically pleasing, and integrate well with modern home theater and surround sound setups.

5. Speaker Setup

Most speakers will use very standard, simple 2-wire cables to connect them to your receiver.

Speaker Wire
  • Speaker wire has a polarity. In other words, it matters which side plugs in where. Most speaker wire will already be in a bundle of 2, and one of the cables will be a different color, or have a stripe of color or a label of some sort so you can identify them easily.
  • You will need one 'run' of cable (both wires) for each speaker. Make sure it is long enough to not only reach, but follow the contours of your room, and some extra for slack. This keeps them from being accidentally pulled out.
  • Depending on the model of the receiver you are using, the type of terminal you will plug your speaker wire into may vary.
  • Many receivers and speakers may allow for you to use something called banana plugs, which can be attached to the speaker wires before plugging them in to give a cleaner, easier to use, and more permanent solution for connecting your speakers to your receiver.


6. Speaker Connection

  1. Connect the wires to the unit by matching the wire's color band to the connection terminal on the rear of the unit. The black striped wires will plug into the (-) terminal.
Illustration of how to plug in the speaker wire to the back of the receiver

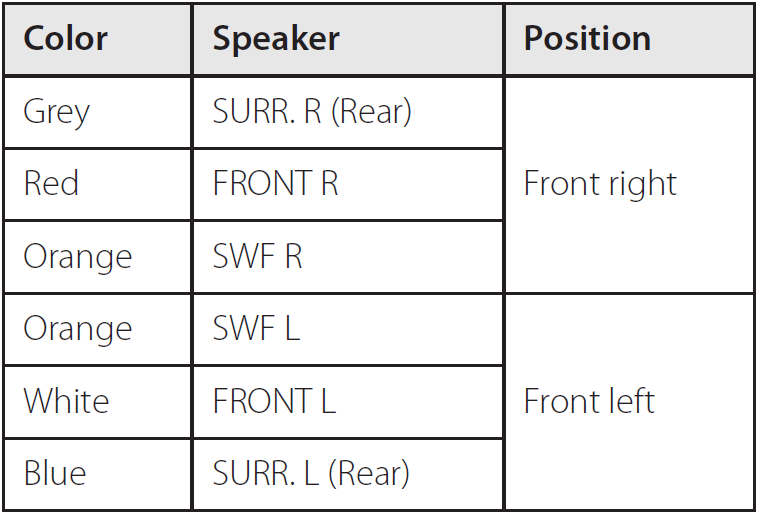

Chart showing speaker wire color and with speaker and position
  1. Connect the Woofer cord to the player. When inserted correctly it will click.

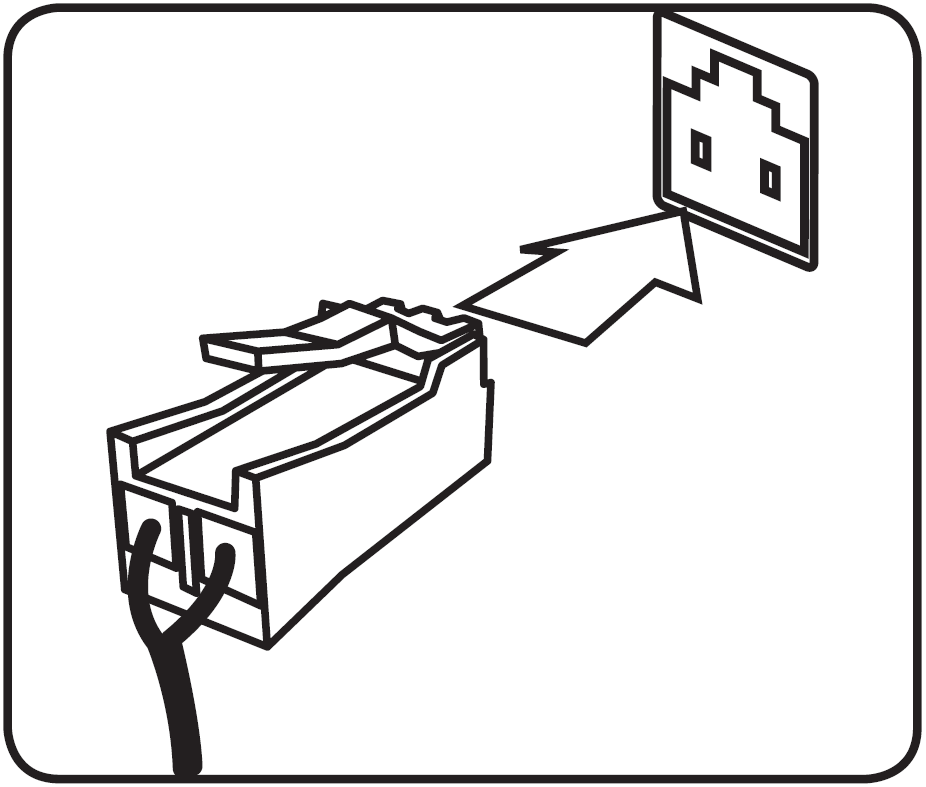

Illustration of how to plug in the sub woofer to the back of the receiver

7. Display Setup

  1. In most cases, most people prefer to use the simple, excellent HDMI connection between their home theater receiver and their TV. Plug one end into the back of your TV.
example h d m i cable being plugged into h d m i port

  1. Many TVs have multiple HDMI ports. Your receiver is going to control all of this, now. Just use the port for HDMI 1.
  2. Plug the HDMI cable into the back of the player and the other end into your TV.

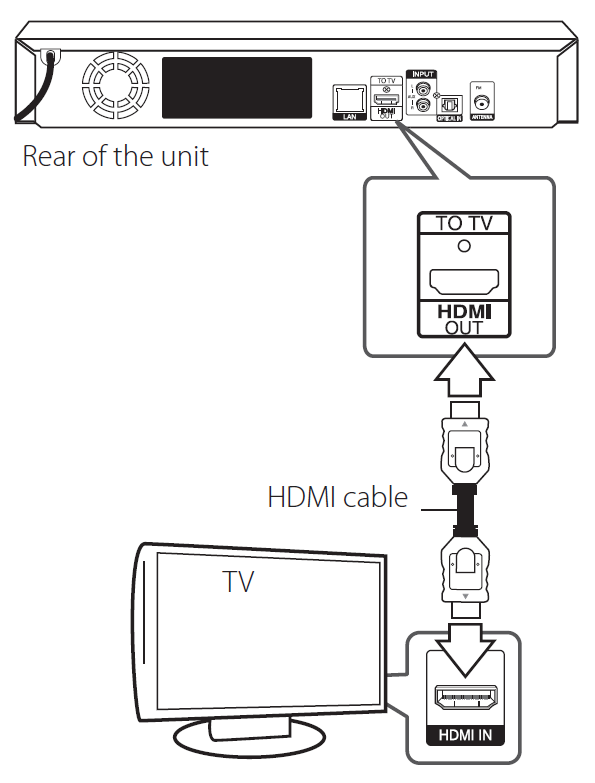

Picture of receiver and tv with an HDMI cable plugged into each

8. Source Connection

  1. Connect each of your sources (Blu-ray, cable box, game console, etc.) to the appropriate connector on the back of your receiver.
example receiver with r c a cable plugged into it and other end being plugged into source unit

example receiver with optical cable plugged into it and other end being plugged into source unit

9. Networking

Most home theater equipment now has the ability to connect to your home network, and provide content from the Internet.

From your Smart TV showing Netflix, to your game console that can play games with people across the world, to your Blu-ray player retrieving additional content for different movies, or even Internet radio stations on your receiver, it's a good idea to plan ahead for your Internet-enabled home theater system.

  • Many devices can make Wi-Fi connections. This usually works just fine, but just like any other Wi-Fi device, it can end up with interference that can cause stuttering, lower picture quality, or a complete inability to play. If possible, it's always a great idea to consider setting up a hard-wired Ethernet connection for your devices. Also, this tends to be easier; no passwords to remember, just another wire to plug in.Ethernet Cable
Ethernet cable
  • Ethernet Port
Ethernet port
  •
  • Look for an Ethernet port on the back of your Internet-enabled devices. If you see one, you don't have to use Wi-Fi to connect it to your home network. You can use that wired connection to provide faster, easier setup.
  • To make things even easier, you can use a network switch to connect everything with one cable back to your router.
Network switch

  • These are small boxes that basically give you more Ethernet ports for the back of your router. The benefit here would be that you'd connect all of your home theater devices to the switch, then have only one Ethernet cable connecting your switch to your router, giving you the most reliable connection possible for all of your connected home theater devices.

10. Network Connection

  1. If you are using a wired connection for your network devices, connect the Ethernet wires from each to your switch, and to your home router.

Establishing an Ethernet connection

11. Coax Connections

  1. Connect the coax cable from your premium television provider to your cable or satellite decoder.
example cable box with cable in port highlighted
  1. If you're using one, connect the coax cable from your outdoor antenna to your receiver for FM radio signals.

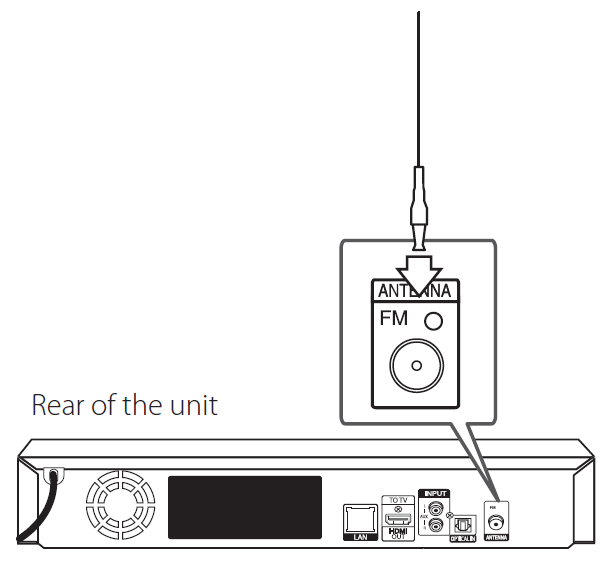

FM cable with showing where to plug it in on the back of the receiver

12. Insert Battery

Remove the cover off of the remote and insert a AAA battery. Be sure to match the positive (+) and negative (-) symbols.

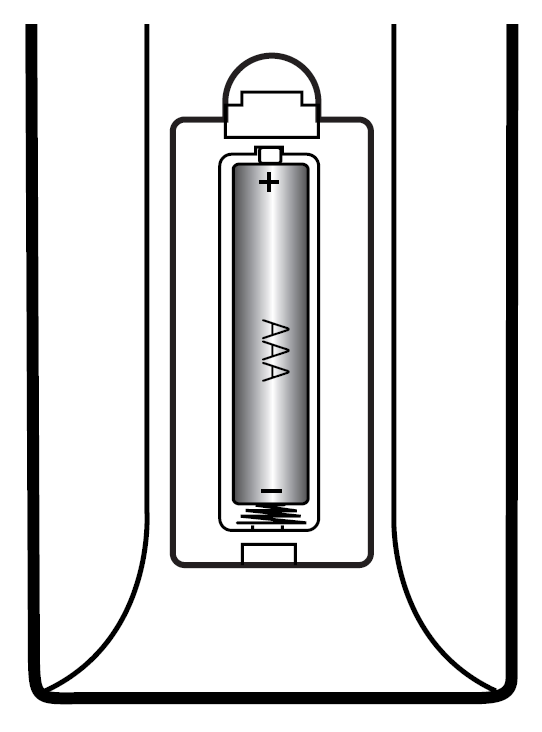

Remote showing where battery is inserted and the correct direction to place the battery

13. Initial Setup

Use the remote to complete the following steps:

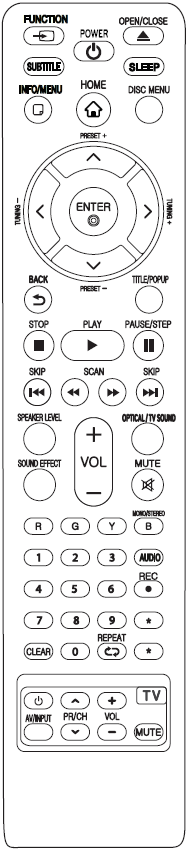

Remote Control
  1. Press the Power button.
  2. Use the arrows to select your language and hit the Enter button.

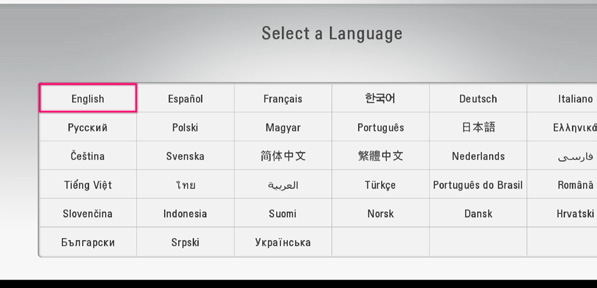

screen in which you select your language
  1. After reading the Terms of Service, select Agree and hit the Enter button.
  2. If you didn't connect an Ethernet cable earlier, please do so now. Connect an Ethernet cable from the player to a router or switch.
example network setup
  1. Press the Enter button to select Start.

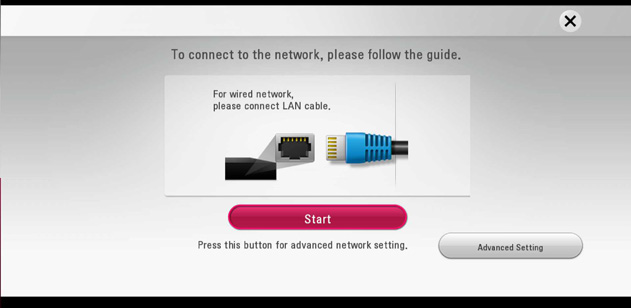

screen indicating to plug in your Ethernet network cable and a start button
  1. Network will be automatically configured. Press Enter to select OK.

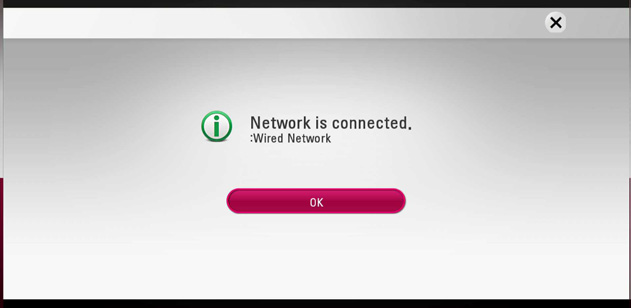

screen showing network is connected and OK button

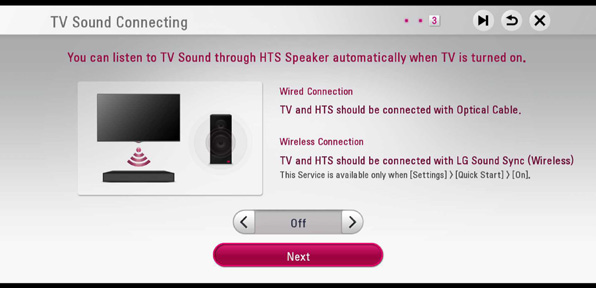

  1. You will be asked if you want to use the HTS speaker automatically when the TV is turned on. Choose your preference using the arrows and then select Next and hit the Enter button.
screen asking if you want to use HTS speakers automatically after you TV is turned on with on off option and next button
  1. Setup is now complete. Press the Enter button to finish.

14. Set Resolution

Use the remote to complete the following steps:

remote control
  1. Hit the Home button on the remote.
  2. Use the left and right arrows to select Settings and hit the Enter button.

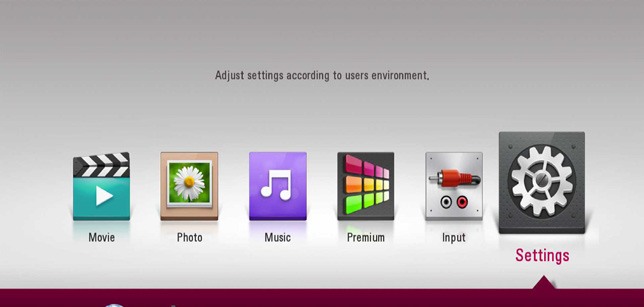

Home screen with settings selected
  1. Use the arrows to select Display and press the right arrow.
  2. Use the up and down arrows to select Resolution and press the Enter button.

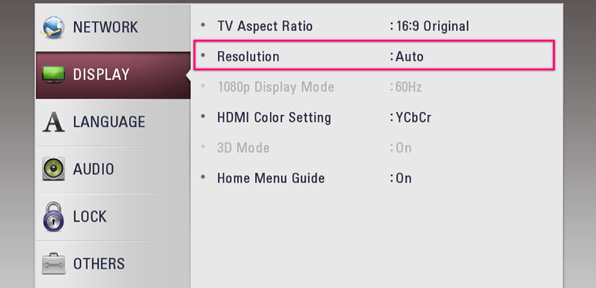

settings menu with display catigory selected and resolution menu item highlighted
  1. Use the up and down arrows to select the desired resolution and then press the Enter button.

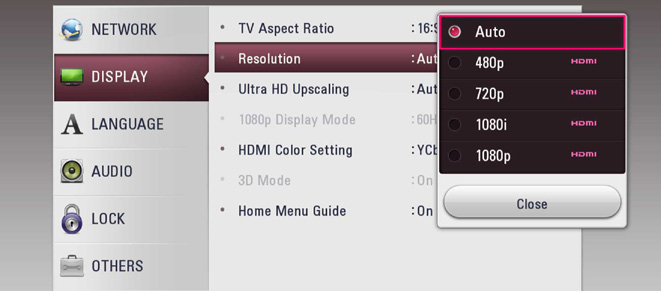

resolution menu with box showing different resolutions that are available


15. Test Devices

  • Turn on your home theater devices, and test them out.
  • Make sure you can watch premium TV.
  • Make sure you can watch a Blu-ray movie.
  • Make sure your game console works.
  • Make sure any audio devices, such as a record player, work.
  • Make sure the speakers are in the correct locations.
  • Test any other device you have setup as part of your home theater.

It is critical to perform this step before moving forward, as we will be cleaning up the cables behind, next. After this, while it is entirely possible to make changes, it is a much greater hassle.

16. Cable Management

We can now begin bundling together and making the cables behind your system neat and tidy.

You can use one, or multiple different methods to give the look, and accessibility you want to the wiring of your home theater system.

Cable bundling

Cable bundling will most likely be the first step in cleaning up the cables from your home theater installation.

Cable Ties

  • Sometimes called zip ties, these are plastic, with a groove on one side, and a simple locking mechanism on the other. After securing the cables, cut off the remaining end of the cable tie. Given their incredibly low price, they are disposable. When you need to add another cable, you cut the old one off, and just use a new one.
Cable ties

Velcro Straps

  • Much like cable ties, a simple Velcro strap has hooks on one side, felt on the other. The benefit is they can be easily un-bundled or added to, without cutting the strip and having to use another.
Velcro strip around a cable

Raceways

  • Sometimes called cable tunnels, these are for where cables are exposed, such as between your television and receiver, or going to your speakers. They place a cover over your cables to hide them in an aesthetically pleasing way. Many have little notches to lock your cables into.
Raceway

Leave slack at your bundle points.
Do not tighten down any strap too much, you want some give and movement in case something shifts, and you don't want to accidentally cut, bend, crimp, or otherwise damage your cables.

Adhesive Pads
Small, sticky pads to attach your bundles to. Some come built into various straps or ties, some are reusable, such as adhesive putty.

Do not bundle power cables with any other cables.
Power, by its very nature, creates an electromagnetic field when flowing through a cable. This can severely degrade quality for other cables they are bundled with, especially speaker wire. It's best to keep these as far away from other cables as possible, in their own bundle, for example.

Label Everything

During your bundling process, it's often a good idea to use small labels near the ends of each cable, just in case you need to disconnect something in the future. You can use a label printer to make these, but a small strip of masking tape works just as well.

For example, on your Blu-ray player's HDMI cable, a little loop of tape saying "Blu-ray" where it connects to your Blu-ray player, and where it connects to the receiver, can help you immensely should you replace the player, or the receiver, somewhere down the line. Likewise for power cables.
