How to Set Up a Vivint Ping Security Camera

Authored by:
Support.com Tech Pro Team
This Guided Path® was written and reviewed by Support.com’s Tech Pro team. With decades of experience, our Tech Pros are passionate about making technology work for you. We love feedback! Let us know what you think about this Guided Path® by rating it at the end.

In this Guided Path, we'll learn how to set up a Vivint Ping Security Camera. We'll also go over how to replace or remove a camera if you already have one installed. Installation is pretty quick and should take you anywhere between five and ten minutes.

Before You Begin/Tools You'll Need:
  • Your new Ping camera
  • A screwdriver and drill (if applicable)
  • The included screws and/or drywall plugs
  • The magnetic base plate included with the camera
  • The included AC adapter

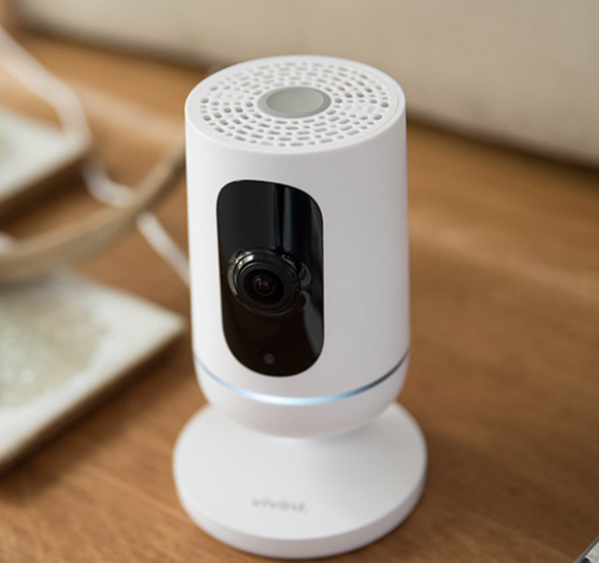

Vivint Ping camera

? Are you replacing an existing camera or setting up a new one?

  1. How to remove an existing camera
  2. How to set up a new camera

We're here to help!

Connect to a Tech Pro

Call or chat with a Tech Pro 24/7.

In this Guided Path, we'll learn how to set up a Vivint Ping Security Camera. We'll also go over how to replace or remove a camera if you already have one installed. Installation is pretty quick and should take you anywhere between five and ten minutes.

Before You Begin/Tools You'll Need:
  • Your new Ping camera
  • A screwdriver and drill (if applicable)
  • The included screws and/or drywall plugs
  • The magnetic base plate included with the camera
  • The included AC adapter
Vivint Ping camera

We'll first have to delete the existing camera from the Vivint app.

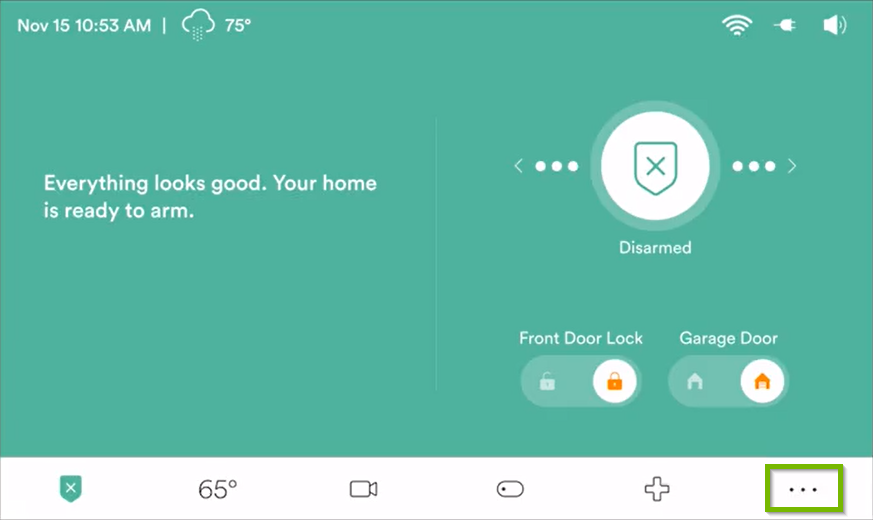

  1. Go to your Panel and tap the Menu button
    Vivint menu

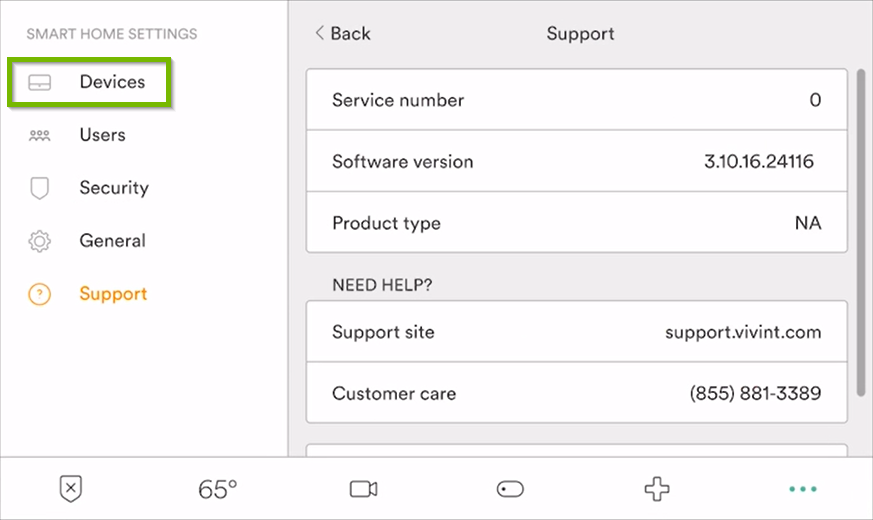

  2. Tap on Devices. You may be asked to enter in your PIN to unlock access.
    Smart Home Settings menu
  3. Tap on Cameras, then tap on the camera you want to remove.
    Smart Home Settings menu
    Smart Home Settings menu

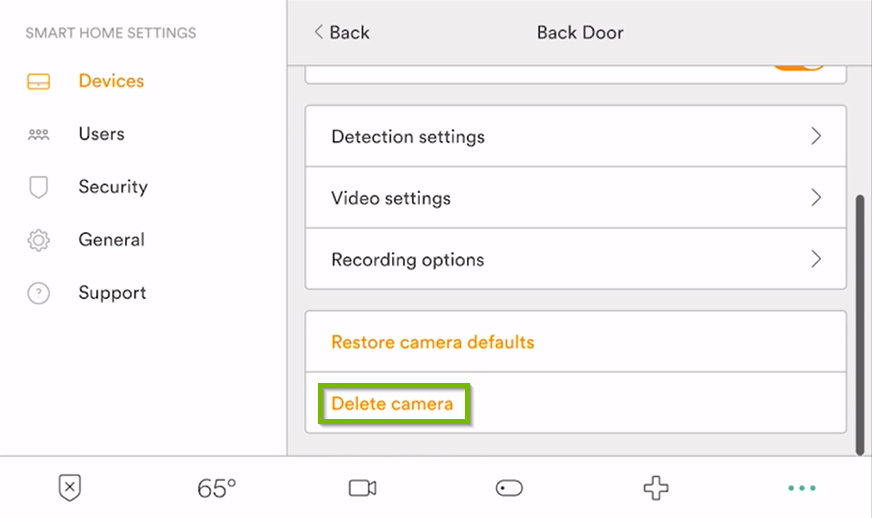

  4. Scroll down to the bottom of the menu and tap on Delete camera. You'll be asked to confirm deletion.
    Smart Home Settings menu>

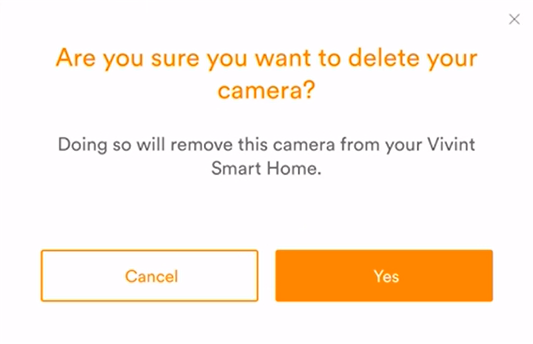

    Confirmation screen
  5. Now unplug and unmount the existing camera (if applicable).

When choosing the location for your new camera, pick a location close to your Vivint panel. You'll generally want to keep within 200 feet of it. Line of sight is preferable, so try to avoid obstructions if possible.

The supplied AC/DC power supply is approximately 10 feet long. You should place the camera near a power outlet when possible. If there is no outlet nearby, you can purchase a power supply with a longer cable. You will need a power supply rated at 12VDC, 1.5A.

  1. Use the included mounting hardware to install your new camera.
  2. Once you've mounted your Ping camera, plug the AC adapter into the back of the unit and plug your AC adapter into the wall. It will take a few minutes for the camera to boot up.

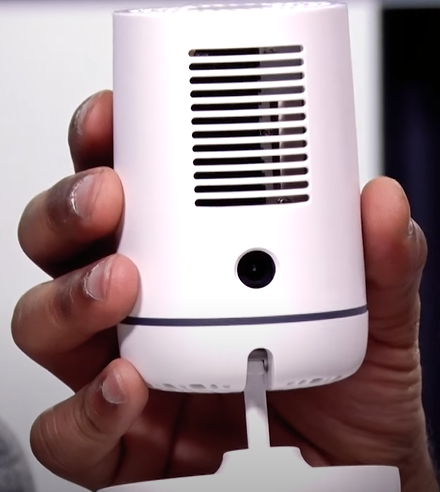

    Back of Ping camera
  3. Go to your Panel and tap the Menu button.
    Smart Security panel
  4. Tap Devices. You may be asked to enter in your PIN to unlock access.
    Smart Home Settings

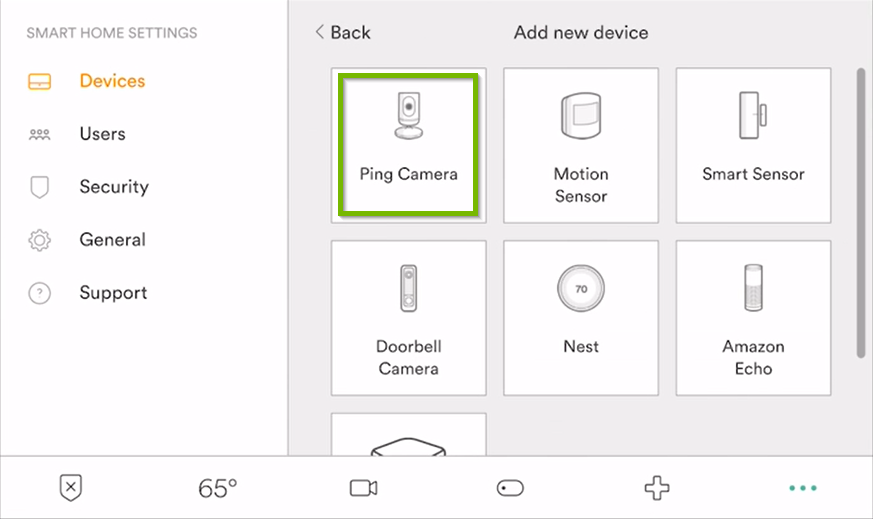

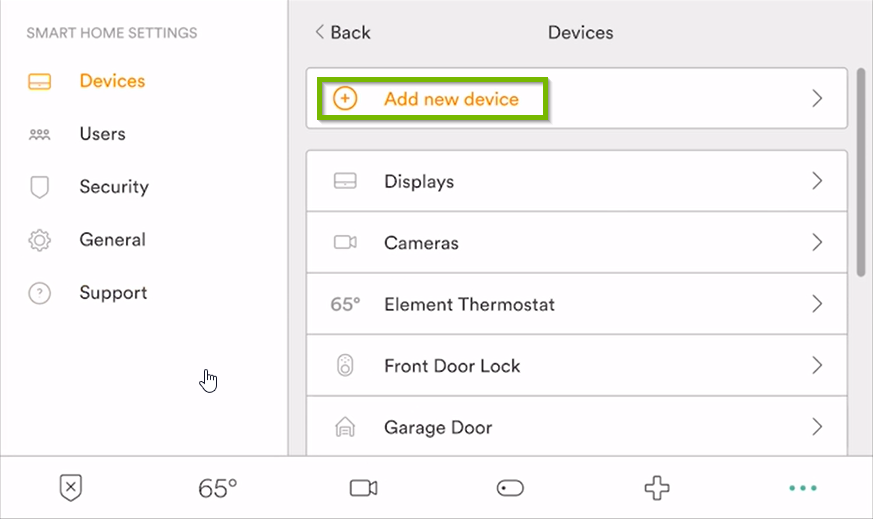

  5. Tap Add new device, then tap Ping Camera.
    Smart Security menu
    Smart Security settings
  6. Follow the prompts that you see on the panel to continue.

Camera signal strength should be at 70% or greater. Anything below 70% may result in dropouts. To increase signal strength, try removing obstructions. If that isn't possible, then you may have to relocate your camera.

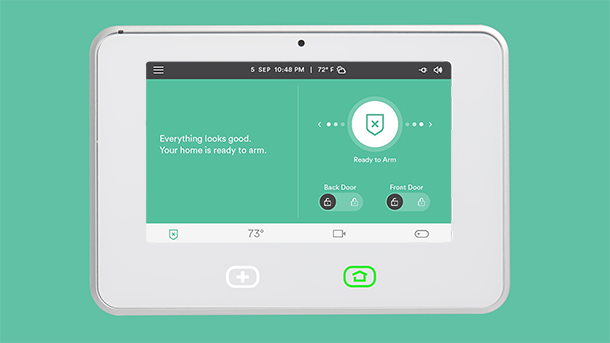

  1. Go to the SkyControl panel and tap the camera icon.
    SkyControl Panel

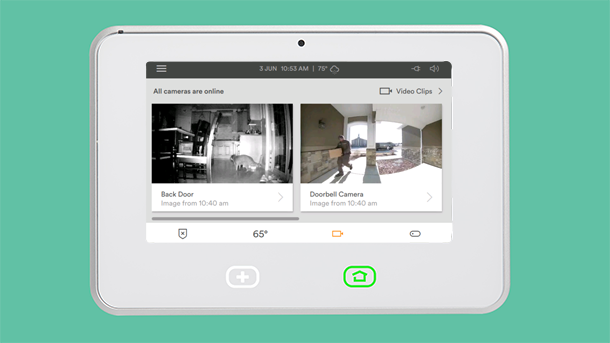

  2. Find your camera in the list and tap the Play button on the thumbnail. You'll then get a live video stream from the camera.
    SkyControl panel cameras

Resetting your Ping camera to factory defaults takes around three to five minutes to complete. Follow the steps below.

  1. Grip the camera and unplug power from the rear.
    Unplug the camera

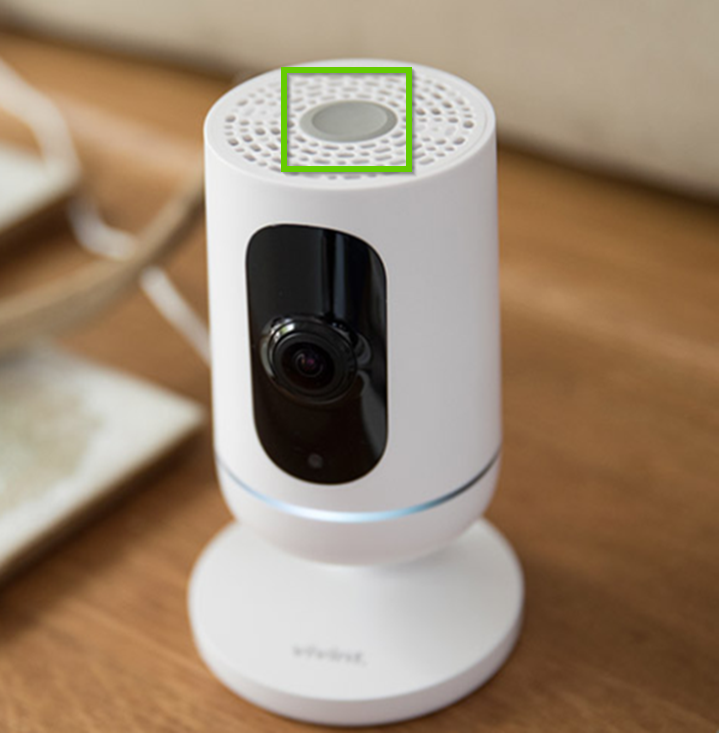

  2. Press and hold the top button.
    The button.

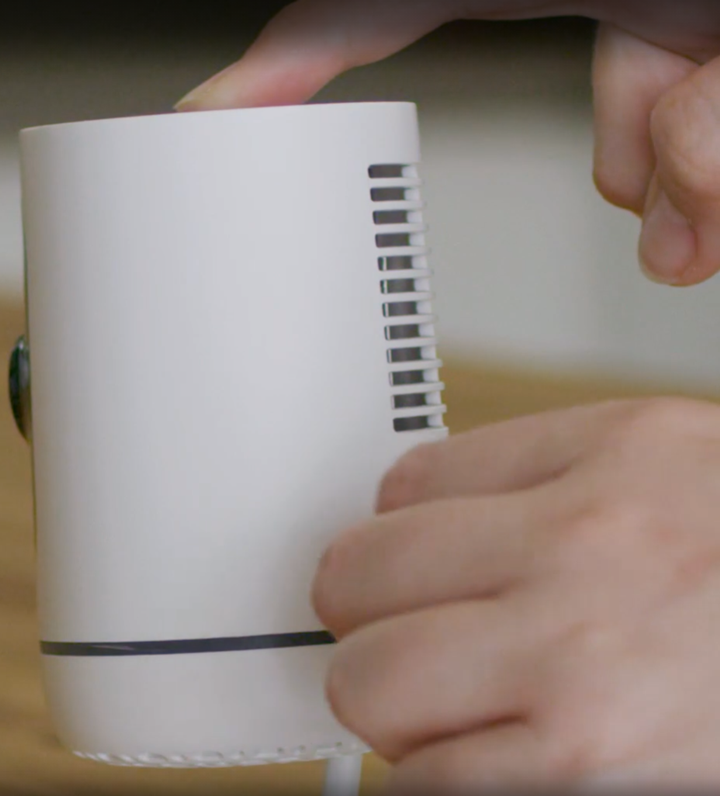

  3. While holding the top button, plug the power back into the camera.
    while holding down the button, plug the camera back in.

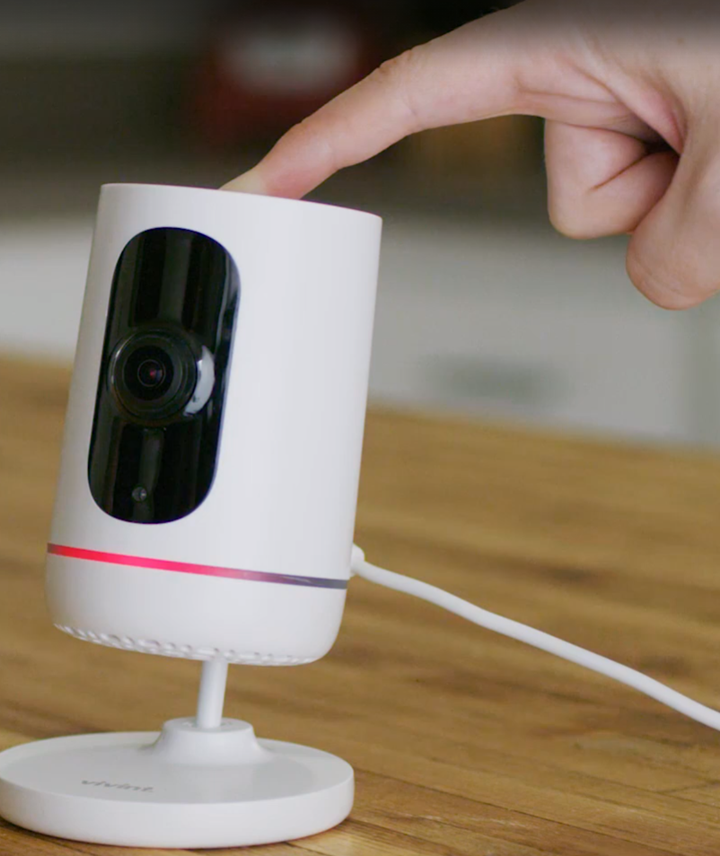

  4. Continue to hold the button for another 20-45 seconds. Let go once the light turns red.
    Hold button. Red light.
  5. The camera will cycle through a series of lights for around two minutes.

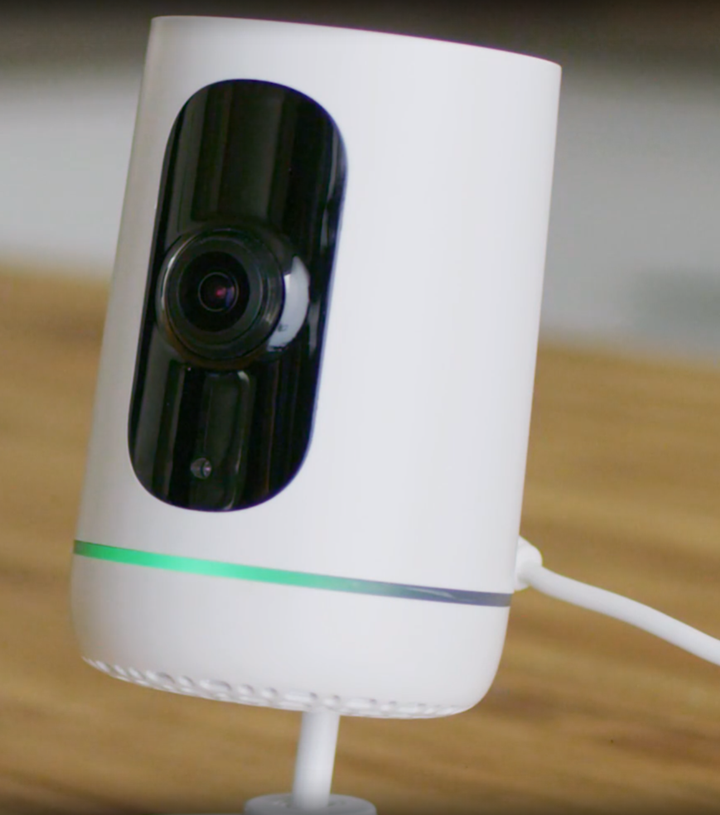

  6. Once the light turns green, the camera will announce that it is ready to re-connect to the Vivint system.
    Green.
  7. Try setting the camera again as described in the prior steps.

Camera signal strength should be at 70% or greater. Anything below 70% may result in dropouts. To increase signal strength, try removing obstructions. If that isn't possible, then you may have to relocate your camera.

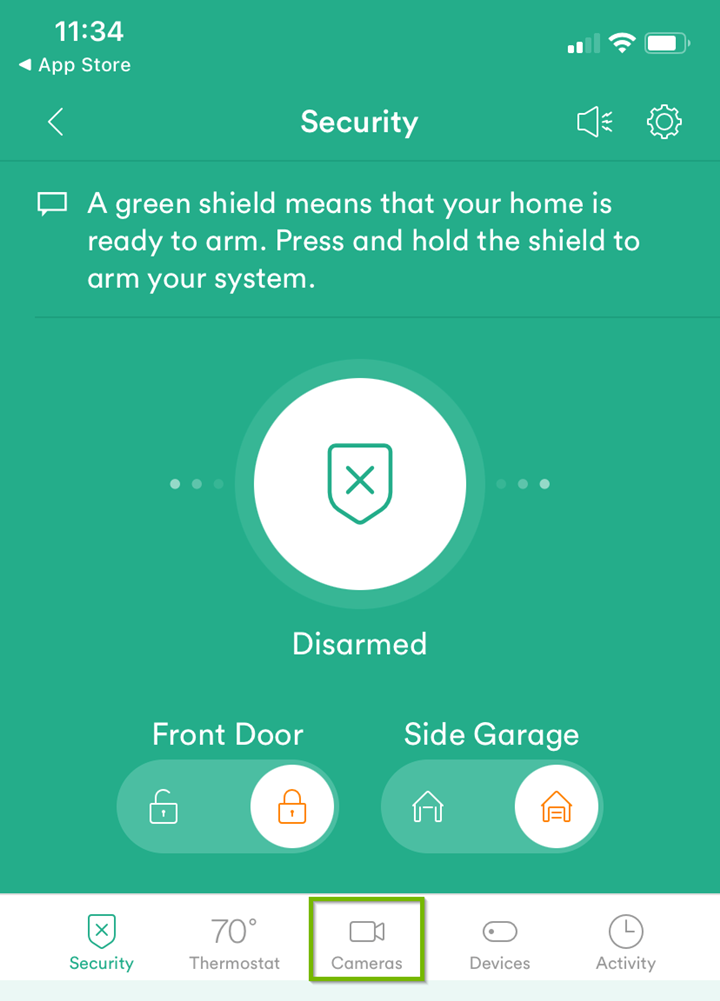

  1. Open the Vivint app and tap the camera icon.
    vivint app screen

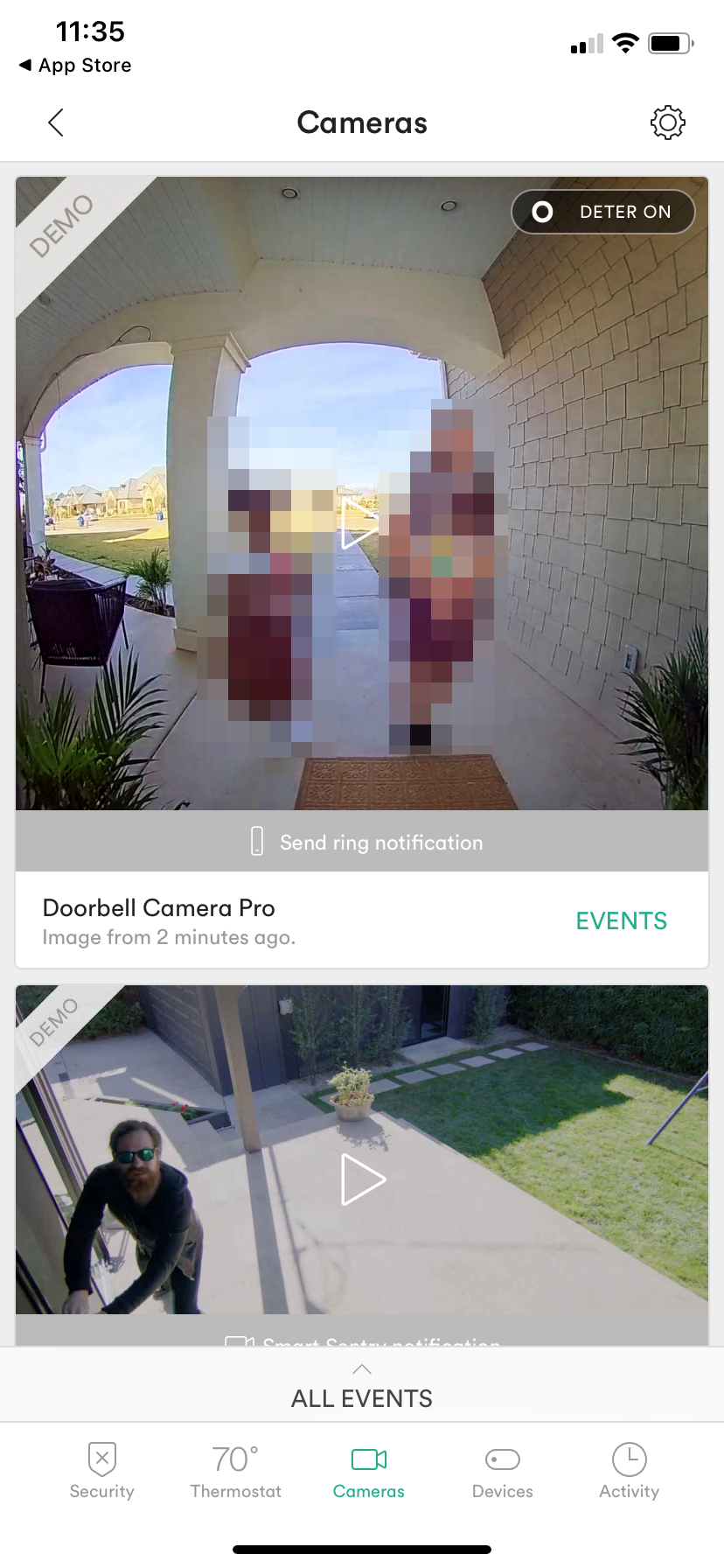

  2. Find your camera in the list and tap the Play button on the thumbnail. You'll then get a live video stream from the camera.
    Vivint Ping Camera View
