Introduction
- Perform basic installation of your Wally home sensing system.
- Install and connect the system to the Wally app.
- Have your Wi-Fi credentials handy.
- Have your Wally home sensing system unboxed.
1 Hub Setup
- Turn your Wally Hub upside down.

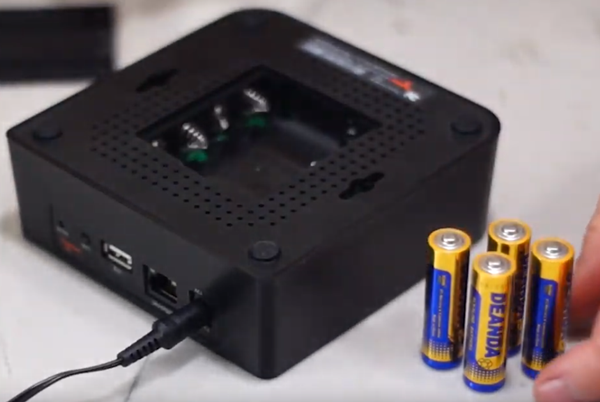

- Remove the battery cover.
- Insert four AA batteries following the orientation markings.
- Replace the battery cover and turn the hub back over.
With batteries inserted, your Wally Hub will use battery power if it loses power from the AC adapter.

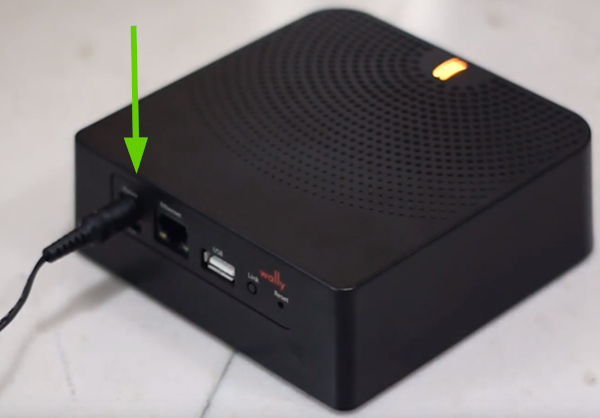

- Plug the power adapter into your Wally Hub, then connect the opposite end into an available wall outlet.
2 OS Choice
To continue, we need to know what Operating System your smartphone or tablet has.
There are 2 main Operating Systems for smartphones currently available, Android and iOS.
Android Smartphone | iOS Smartphone |
---|---|
Android smartphones are produced by multiple companies, such as Samsung, LG, Motorola, HTC, and OnePlus. | Apple is the only company that makes iOS smartphones. |
![]() |
![]() |
? What type of mobile device are you using?
- Perform basic installation of your Wally home sensing system.
- Install and connect the system to the Wally app.
- Have your Wi-Fi credentials handy.
- Have your Wally home sensing system unboxed.
- Turn your Wally Hub upside down.
- Remove the battery cover.
- Insert four AA batteries following the orientation markings.
- Replace the battery cover and turn the hub back over.
With batteries inserted, your Wally Hub will use battery power if it loses power from the AC adapter.
- Plug the power adapter into your Wally Hub, then connect the opposite end into an available wall outlet.
To continue, we need to know what Operating System your smartphone or tablet has.
There are 2 main Operating Systems for smartphones currently available, Android and iOS.
Android Smartphone | iOS Smartphone |
---|---|
Android smartphones are produced by multiple companies, such as Samsung, LG, Motorola, HTC, and OnePlus. | Apple is the only company that makes iOS smartphones. |
![]() |
![]() |
- Open the App Store.
- Select Search in the bottom right corner.
- Type Wally - Home Sensor Network in the search bar.
- Search for the Wally - Home Sensor Network app from the list and tap the Get button.
If you have previously downloaded the app in the past, press the cloud icon to download the app. You will not be prompted to tap on the Install button.
- Tap on Install.
- Tap on Open.
- Open the Wally app from your home screen.
- Tap Continue.
- Read the disclosure and then tap on Agree.
- Enter your Wally username and password and then tap on the Log In button.
- Tap Notify Me to receive app notifications.
If you do not wish to receive app notifications, you may instead click Not Now.
<
- Tap Allow.

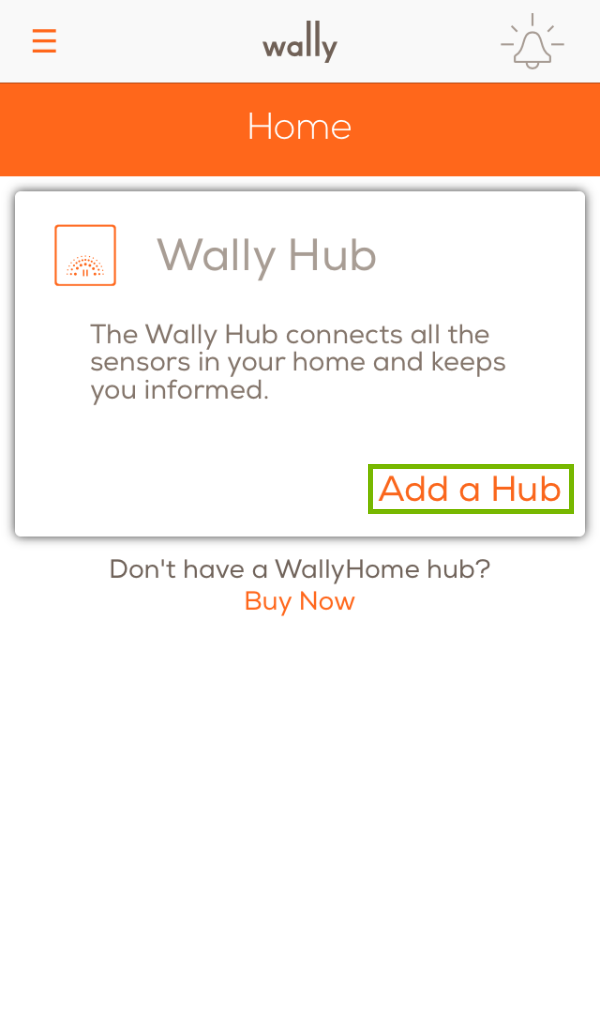

- Tap on Add a Hub.

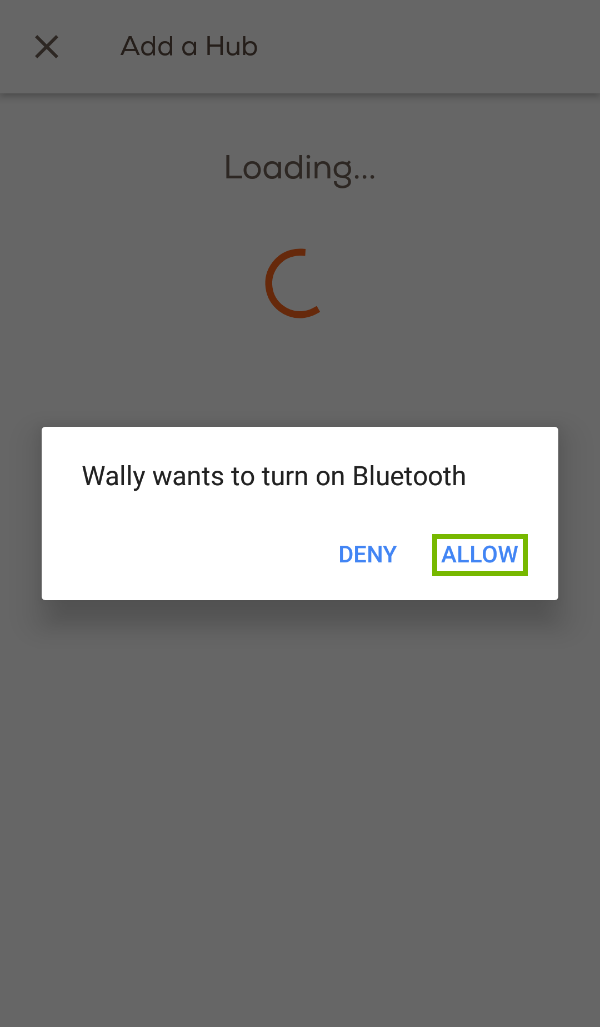

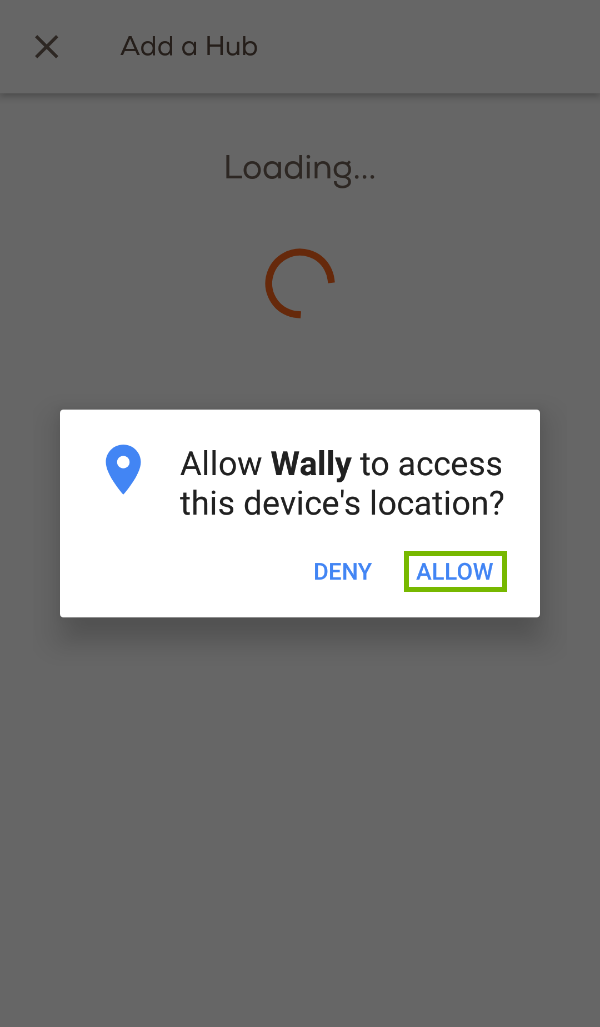

On the first time setup you may be prompted for device permissions for Bluetooth, or Location. Choose the option to allow these changes.

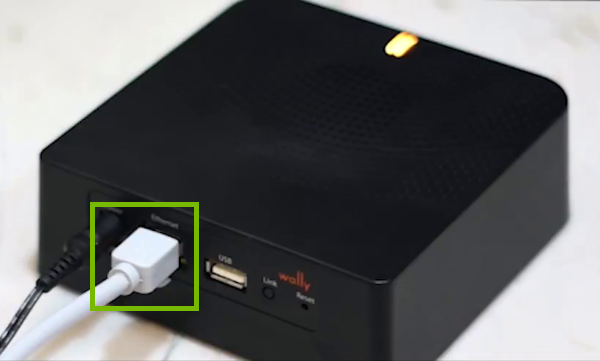

- Plug in your Ethernet cable into your Wally hub and the other end into your router or switch.

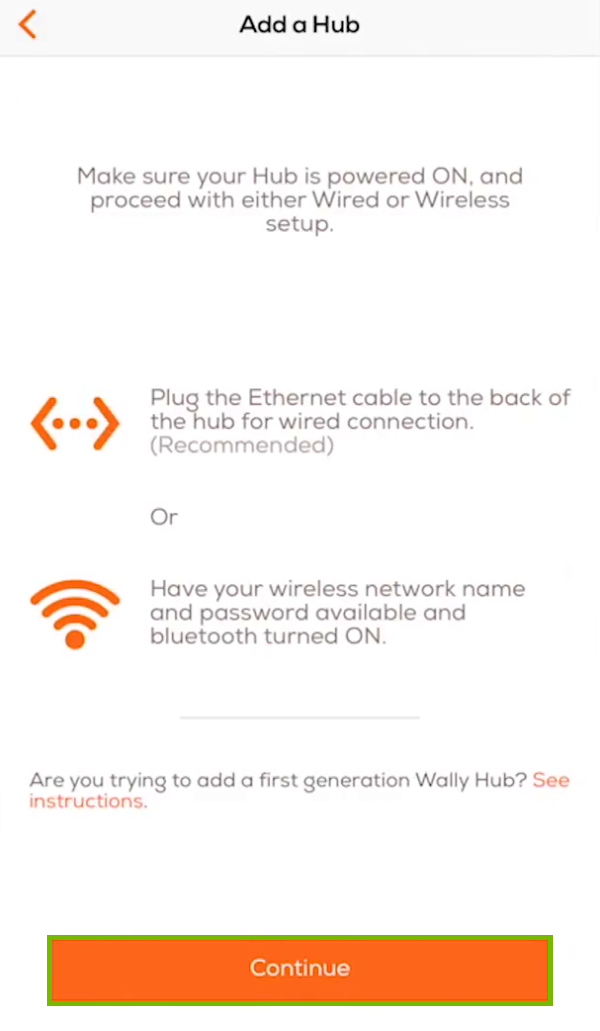

- Tap on the Continue button.

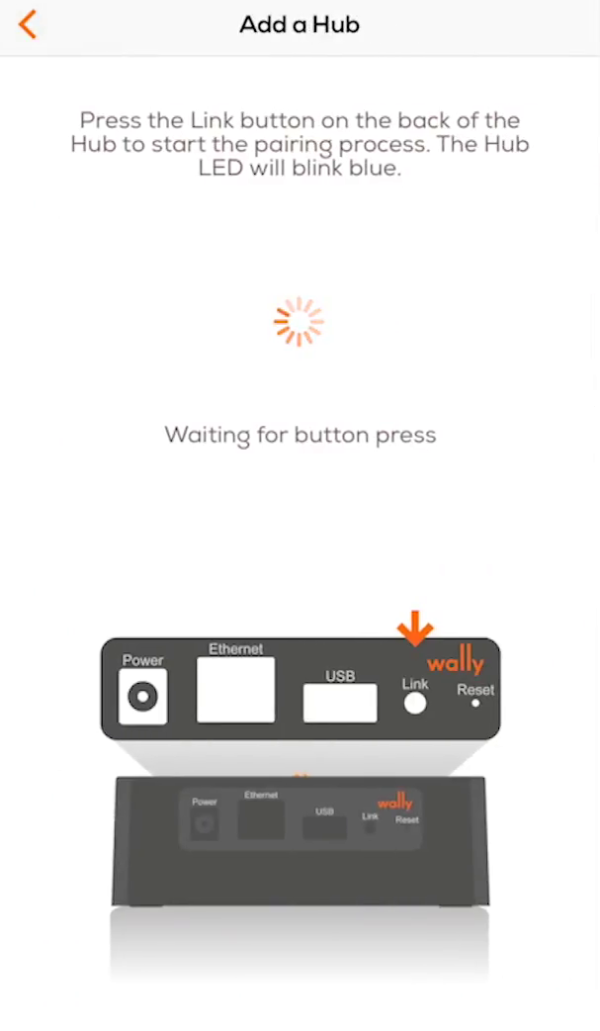

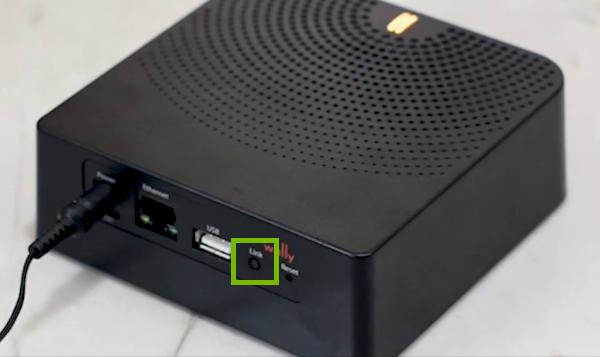

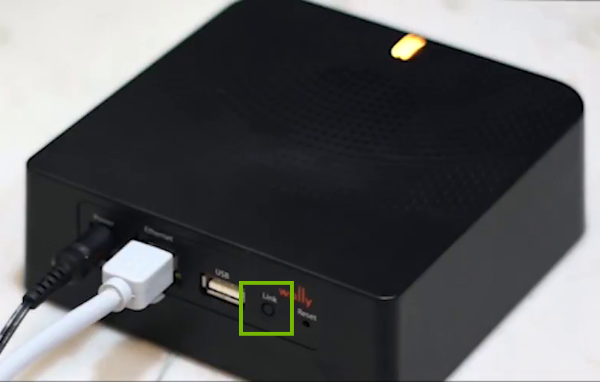

- When asked press the Link button on the hub.
- Open the Wally app on your smartphone or tablet.

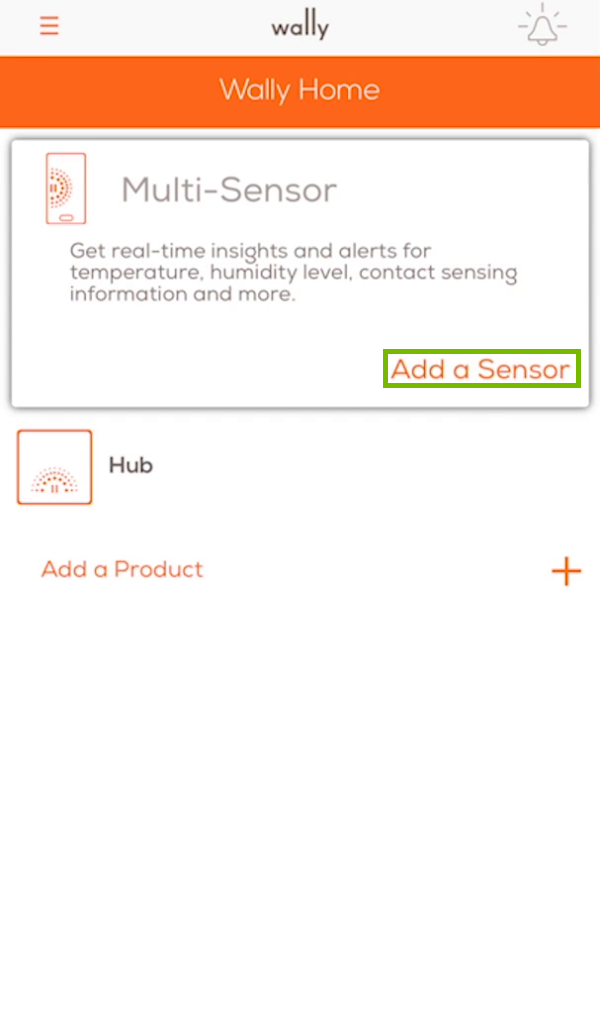

- Tap on Add a Sensor.

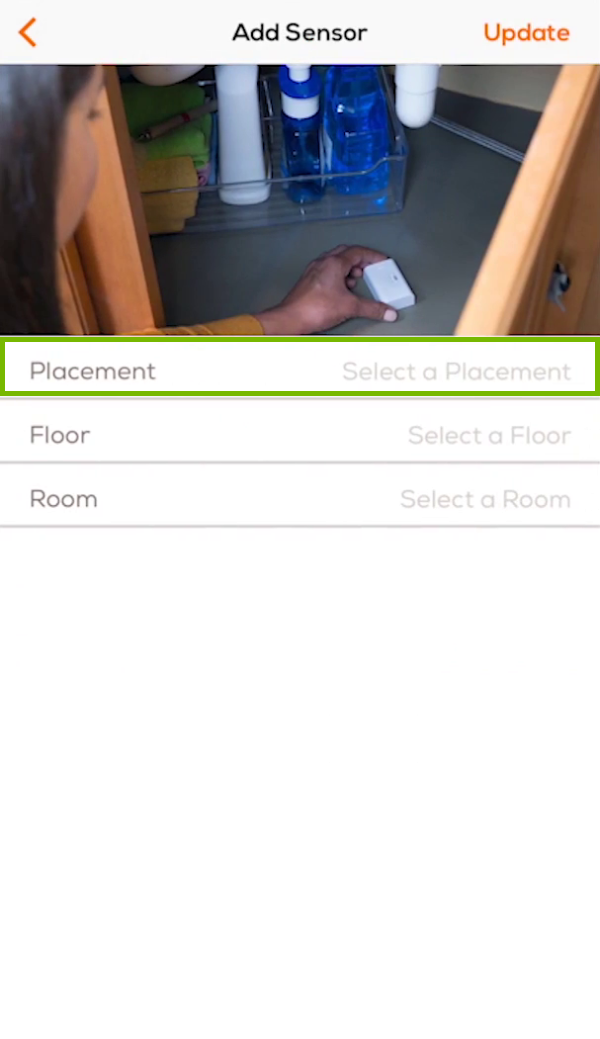

- Tap on Placement.
- Choose the placement of your device.
- Tap on Floor.
- Select which floor the device is located on.

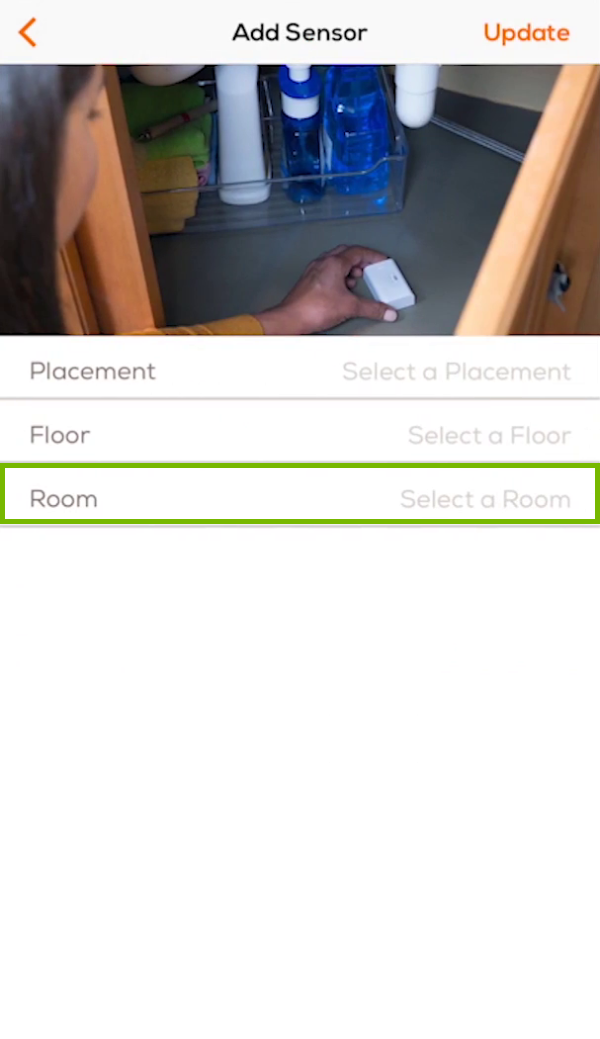

- Tap on Room.
- Select which room the device is located in.

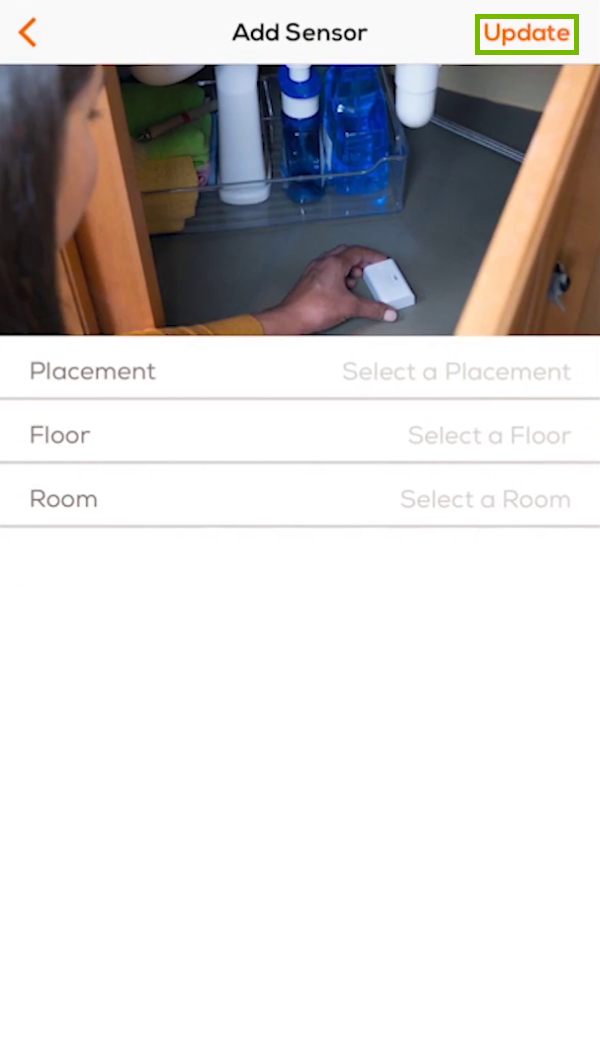

- Tap on Update.
- Pull the tab off the sensor and tap Continue.

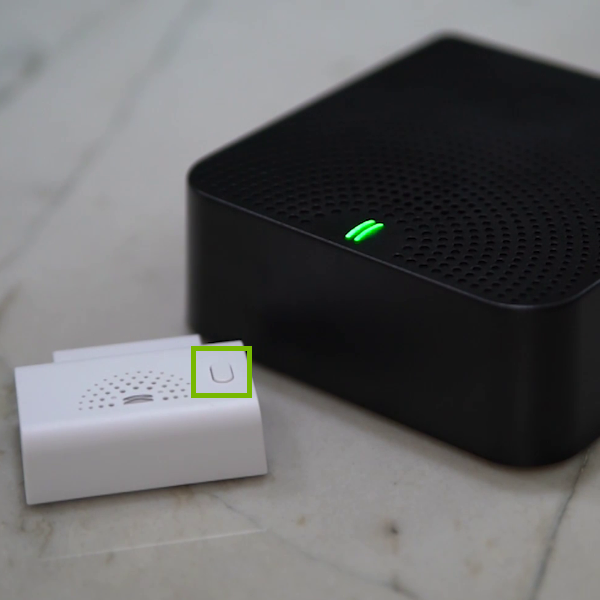

- Press and hold the button on the sensor until the LED starts flashing green.
- Tap on the Continue button.
- When asked press the Link button on the hub.

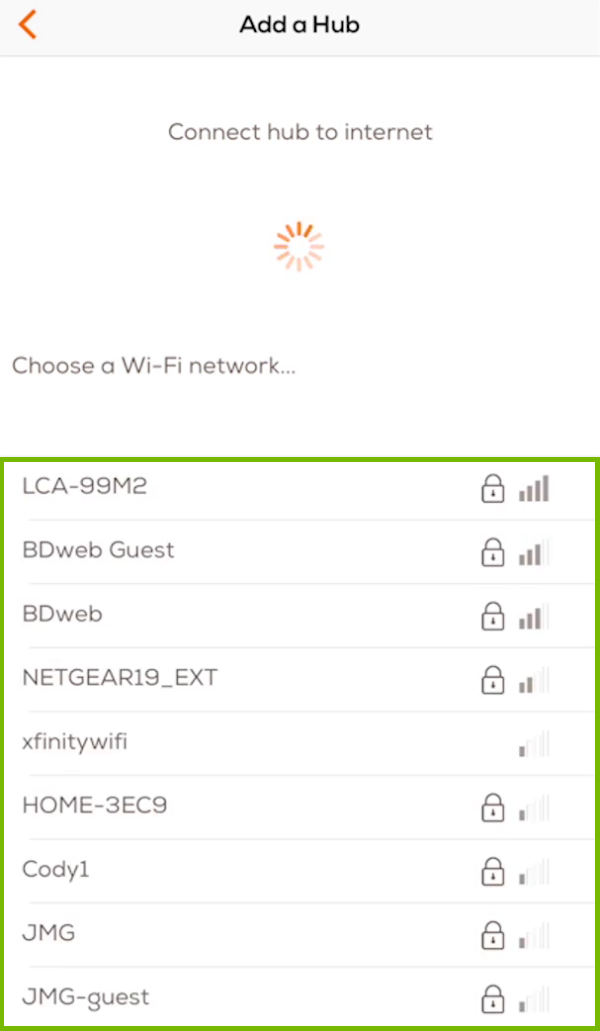

- Select your Wi-Fi network from the list.
The Wally hub supports 802.11 b/g/n on 2.4 GHz networks. Some wireless routers broadcast a dual-band wireless signal and provide both 2.4 GHz and 5 GHz wireless networks. Your device will not see 5 GHz networks, which is completely normal. Not all devices contain the antenna to communicate on the 5 GHz band. Also, some routers broadcast guest networks that your device may not be able to connect to depending on your router's settings.

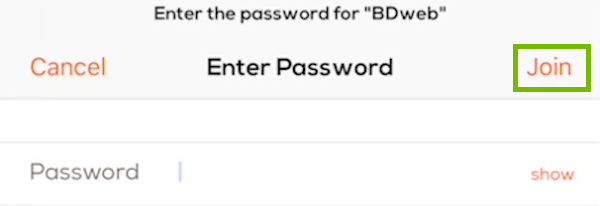

- Enter your Wi-Fi password and tap Join.
- When asked, press the Link button once more.
- Your hub is now connected to Wi-Fi.

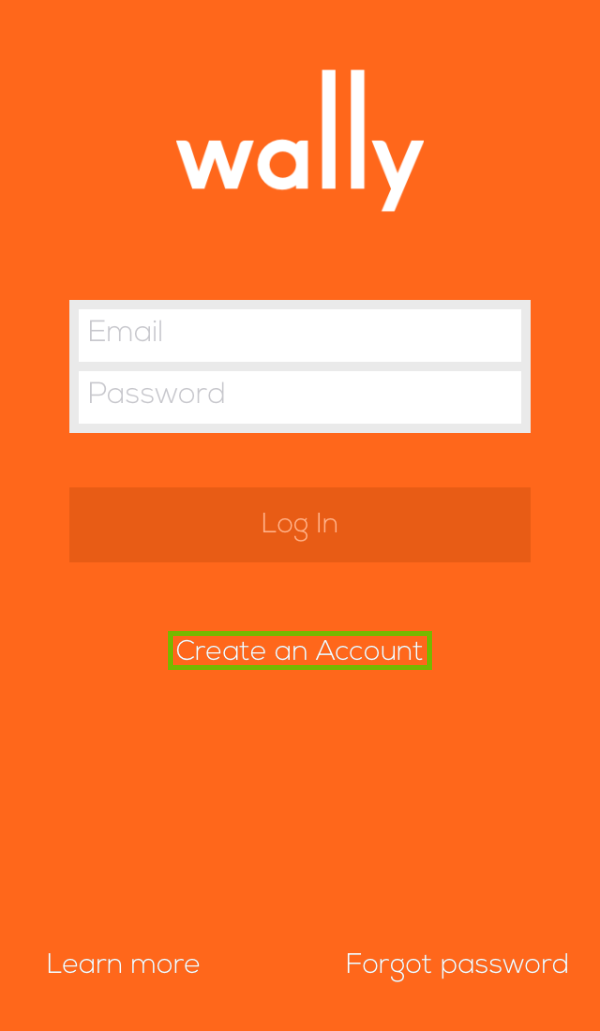

- Tap on Create an Account.

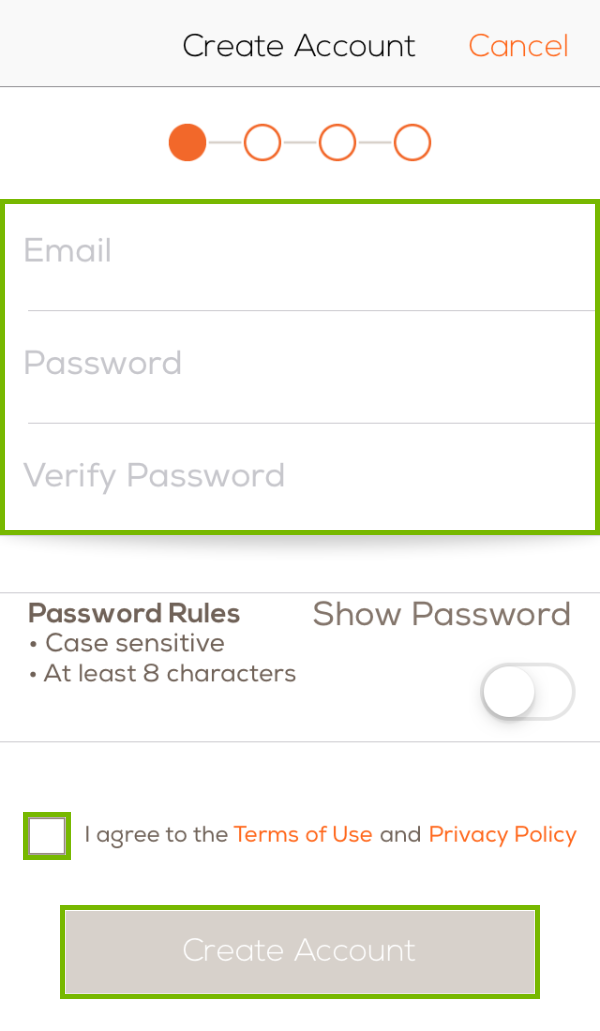

- Enter your email address and choose a password. Next, tap on box next to the "I agree to the Terms of Use and Privacy Policy" text. Finally, tap on Create Account.
For security reasons, you should not use the same password for your Wally account and your email.

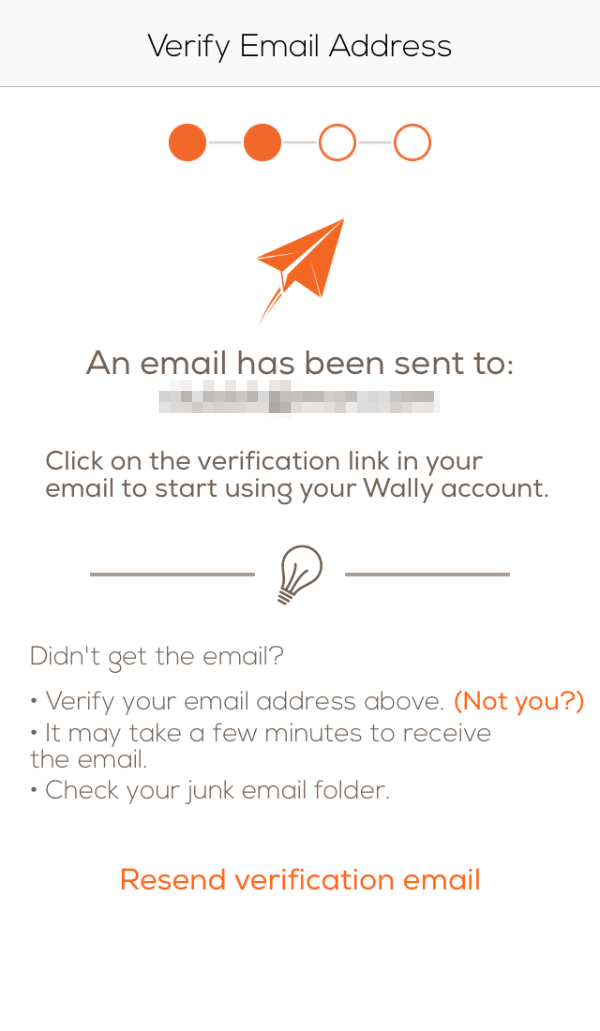

- You will be asked to verify your account by clicking a link that was sent to your email.

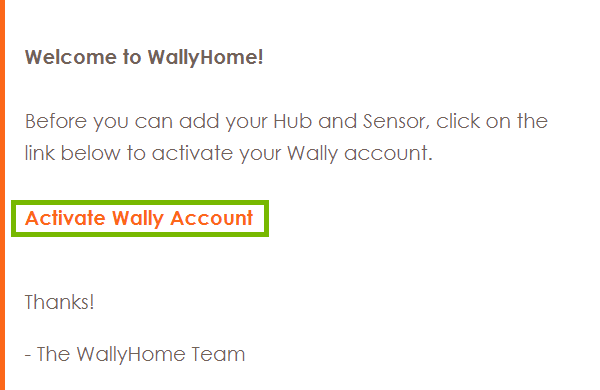

- Click on the Activate Wally Account link in the verification email that was sent to you.
If you don't see the email in your inbox, check your junk email folders for the email.

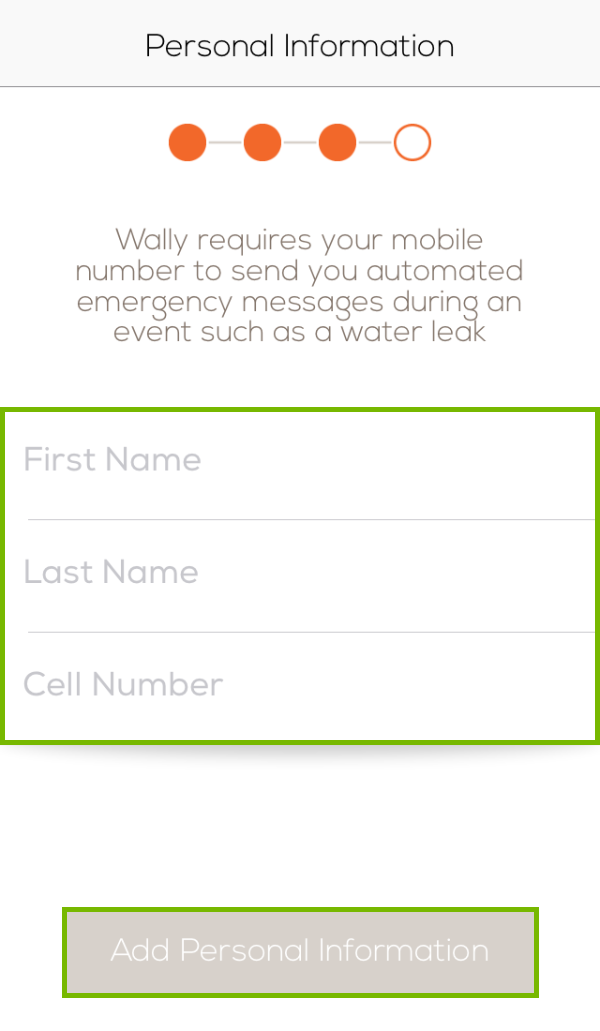

- Enter your first and last name along with your cell number and then tap on Add Personal Information.

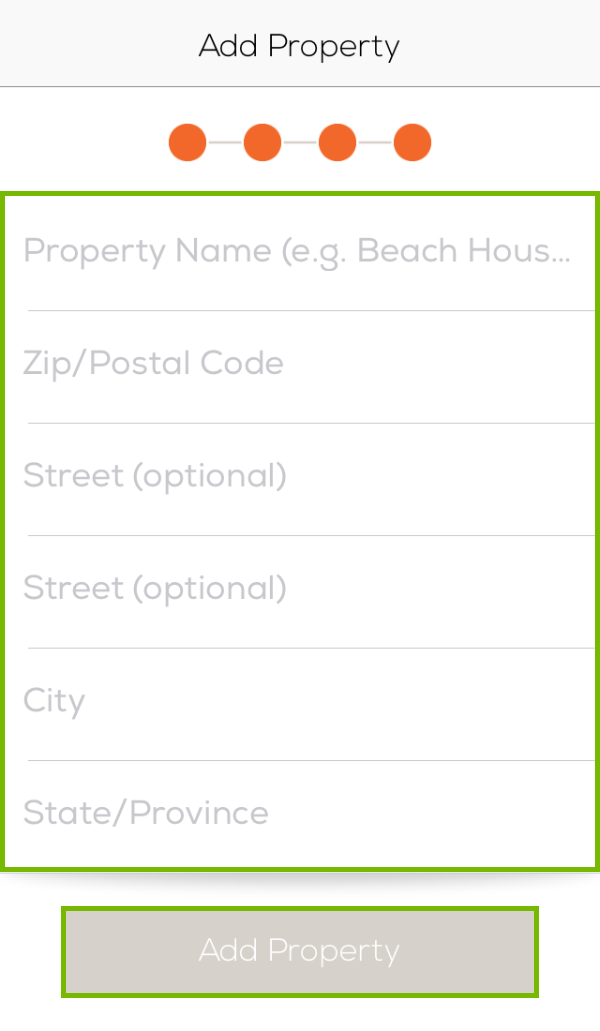

- Enter the requested information about the location where you are setting up your Wally system and then tap Add Property.

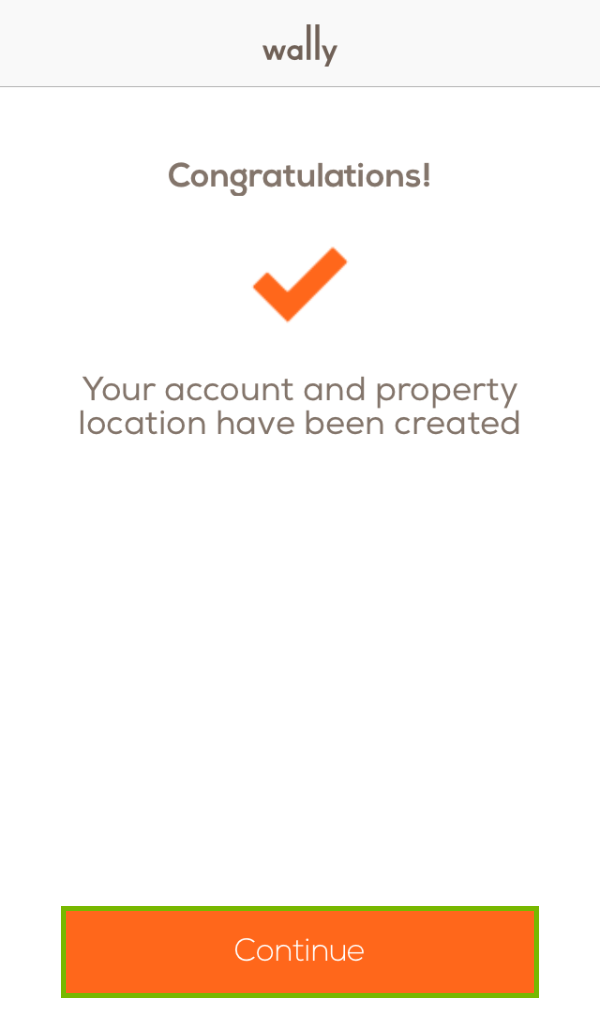

- Tap on Continue.
- Tap Notify Me to receive app notifications.
If you do not wish to receive app notifications, you may instead click Not Now.
- Tap Allow.
Install Process
- Launch the Play Store on your smartphone.
- Type in Wally in the search bar.
- Select the Wally app from the list.
- Select Install.
- Select Open to open the app.
