Make sure your lamp or light fixture is turned off.
Remove the existing bulb.
Carefully install your new ilumi smart bulb.
If you're installing multiple light bulbs at the same time, make sure they're placed within 50 feet of each other.
Turn your lamp or light fixture on.
3. Enable Bluetooth on Your Mobile Device
Bluetooth is a short-range wireless communication method, and can be turned on and off easily because it does take battery power.
Select your Operating System below to find the quick way to enable Bluetooth on your device.
Android
Every Android device is slightly different because of manufacturer and carrier customizations and launchers. While the icons and exact layout shown may be slightly different, they will be extremely similar.
Open Settings, and select Connected Devices.
Select Bluetooth.
Make sure Bluetooth is turned On.
Bluetooth Off
Bluetooth On
Apple iOS
Open Settings, and select Bluetooth.
Make sure the switch is turned On for Bluetooth.
Bluetooth Off
Bluetooth On
4. Set Up the Smart Bulb
Launch the ilumi app on your mobile device.

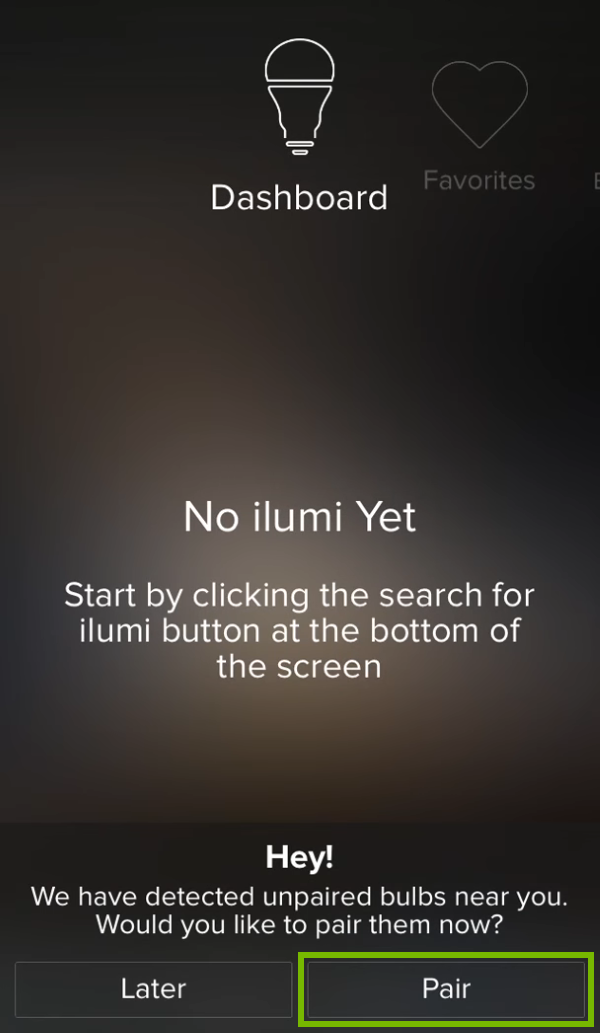

When your new light bulb is detected, tap Pair at the bottom.
If the Pair option doesn't show up, tap Search For ilumi.

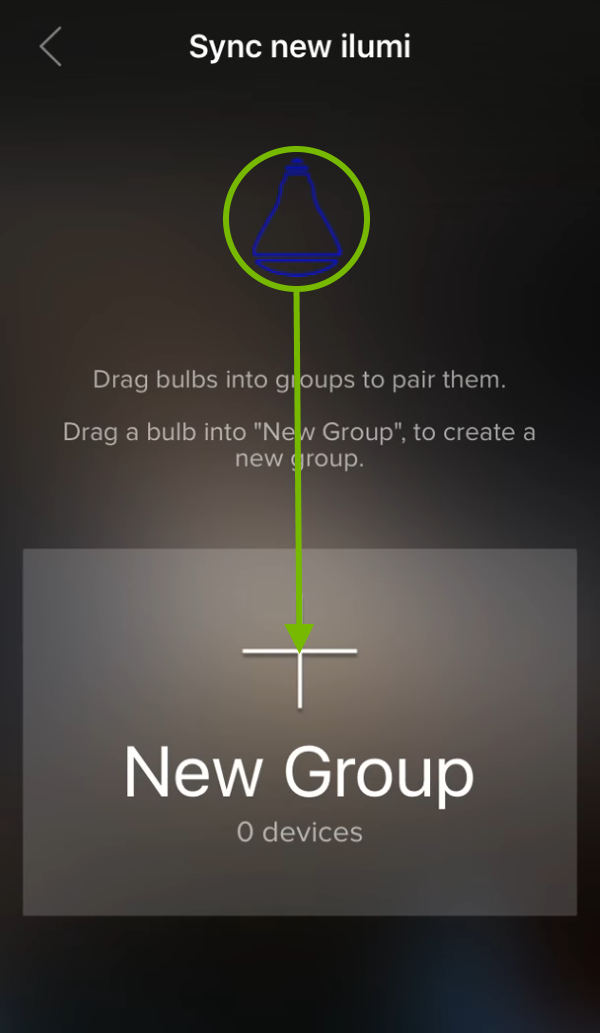

The outline of the detected light bulb will be displayed on screen in a color that the light bulb will also be lit in. This is done to assist if you're pairing multiple light bulbs at the same time. Each one will have a different color to help distinguish them. Drag the outline of the light bulb onto the New Group area below.

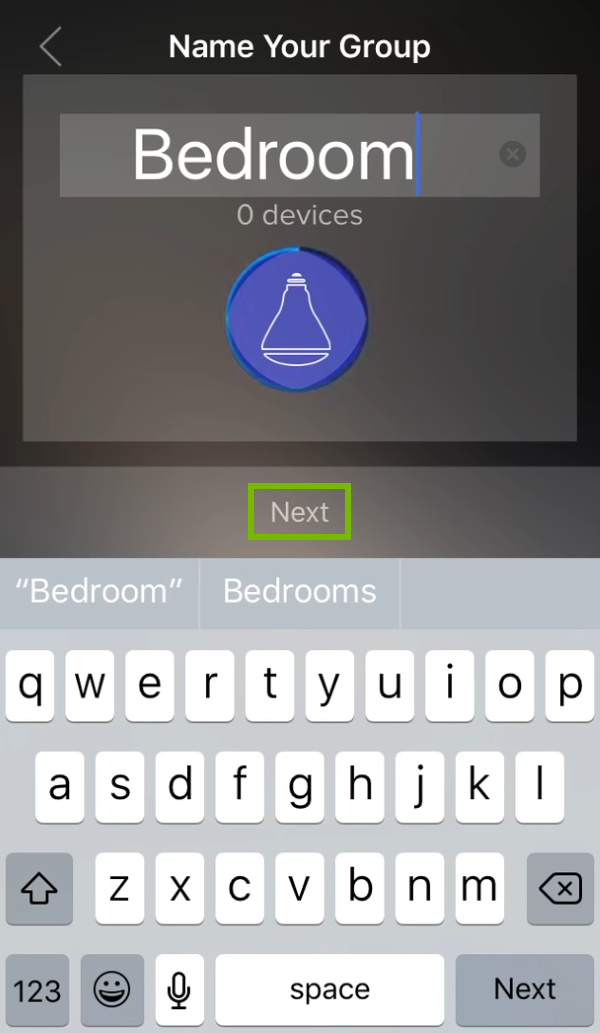

Name the group, then tap Next.

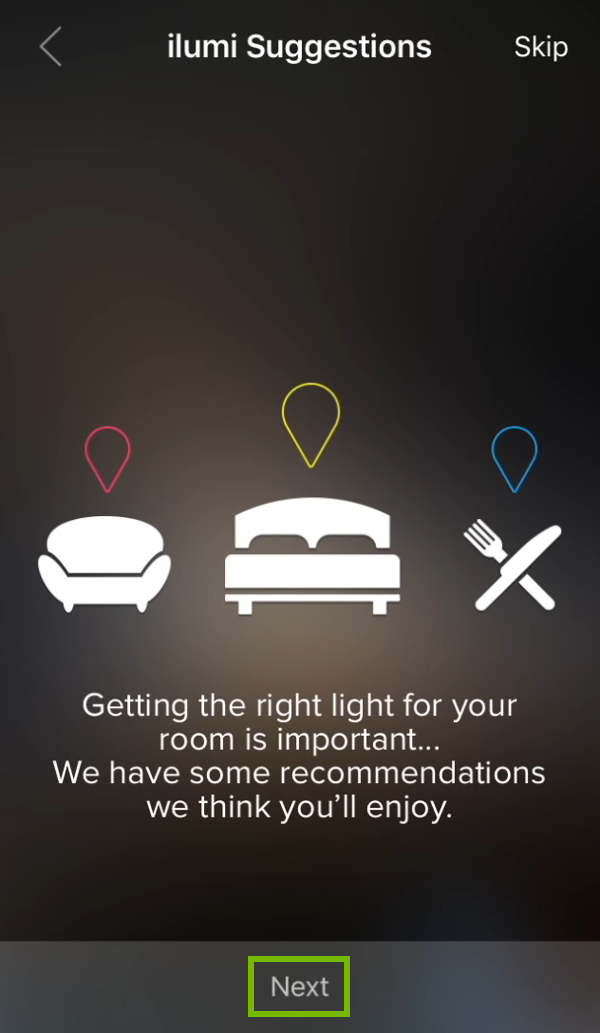

The app can configure the light bulb's brightness and color based on the room it is installed in. Tap Next to select a location.

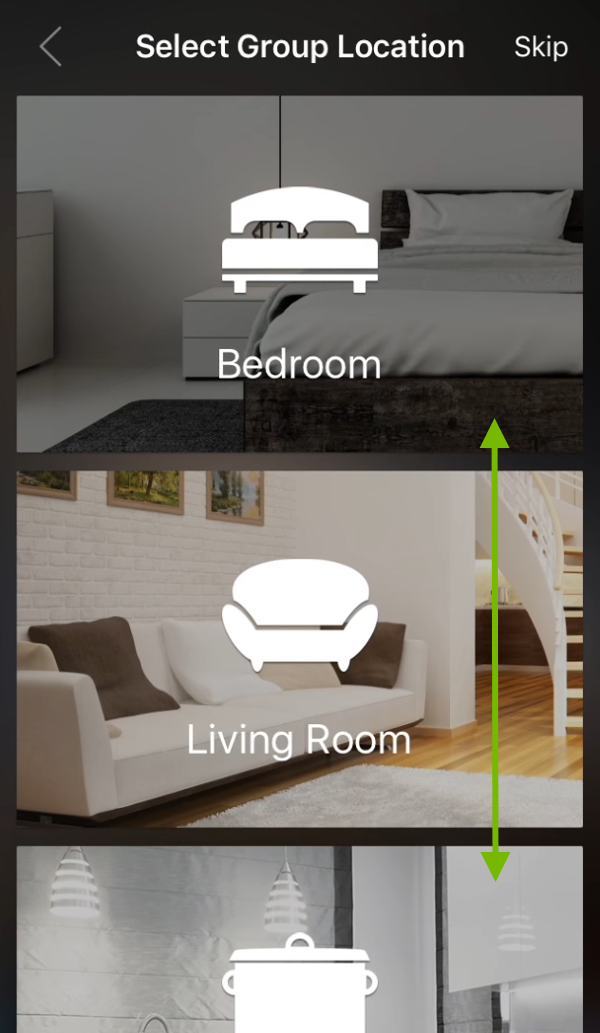

Scroll up and down to browse through lighting presets. Select one that fits your light bulb's location.

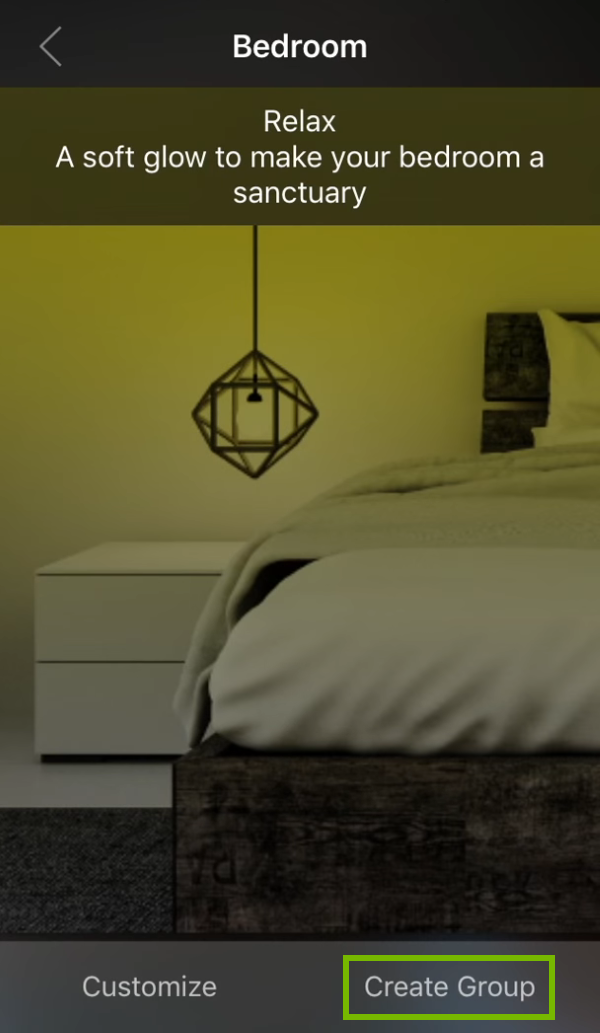

Once you've chosen a lighting preset, tap Create Group.

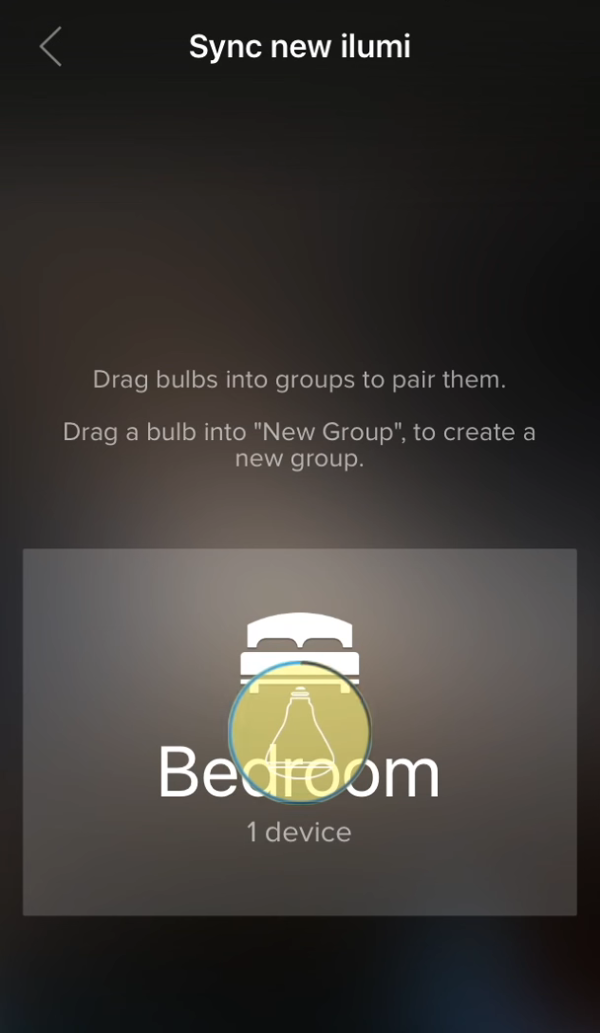

Wait for the light bulb to be configured.

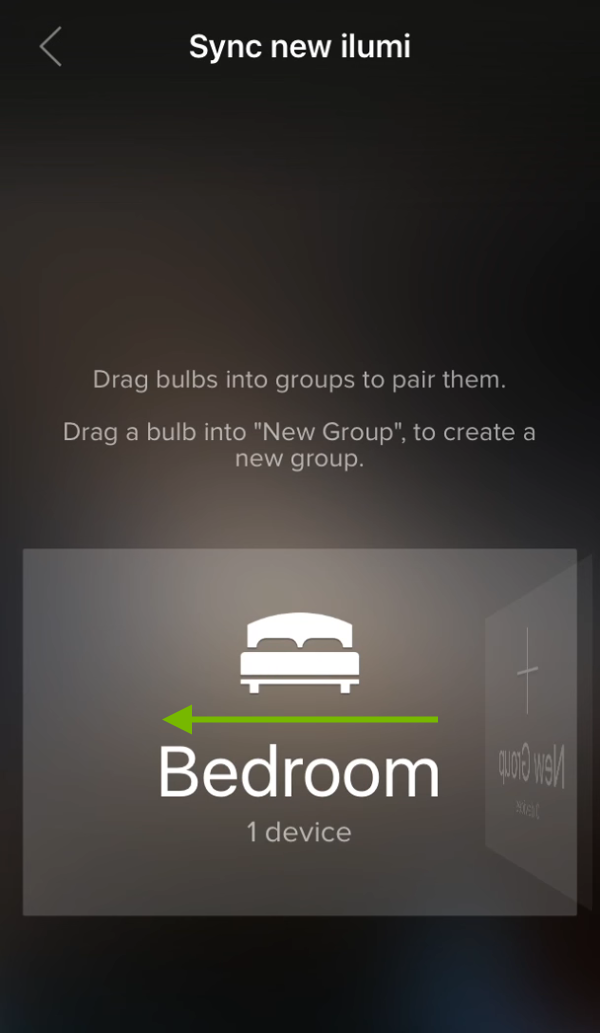

If you need to add more bulbs, you can drag them into the same group, or swipe the displayed group to the left to create a new one.

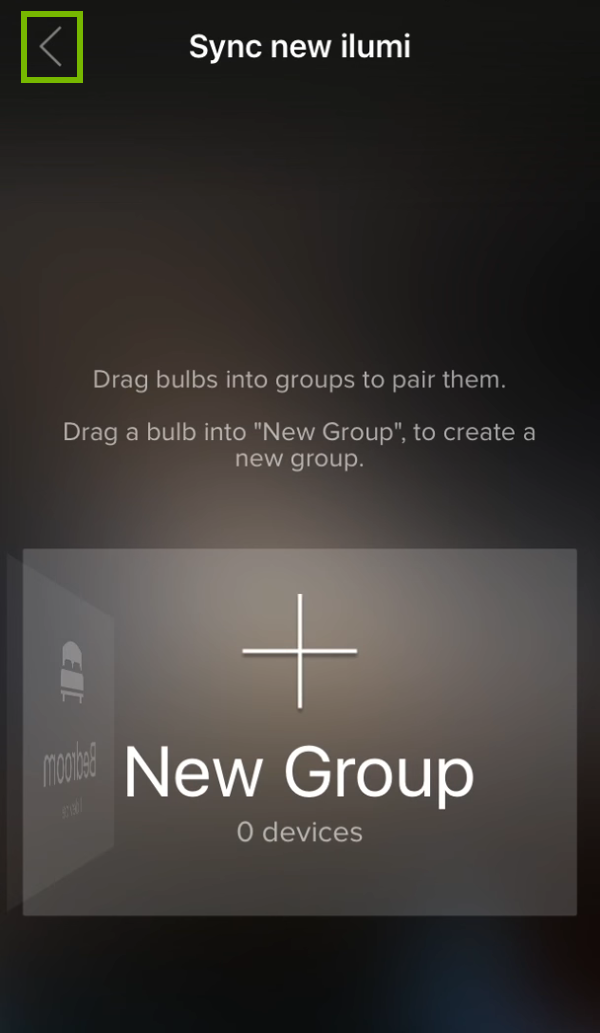

Once you have added all the bulbs you need to, tap the Back button.

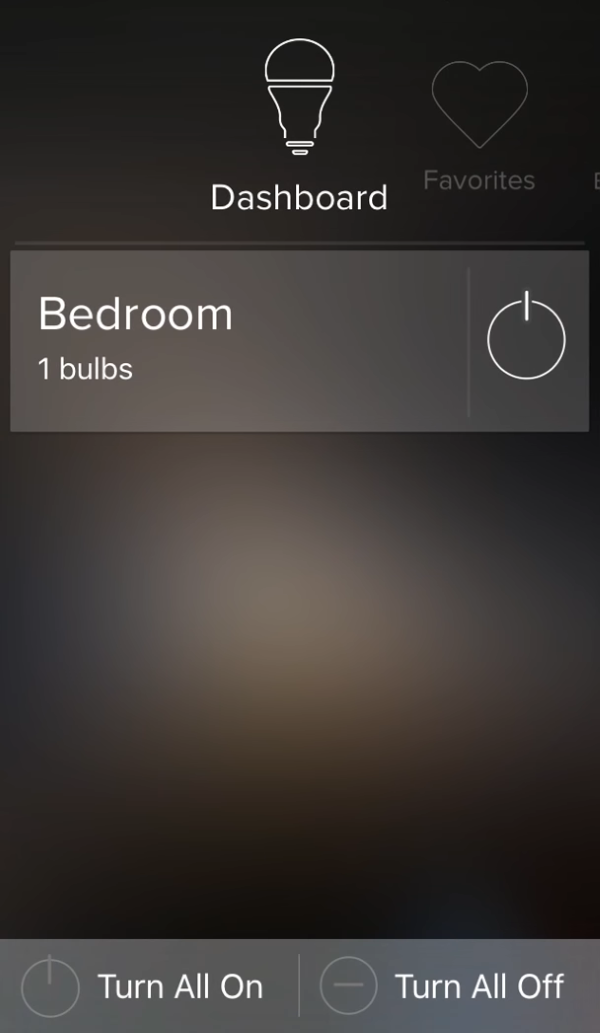

You'll see the newly set up group and light bulb on the Dashboard.
You can now be control your smart bulb from here.
5. Prepare the Smart Strip for Setup
Measure the area where you'd like to place your smart strip and ensure the surface is clean and dry. If you have multiple strips, it's recommended you lay them out and connect them together before cutting or applying them to the surface. If you are using one meter extensions they need to come first, before the two meter main strips.
Once you are comfortable as to how you are going to install your strip, carefully remove the plastic film backing on the back of the strip to reveal the adhesive and place firmly on the surface where you are installing the strip. Use the provided brackets to help hold the strip in place if the strip doesn't stick well on it's own.
With the strip in place, ensure it is not connected to the power supply yet and trim any excess strip at the far end as needed. Once cut, you can no longer use the excess strip.
Connect the controller to the plug, the light strip to the controller, and connect the plug to your wall socket.
The strip should illuminate through a red, green, blue, then back to white sequence indicating it is ready for pairing.If you are using more than two extensions on your strip, the colors may not reach the far end of your strip in this power on sequence. But don't worry, once you set the length in the ilumi app all colors will work fine.
6. Enable Bluetooth on Your Mobile Device
Bluetooth is a short-range wireless communication method, and can be turned on and off easily because it does take battery power.
Select your Operating System below to find the quick way to enable Bluetooth on your device.
Android
Every Android device is slightly different because of manufacturer and carrier customizations and launchers. While the icons and exact layout shown may be slightly different, they will be extremely similar.
Open Settings, and select Connected Devices.
Select Bluetooth.
Make sure Bluetooth is turned On.
Bluetooth Off
Bluetooth On
Apple iOS
Open Settings, and select Bluetooth.
Make sure the switch is turned On for Bluetooth.
Bluetooth Off
Bluetooth On
7. Set Up the Smart Strip
Launch the ilumi app on your mobile device.
When your new light strip is detected, tap Pair at the bottom.
If the Pair option doesn't show up, tap Search For ilumi.

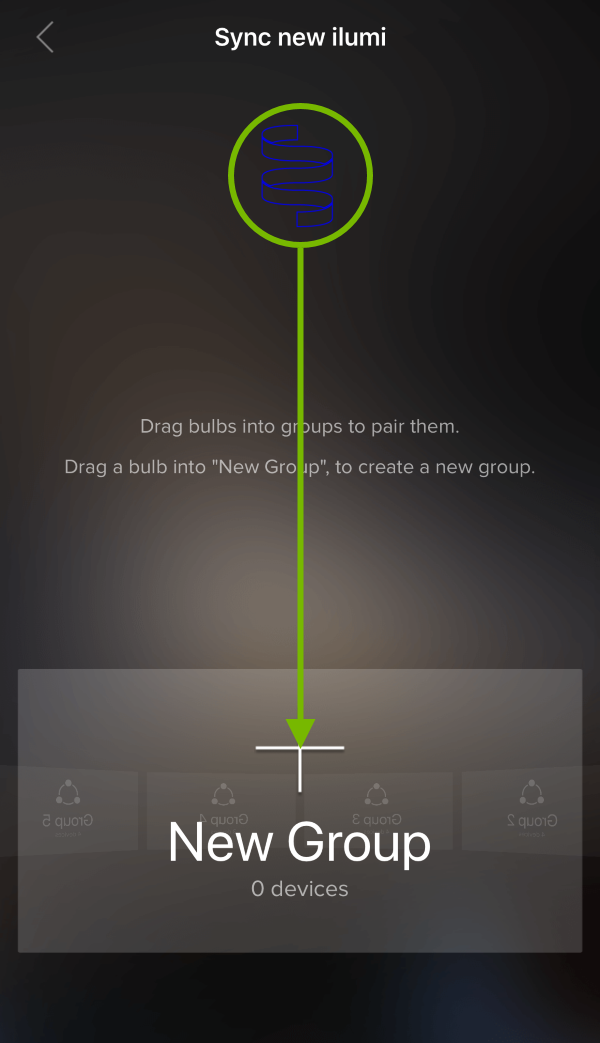

The outline of the detected light strip will be displayed on screen in a color that the light strip will also be lit in. This is done to assist if you're pairing multiple light strips at the same time. Each one will have a different color to help distinguish them. Drag the outline of the light strip onto the New Group area below.

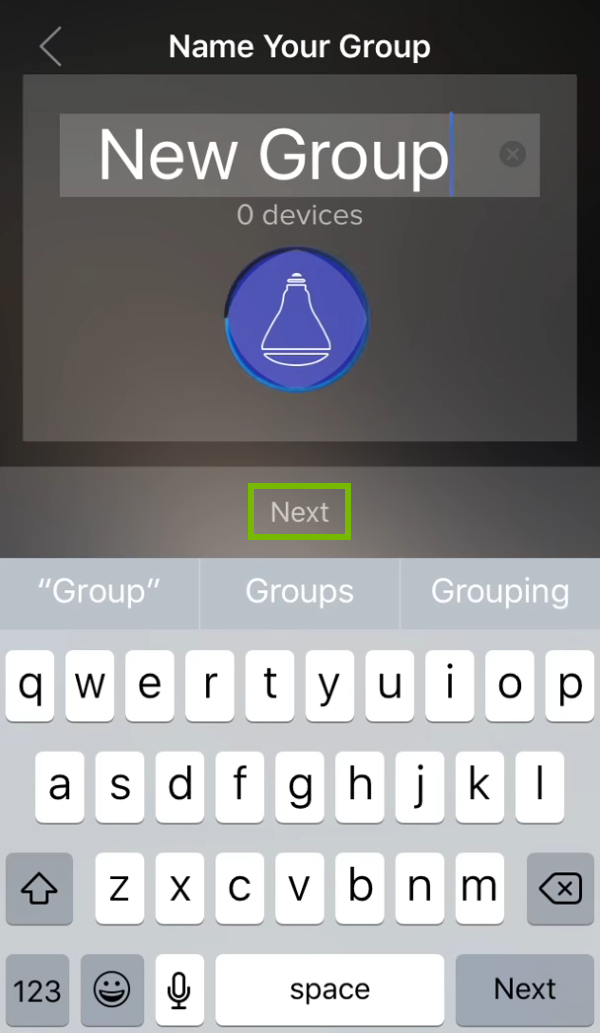

Name the group, then tap Next.

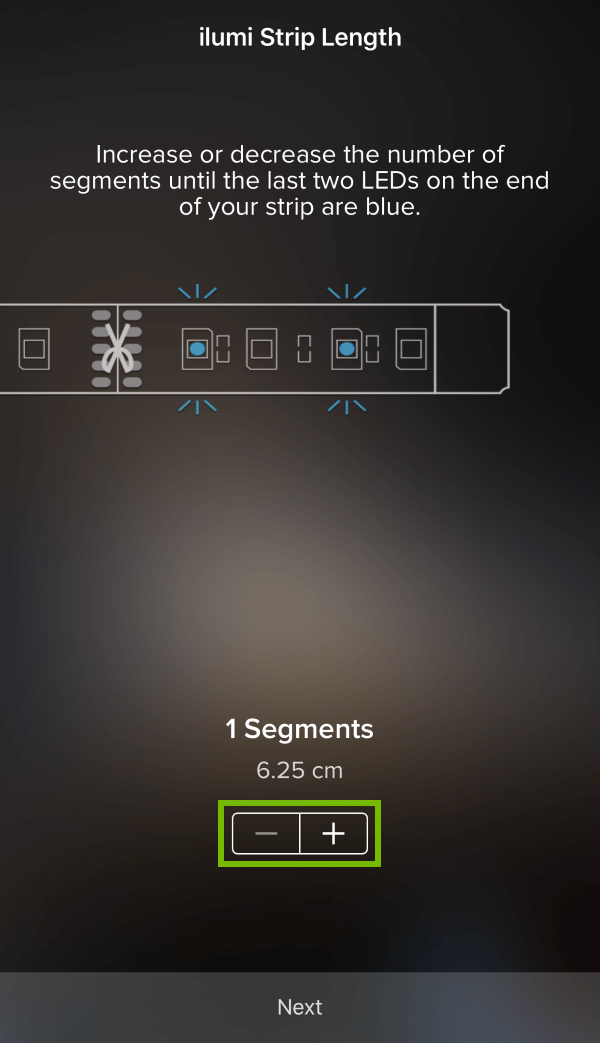

Next you have to confirm the length of your smart strip, since each color LED is addressable and you can cut or extend your strip to up to 160 different possibilities. Tap the plus + or minus - controls to adjust the length until the last two color LEDs on your strip are lit blue. Tap Next when done. Make sure to be patient and don't skip this step, otherwise it won't function properly.
Wait for the light strip to be configured.
If you need to add more strips, you can drag them into the same group, or swipe the displayed group to the left to create a new one.
Once you have added all the strips you need to, tap the Back button.

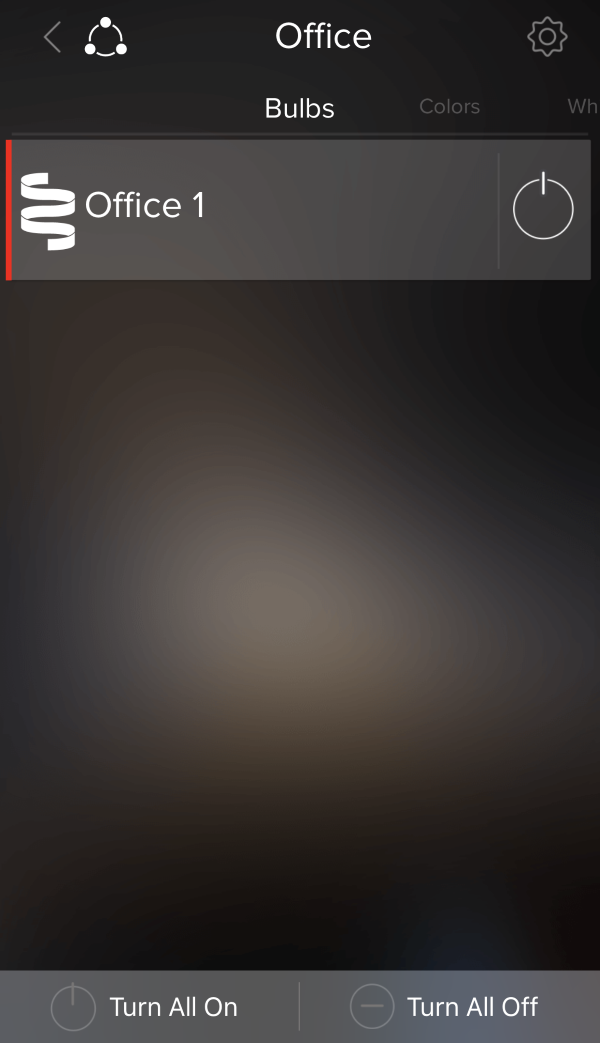

You'll see the newly set up group and light strip on the Dashboard.
You can now be control your smart strip from here.
