How to Set Up Peripherals for Xbox One

Authored by: Tech Pro Team
This Guided Path® was written and reviewed by’s Tech Pro team. With decades of experience, our Tech Pros are passionate about making technology work for you. We love feedback! Let us know what you think about this Guided Path® by rating it at the end.

This Guided path shows how to setup peripherals for your Xbox One.

? What peripheral would you like to setup?

  1. Controller
  2. Chatpad
  3. Headset

We're here to help!

Connect to a Tech Pro

Call or chat with a Tech Pro 24/7.

This Guided path shows how to setup peripherals for your Xbox One.

We'll show you how to setup your controller.

Things you need before you start:

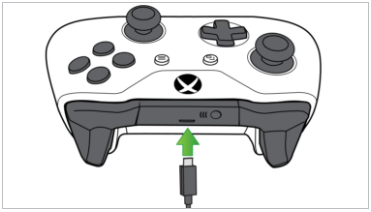

  • A USB-certified cable that has a micro-USB connector on one end and a full-size USB connector on the other.


  1. Plug the other end into the Xbox One console.

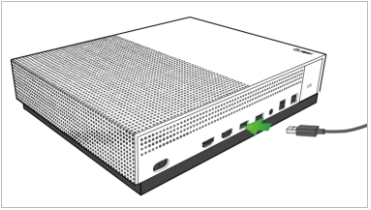

    USB cable connected to Xbox One console. Illustration.
The controller should be connected to your Xbox One console and ready to use.
Do you have any other peripherals?

Things you need before you start:

  • Insert AA batteries or rechargeable batteries from Xbox One play & charge kit into the controller.

To connect wireless controller to your Xbox One:

  1. Press and hold the Xbox button on the controller to power on.
    Xbox button.

  2. Press the Connect button on the console.
  3. For Xbox One S and X, the connect button is in the front, below the power button.

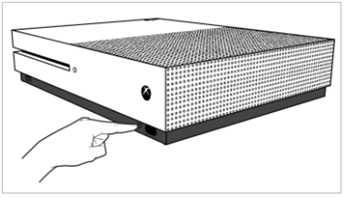

    Xbox One S and X connect button. Illustration.

  4. For original Xbox One, the connect button is located on the left side.

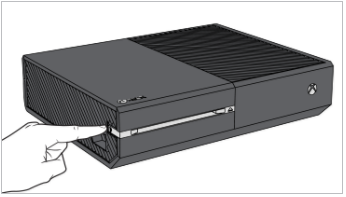

    Xbox One original connect button. Illustration.

  5. Press and hold the connect button on the controller, until the controller’s Xbox button quickly flashes. Flashing means it’s searching for your console.

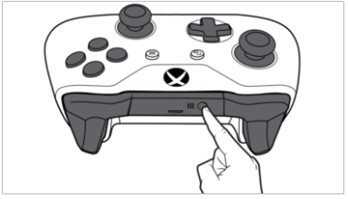

    Xbox controller connect button.
  6. The light will stay solid once it is connected to the console.
  7. Repeat the procedure for every controller you want to add. You can connect up to eight wireless controllers to your console.

Xbox One Chatpad

  • Xbox One Chatpad is a small keyboard connected to your controller to send messages to friends, redeem codes, and search apps and the web. Plus, when you attach a headset, you can chat while you play.

What you need before you start:

  • Update your console to the most recent Xbox One operating system. Chatpad requires your console to have a November 2015 or later update.

Check for a system update.

  1. Press the Xbox button in the center of the Xbox One controller to open the guide.
  2. Select System then Settings.
  3. Select System then Console info.
If there’s an update available, it will be listed at the bottom of the first column in the second button location. If not, you'll see "No update available".

Connect chatpad to your controller.

  1. Power on your Xbox One controller by pressing the Xbox Button on your controller.
    Xbox button.
  2. Connect the chatpad into the controller.

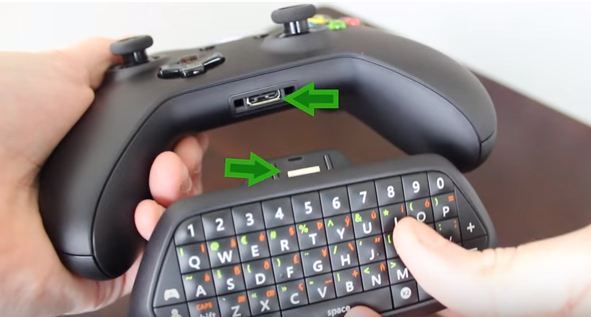

  3. Make sure chatpad connector and controller accessory port are align.
    Chatpad connected to an Xbox controller.

  4. Gently insert the chatpad to the controller.
  5. Ensure that everything fits properly. If the chatpad doesn't easily fit, try gently rocking it back and forth until it slips into place.
  6. The Orange LED light will blink indicating that its connected and requires an update.

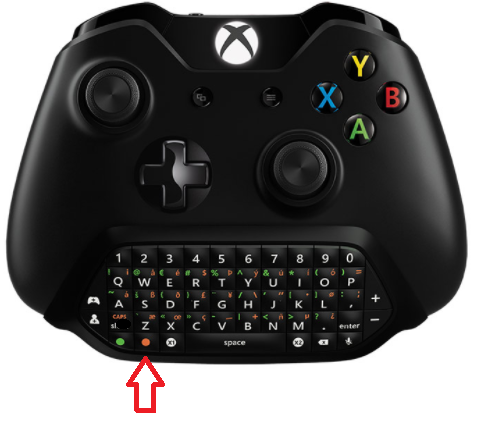

    Blinking orange LED on chatpad.

Update your Controller

  1. Press the Xbox Button to open the guide.
    Xbox button.
  2. Select System then Kinect & devices then Devices & accessories.
  3. Select the controller you want to update.
  4. Select Device info then Firmware version box, then Continue.

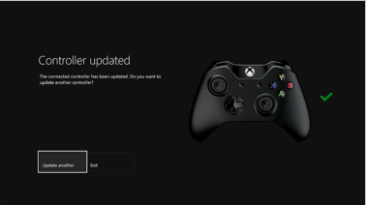

    Controller updated. Screenshot.

Your chatpad is ready to use.
  • Headsets can only be connected to the Xbox One wireless controller. They cannot be connected to third-party wired controllers.
  • Xbox One console does not support Bluetooth functionality. Headsets cannot connect to the console using Bluetooth.
  • If you have an Xbox One wireless controller with a 3.5-mm port, you can connect directly a headset with a standard 3.5-mm jack to the controller.

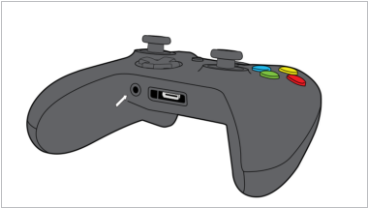

    Xbox One controller with 3.5mm port highlighted.

  • If you have a chatpad connected to your controller, you may connect your 3.5-mm jack headset to the chatpad instead.

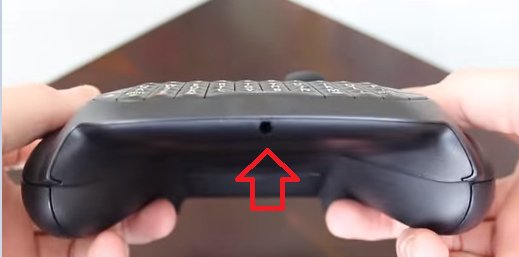

    Chatpad with 3.5mm jack highlighted.
