How to Set Up the YUNEEC SteadyGrip

Authored by: Support.com Tech Pro Team

1. Introduction

Your Yuneec Typhoon 4K comes with an optional Steadygrip handheld base. Carry around your powerful CGO3 camera with complete access and control over everything it can do.

Tools You'll Need:

  • Your ST10+ Remote Control

-->

Supplies You'll Need:

  • Zip ties
  • Any other consumable supplies
  • Comment out supplies section if no supplies are necessary

-->

Before You Begin:

  • You must have your drone ready to fly.

Setting Up Your Drone

Yuneec logo

2. How to Set Up the Steadygrip

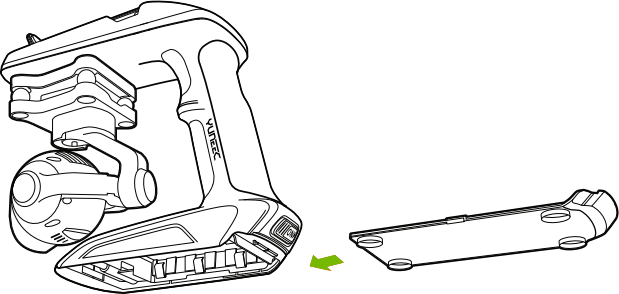

  1. Remove the battery cover.
Diagram showing the removal of the battery cover

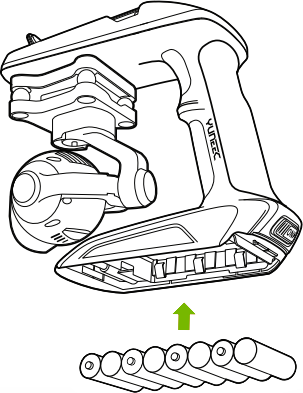

  1. Insert 8 AA batteries.
Inserting the batteries

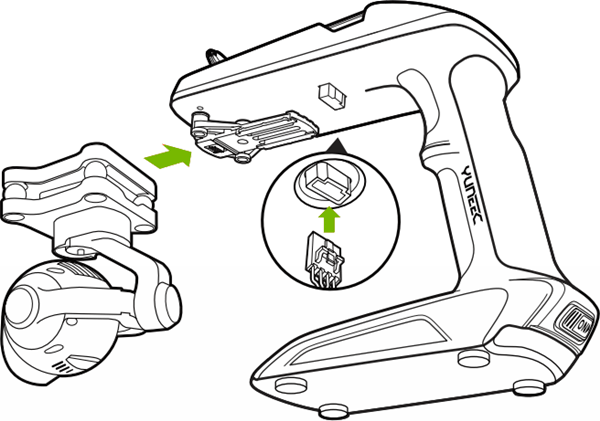

  1. Gently slide the top part of the CGO3 camera (that also attaches below the nose of the Q500 the TYPHOON) onto the mount below the front part of the SteadyGrip. A corresponding ‘click’ will be noticed once the CGO3 camera has securely been installed into the slide-in mount on the SteadyGrip. Carefully connect the CGO3’s power/control connector to the power/control port of the CGO SteadyGrip.
Connecting the camera to the steadygrip
  1. Turn the Steadygrip on by using the power switch. It will initialize after 4-8 seconds of no movement or vibration.
Power switch
