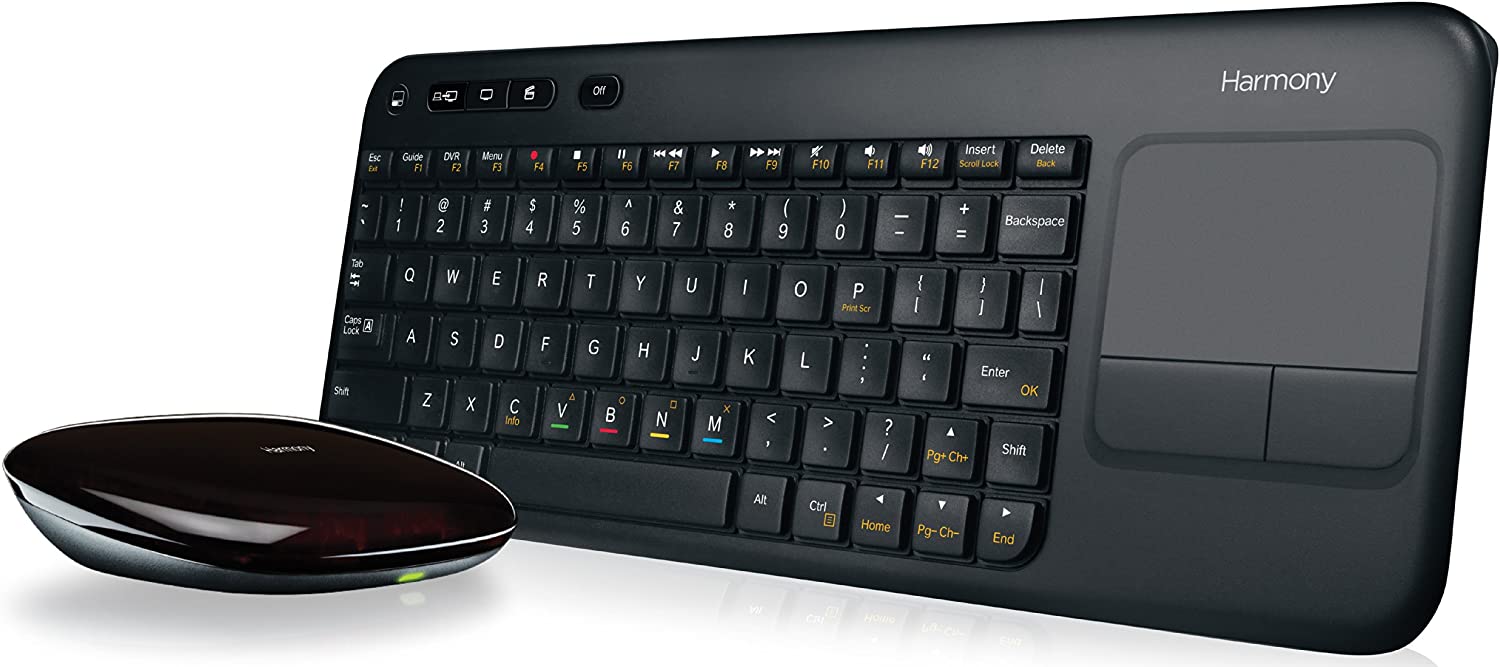

How to setup Logitech harmony smart keyboard

Authored by: Support.com Tech Pro Team

1. Introduction

How to setup Logitech harmony smart keyboard

2. Resolution

Select the issue to setup

3. Positioning Smart Keyboard And Harmony Hub

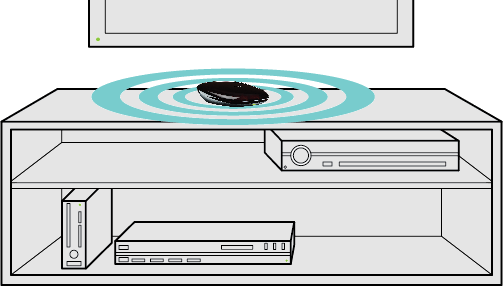

Proper placement for Harmony Hub

Open Cabinets

• Position Harmony Hub on top of your cabinet, or on a large, open shelf that's unobstructed.
• IR signals sent from the hub will reflect off of walls and other surfaces before reaching your devices. Direct line of sight is generally not required.

Closed Cabinets

• Position Harmony Hub inside the cabinet, on or beside the majority of your devices.
• IR signals sent from the hub will reflect off of walls, cabinet interiors and other surfaces before reaching your devices. Direct line of sight is generally not required.
• Plug the IR mini blaster into the back of the hub and position it on top of your cabinet so it may send IR signals to your television.

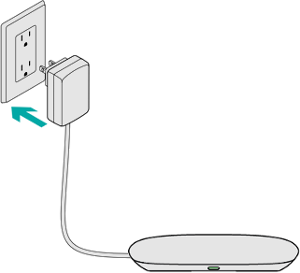

4. Powering on Harmony Hub

Plug the supplied power adapter into Harmony Hub. The hub takes 30 seconds to power on.

5. Powering on Smart Keyboard

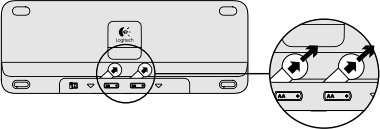

Pull out the battery tabs on the back of your keyboard.

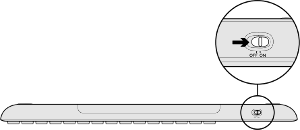

Turn the power switch to on.

6. Downloading The Harmony App And Wi‑Fi Setup

1. Visit the iTunes App Store or Google Play and search for the Harmony app.

1. Launch the app and select Set Up New Hub.
2. Continue through the various screens following the instructions:
3. Ensure Bluetooth is enabled on your iPhone.
4. Ensure your phone is connected to your home's Wi‑Fi network.
5. Ensure Harmony Hub is powered on.
6. The Harmony app should find your hub after several seconds.
7. Having trouble?
8. Try disabling and re-enabling Bluetooth on your phone.
9. Once your phone and hub have paired over Bluetooth you will be asked to enter your Wi‑Fi credentials.

7. Adding Devices, Activities And Home Control

1. If you already have a Harmony account, sign in.
2. Otherwise, select CREATE ACCOUNT.
3. You'll be guided through several screens explaining how Harmony Smart Keyboard works.
4. If you have a previous Harmony remote and would like to import its devices and Activities, you will be able to copy them over to your new Harmony Smart Keyboard. If you do not have a previous Harmony remote, select No, Set Up New.
5. Enter your devices:
6. Harmony will first try to detect some of your connected devices such as Sonos, Roku, and Philips hue.
7. Press the Add Device button at the bottom of your screen to add additional home entertainment and home automation devices.

1. If required, Harmony will ask you to enter the username and password for some of your services so we may communicate with them.
2. Have trouble finding your model number? This article may help: Finding your device's model number
3. Harmony will either automatically create Activities or guide you through creating them based on the devices discovered to help set up your one-touch experience. If you'd like to further modify any of these Activities by adding additional commands, please take a look at our article regarding adding commands to your Activities.
4. You'll now be able to configure up to 50 Favorite TV Channels. Enter your zip code to help find local service providers, then select from a pre-populated list of channels.
