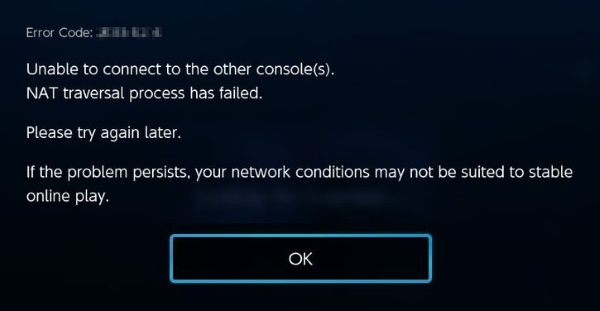

If you are gaming on a console and are having trouble playing multiplayer games, joining lobbies or talking to other players through voice chat, it may be due to your internet connection or more specifically the type of NAT your network has. This guide will explain what NAT is, what the different NAT types are for different consoles out there and how these issues may be resolved.
Network Address Translation (NAT) Type issues are common challenges faced by gamers across various platforms including Mac, PC, PS5, Xbox Series S/X, and Nintendo Switch. NAT Type affects your ability to connect with other players online and can limit the quality of your gaming experience. In this blog post, we'll discuss troubleshooting steps for NAT Type issues on these platforms.
Understanding NAT Type
NAT Type categorizes your network connection quality and is crucial for online gaming. There are generally three NAT Types:
NAT Type 1 (Open): You can connect with users of any NAT Type. Ideal for gaming.
NAT Type 2 (Moderate): Allows games and chat with most users but might have issues with NAT Type 3.
NAT Type 3 (Strict): Can cause significant issues in connectivity and voice communication.
Troubleshooting NAT Type Issues
For Mac and PC
1. Check Your Router
UPnP (Universal Plug and Play): Ensure UPnP is enabled in your router settings. This feature automatically adjusts the router to allow connections for gaming.
Port Forwarding: Manually open specific ports for the game you’re playing. You can find the required ports on the game’s website or community forums.
2. Disable Firewall or Antivirus Temporarily
Sometimes, these can interfere with your connection. Disable them temporarily to see if that improves your NAT Type.
3. Reset Your Network
Restart your router and modem. Sometimes, simply resetting your network can resolve NAT issues.
For PS5
1. Set Up a Static IP Address
Assign a static IP address to your PS5 in your router settings. This ensures your PS5 always uses the same IP, making it easier to manage ports.
2. Port Forwarding
Forward specific ports for the PS5. Sony provides a list of required ports for PlayStation Network services.
3. Test Network Connection
After making changes, test your network connection on your PS5 to see if the NAT Type has improved.
For Xbox Series S/X
1. Enable UPnP on Router
UPnP is crucial for Xbox consoles to achieve an open NAT. Ensure it’s enabled on your router.
2. Port Forwarding for Xbox
Forward specific ports used by Xbox Live. Microsoft provides a list of necessary ports.
3. Hard Reset Your Xbox
Sometimes, a hard reset (holding the power button for 10 seconds) can help in refreshing the network connection.
For Nintendo Switch
1. Check Wireless Interference
The Switch is often sensitive to wireless interference. Ensure your Switch is within a good range of your Wi-Fi router.
2. Port Forwarding
Forward the necessary ports for Nintendo’s online services. Nintendo provides information on which ports to open.
3. Switch to a Wired Connection
Using an Ethernet adapter for a wired connection can sometimes resolve NAT issues.
General Tips
Firmware Update: Ensure your router's firmware is up to date.
Router Placement: Place your router in a central location away from obstructions.
Contact ISP: Sometimes the issue might be on your Internet Service Provider’s end. Contacting them can provide additional solutions.
Conclusion
NAT Type issues can significantly impact your online gaming experience, but they are often resolvable with a bit of troubleshooting. For gamers on Mac, PC, PS5, Xbox Series S/X, and Nintendo Switch, solutions like enabling UPnP, port forwarding, and ensuring a stable connection can help improve NAT Type. Remember, each gaming device might require a specific approach, so understanding the needs of your particular platform is key to successful troubleshooting.
2. Introduction: NAT Types
Network Address Translation (NAT) is a technology that allows you to have multiple devices connected to the internet at the same time while only having one physical connection to your Internet Service Provider (ISP). The connection to the ISP is established through a modem whereas the NAT is accomplished with the use of a router. Interconnecting a modem and a router is how all your devices in your home are able to connect to the internet at the same time. Units that can replace the combined use of a modem and a router also exist and are called gateways. The NAT has the following effects on a network:
Connections initiated from inside the home network like surfing the web, checking email and joining a game work fine because the router passes the connection request out. Once the connection is established data flows both in and out.
Connections initiated from outside the home network are dropped by default. This is because the router doesn't know to which device on your home network the incoming connection was intended for. In a multiplayer game these incoming connections are sometimes required for joining lobbies and voice chat.
Your NAT type is determined by the settings or features of the router on the network you are using to connect to the Internet. Your NAT type, combined with the NAT type of other online players, determines whether you can successfully communicate with them in party chat or use multiplayer gaming.
3. Nintendo Switch: Test Connection

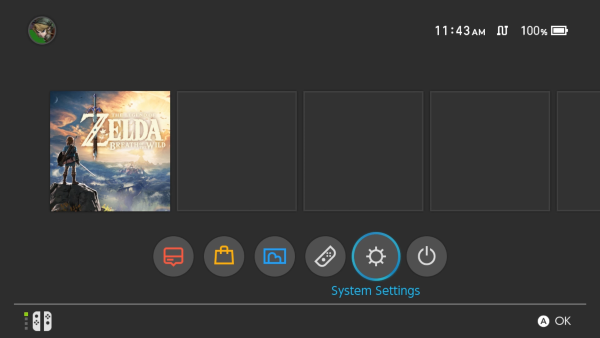

From the main screen, go to System Settings.

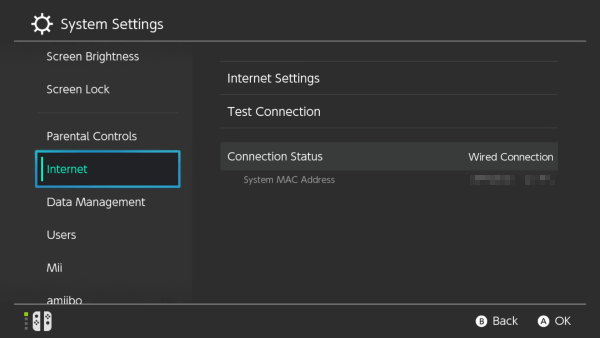

Then scroll down to Internet.

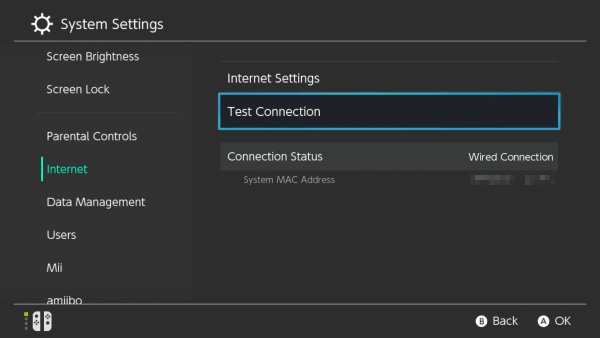

And select Test Connection.

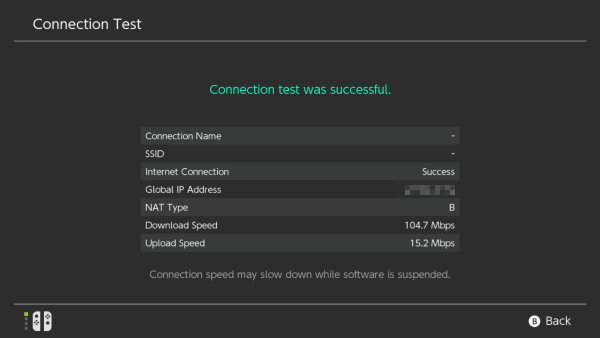

Wait for the test to complete and review the results.
4. Nintendo: NAT Types
For Nintendo consoles, NAT Types range from Type A (best for peer-to-peer communication) to F (unable to complete peer-to-peer communication). If your NAT type is A or B, your console is connected properly and shouldn't run into issues. If you are having problems, this may just be a glitch with your connection and may be resolved with a simple reboot. The remaining NAT types, C through F, generally indicate that there is some sort of restriction or blockage that is preventing your console from communicating properly. This means that your router's settings will have to be altered to allow proper communication, or might be altogether incompatible with your game console.
5. Nintendo Switch: Restart
Hold the PowerButton for roughly 3 seconds.
Select PowerOptions.
Choose either TurnOff or Restart.
If you chose to Turn Off, go ahead and turn it back on.
6. Networking: Power Cycle Home Network
Remove the power cable from both your modem and router.
Verify all lights are off on the modem and router.
After 30 seconds, plug in your modem and then your router.
It may take a few minutes for the internet to reconnect.
7. What's next?
8. Console: NAT Type Configuration
In order to get the best NAT Type for your game console, you may need to do one of the following:
Open required ports via Port Forwarding within your router.
Enable the DMZ (demilitarized zone) setting for your game console within your router. This opens all ports of communication for a specified device that's connected to your router.
Enable UPnP (Universal Plug and Play) on your router.
Not all of these options may be available to you depending on what kind of router you have in your home. In order to determine which ports need to be "opened" on your router to configure Port Forwarding, you may need to contact your game console's manufacturer, or refer to the console's supplied documentation. For details on how to configure your specific router, please refer to your router's supplied documentation for support.
9. What's next?
10. PlayStation 4: Test Connection
To test your Internet connection, follow these steps:

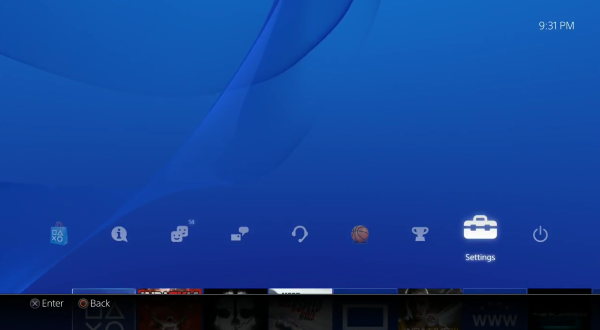

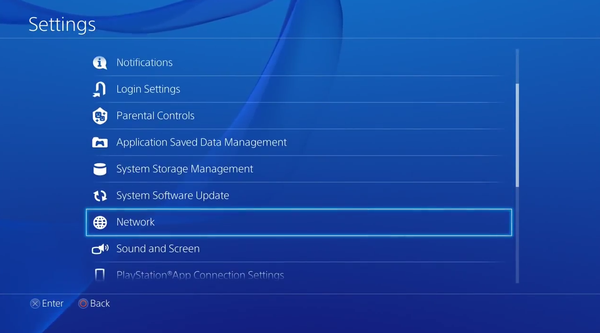

Select Settings.

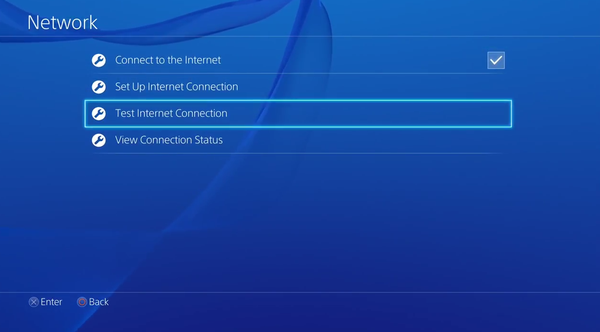

Select Network.

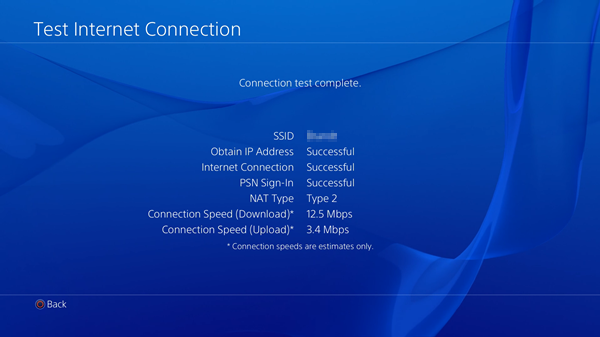

Select Test Internet Connection.
And review the test results.
11. PlayStation: NAT Types
For PlayStation consoles, NAT types can be:
Type 1: The console is connected directly to a modem or connected to a router but excluded from its security restrictions. You shouldn’t run into any issues whilst gaming, but this may cause security issues.
Type 2: The console is connected to a router and the router is configured to bypass certain security restrictions required for the console to be able to communicate with the PlayStation Network. You're connected properly and you shouldn’t run into any issues.
Type 3: The console is connected to a router and the router is not configured to bypass certain security restrictions required for the console to be able to communicate with the PlayStation Network. You may be able to connect to the PlayStation Network and perform downloads and updates but other functions may not work as intended.
If your NAT type is 1 or 2, your console is connected properly. If you are having problems, it may be due to a glitch with your connection and may be resolved with a simple reboot. If you have NAT Type 3, this generally indicates that there is some sort of restriction or blockage that is preventing your console from communicating properly. This means that your router's settings will have to be altered to allow proper communication, or might be altogether incompatible with your game console.
12. PlayStation 4: Restart
Turn off your PlayStation 4 and turn it back on after a few seconds to restart it.
To turn off your PlayStation 4
Press and hold the power button on the console for at least 7 seconds. The system will beep twice and then turn off.
Original PlayStation 4
PlayStation 4 Slim
PlayStation 4 Pro
13. Networking: Power Cycle Home Network
Remove the power cable from both your modem and router.
Verify all lights are off on the modem and router.
After 30 seconds, plug in your modem and then your router.
It may take a few minutes for the internet to reconnect.
14. What's next?
15. Console: NAT Type Configuration
In order to get the best NAT Type for your game console, you may need to do one of the following:
Open required ports via Port Forwarding within your router.
Enable the DMZ (demilitarized zone) setting for your game console within your router. This opens all ports of communication for a specified device that's connected to your router.
Enable UPnP (Universal Plug and Play) on your router.
Not all of these options may be available to you depending on what kind of router you have in your home. In order to determine which ports need to be "opened" on your router to configure Port Forwarding, you may need to contact your game console's manufacturer, or refer to the console's supplied documentation. For details on how to configure your specific router, please refer to your router's supplied documentation for support.
16. What's next?
17. Xbox One: Check Network Status
Press the Xbox button on the controller.
Go to the System tab.

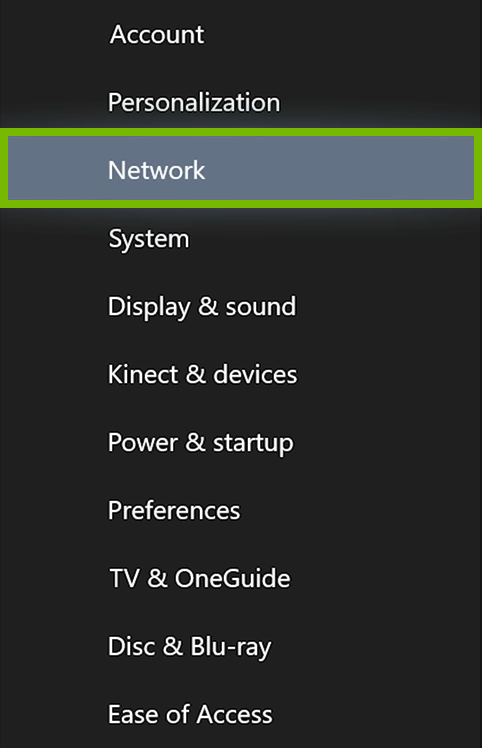

Then go to Settings.
Then go to Network.
And then go to Network Settings.

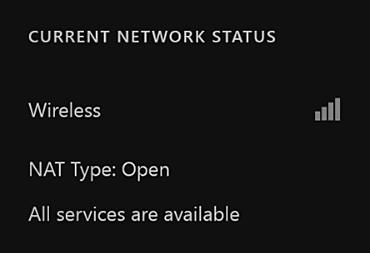

This screen is divided into three columns. The middle one shows you the network status.
The first indicator tells you whether you're connected and through what type of connection, wired or wireless. If you are wireless, it also displays a signal-strength indicator.
The second indicator displays your Network Address Translation (NAT) type. NAT allows you to have multiple devices connected to the internet at the same time while only having one physical connection to your internet service provider.
The third indicator tells you whether all of the Xbox Live services are up and running. If any services are down, this indicator will also detail which ones are down.
18. Xbox: NAT Types
The Xbox console has the following NAT types:
Open: You can chat with other people, as well as join and host multiplayer games with people who have any NAT type on their network.
Moderate: You can chat and play multiplayer games with some people; however, you might not be able to hear or play with others, and you typically won’t be chosen as the host of a match.
Strict: You can only chat and play multiplayer games with people who have an Open NAT type. You can’t be chosen as the host of a match.
If your NAT type is Open, your console is connected properly. If you are having problems, it may be due to a glitch with your connection and may be resolved with a simple reboot. If your NAT Type is Moderate or Strict, this generally indicates that there is some sort of restriction or blockage that is preventing your console from communicating properly. This means that your router's settings will have to be altered to allow proper communication, or might be altogether incompatible with your game console.
The table below illustrates who you can play multiplayer games with and communicate with in a party chat.
Xbox BXbox ANAT TypeOpenModerateStrictOpen✔✔✔Moderate✔✔✖Strict✔✖✖
19. Xbox One: Power Cycle
From the console
Press and hold the Xbox button on the front of the console for approximately 10 seconds or until it turns off.
Press the Xbox button to turn it back on.
From the controller
Press and hold the Xbox button on the controller.
Select Turn console off from the on-screen prompt.
Press the Xbox button to turn it back on.
20. Networking: Power Cycle Home Network
Remove the power cable from both your modem and router.
Verify all lights are off on the modem and router.
After 30 seconds, plug in your modem and then your router.
It may take a few minutes for the internet to reconnect.
21. What's next?
22. Console: NAT Type Configuration
In order to get the best NAT Type for your game console, you may need to do one of the following:
Open required ports via Port Forwarding within your router.
Enable the DMZ (demilitarized zone) setting for your game console within your router. This opens all ports of communication for a specified device that's connected to your router.
Enable UPnP (Universal Plug and Play) on your router.
Not all of these options may be available to you depending on what kind of router you have in your home. In order to determine which ports need to be "opened" on your router to configure Port Forwarding, you may need to contact your game console's manufacturer, or refer to the console's supplied documentation. For details on how to configure your specific router, please refer to your router's supplied documentation for support.
