Install the App for Your Canon EOS 5D MARK IV Camera

Authored by: Support.com Tech Pro Team

1. Introduction: Install your Canon EOS 5D Mark IV Camera App

This guide will walk you though installing the Canon Camera App on your Smartphone or Tablet.

2. Canon EOS 5D Mark IV: Setup Wi-Fi

1. Turn on the camera.
2. Press the Menu button.

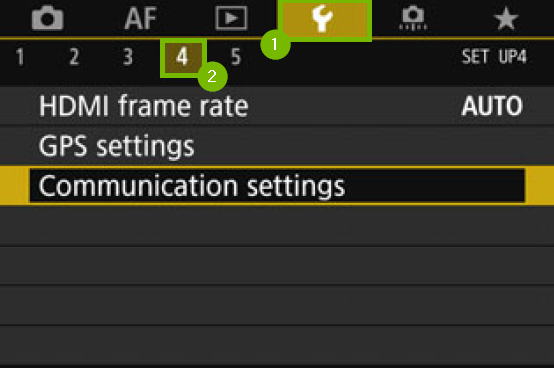

1. Tap on the wrench and then sub menu 4.


1.

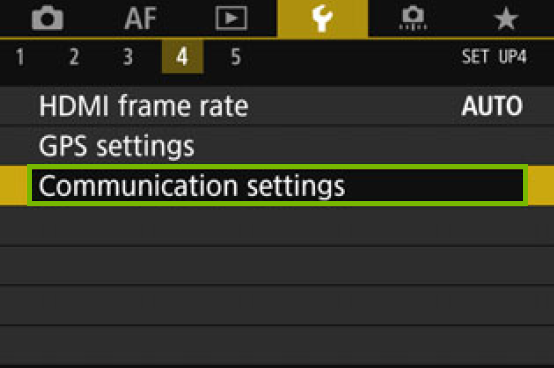

2. Tap on Communication Settings.


1.

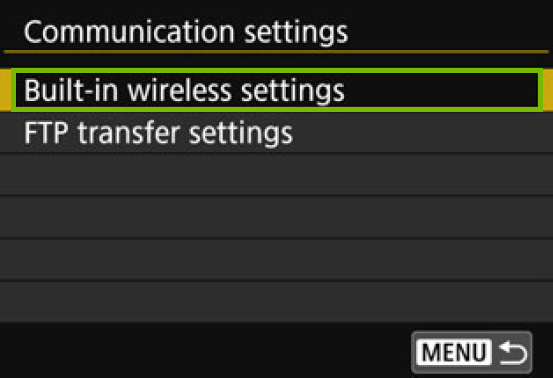

2. Tap on Built-In Wireless Settings.


1.

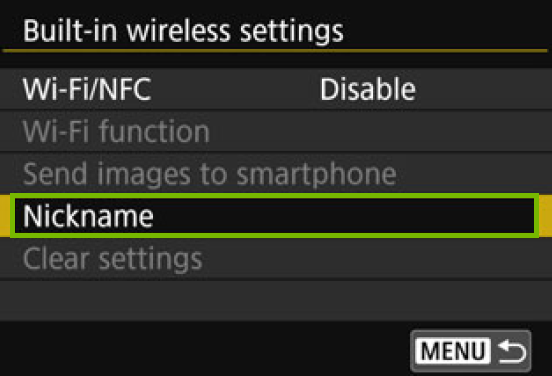

2. Tap on Nickname.


1.

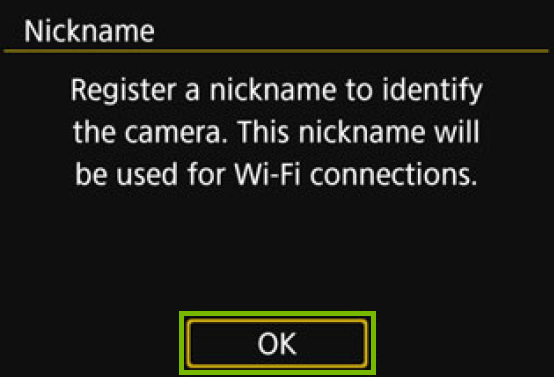

2. Tap on OK.


1.

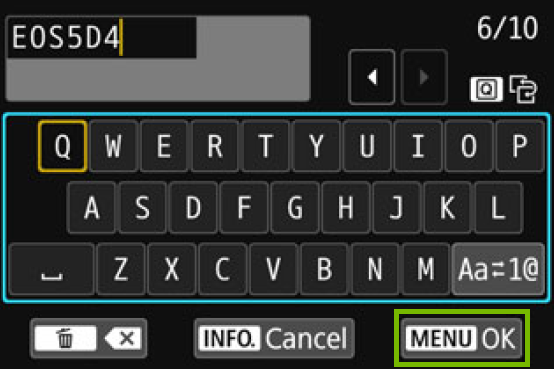

2. Enter a nickname and then tap on Menu/OK when done.


1.

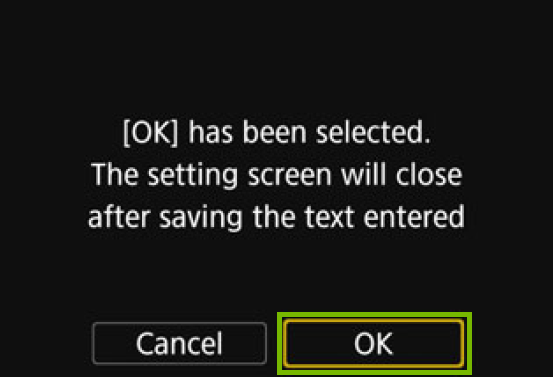

2. Tap on OK.


1.

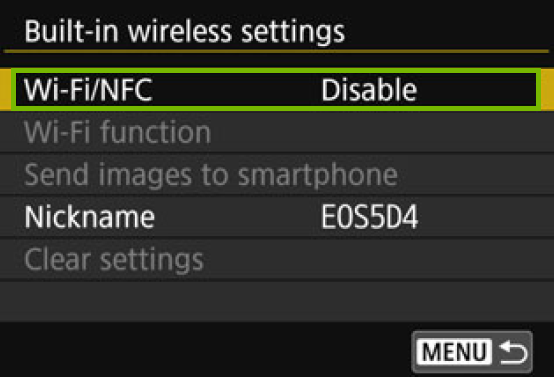

2. Tap on Wi-Fi/NFC.


1.

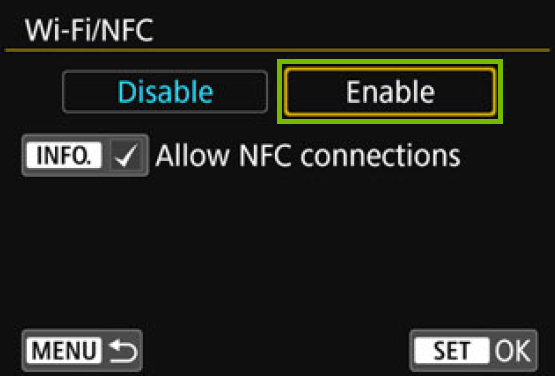

2. Tap on Enable.


1.

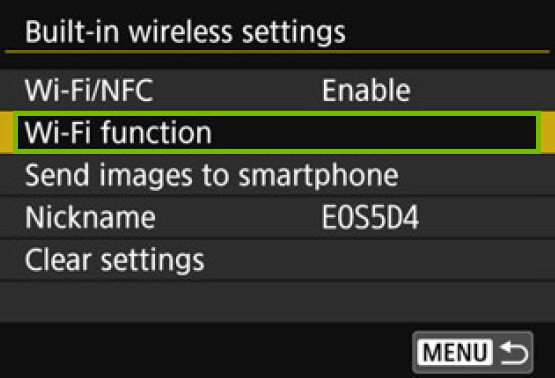

2. Tap on Wi-Fi Function.


1.

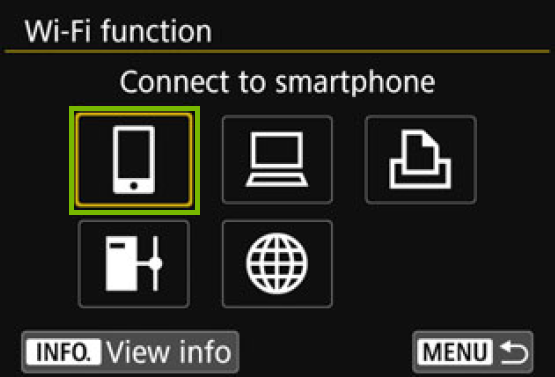

2. Tap on the smartphone icon.


1.

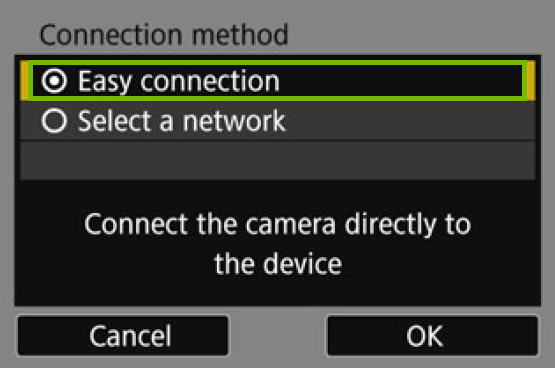

2. Tap on Easy Connection.


1.

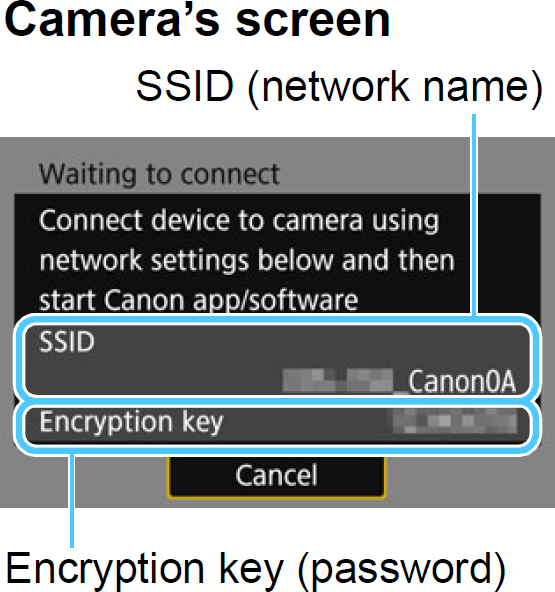

2. Your camera's Wi-Fi Network and Security Key will now be displayed.


3. Canon Camera Connect: Install Android App

1. Open Play Store.


1. Type "Canon Camera Connect" in the search bar and tap Install.


1. Once installed, tap Open to proceed to the setup.


4. Canon Camera Connect: Setup Android App

1. Open the Cannon Connect app from the Home Screen.

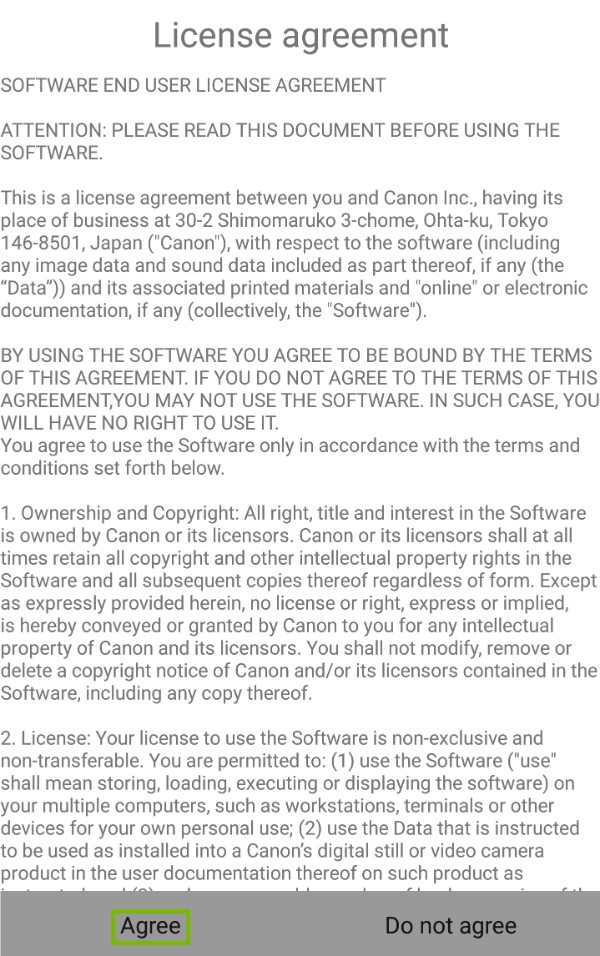

1. Tap on Agree.


1. Tap on Skip.

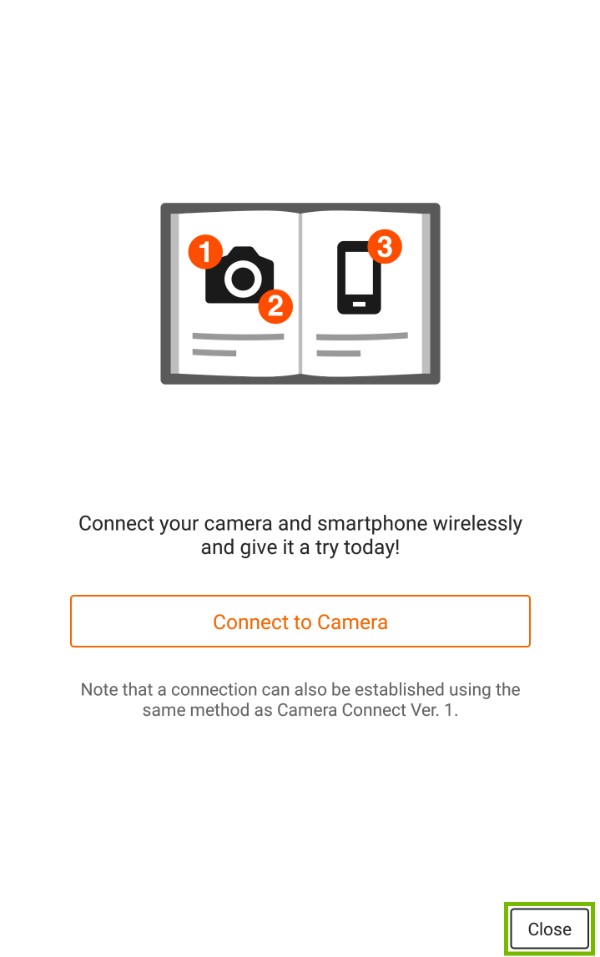

1. Tap on Close.

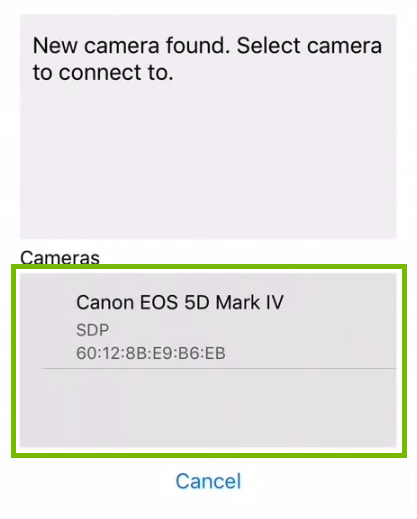

1. Once both devices are connected to the same network you should get a prompt asking to connect your camera to your device. Tap on the camera from the list.

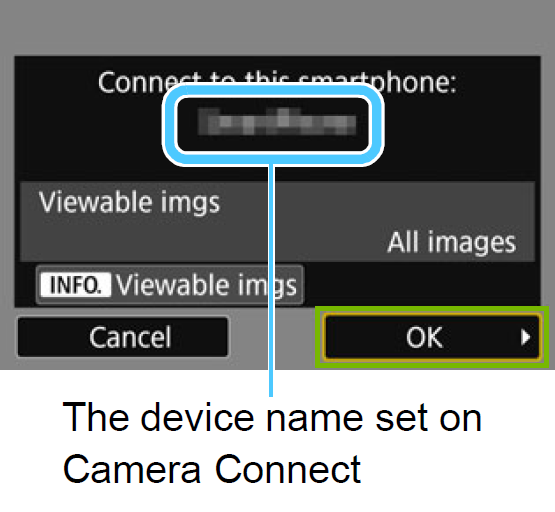

1. On the camera, tap OK to complete the connection.

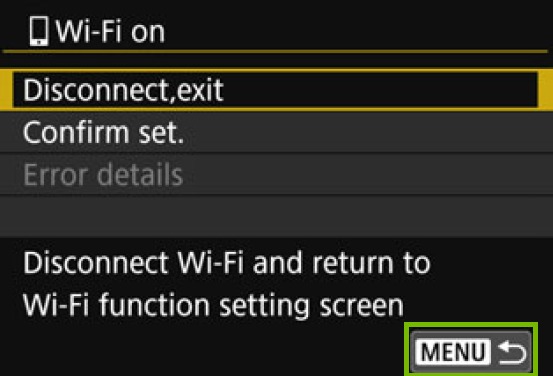

1. Tap the Menu button.


5. Canon EOS 5D Mark IV: Setup Wi-Fi

1. Turn on the camera.
2. Press the Menu button.


1. Tap on the wrench and then sub menu 4.


1.


2. Tap on Communication Settings.


1.


2. Tap on Built-In Wireless Settings.


1.


2. Tap on Nickname.


1.


2. Tap on OK.


1.


2. Enter a nickname and then tap on Menu/OK when done.


1.


2. Tap on OK.


1.


2. Tap on Wi-Fi/NFC.


1.


2. Tap on Enable.


1.


2. Tap on Wi-Fi Function.


1.


2. Tap on the smartphone icon.


1.


2. Tap on Easy Connection.


1.


2. Your camera's Wi-Fi Network and Security Key will now be displayed.


6. Canon Camera Connect: Install iOS App

1. Open the App Store.


1. Type in "Canon Camera Connect" in the search bar.
2. Find Canon Camera Connect in the search results and tap on GET.


1. Tap on Install to start download.


7. Canon Camera Connect: Setup iOS App

1. Open the Cannon Connect app from the Home Screen.

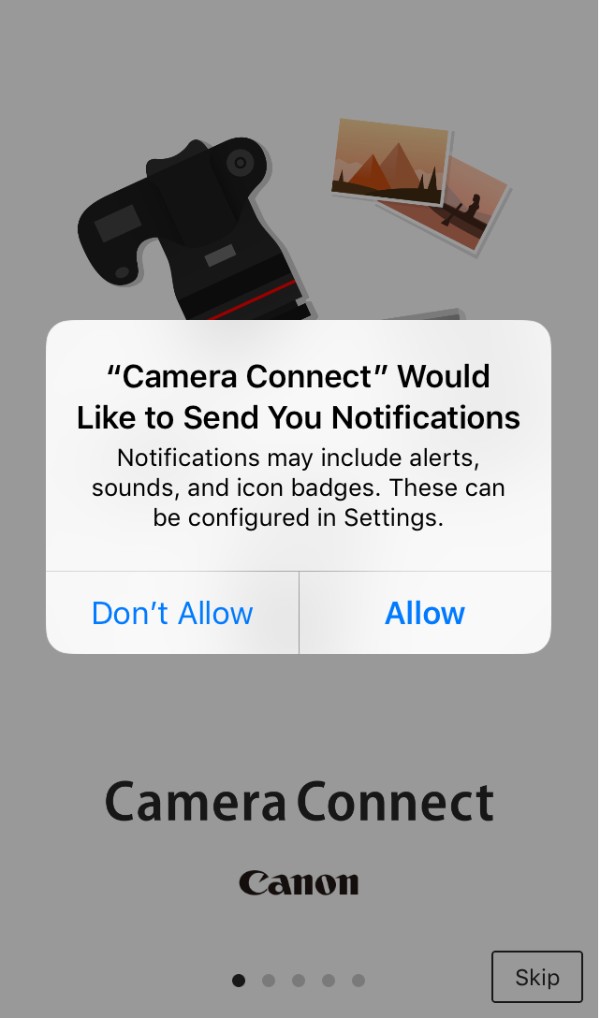

1. On first launch, you will be prompted to to allow the app to send you system notifications.

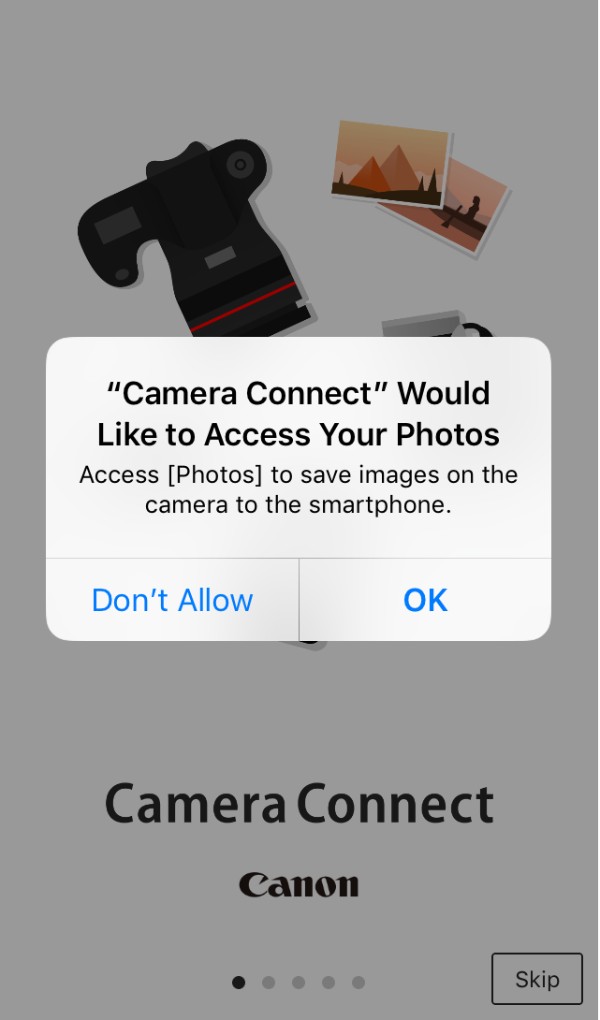

1. On first launch, you will be prompted to allow the app to access you photos.

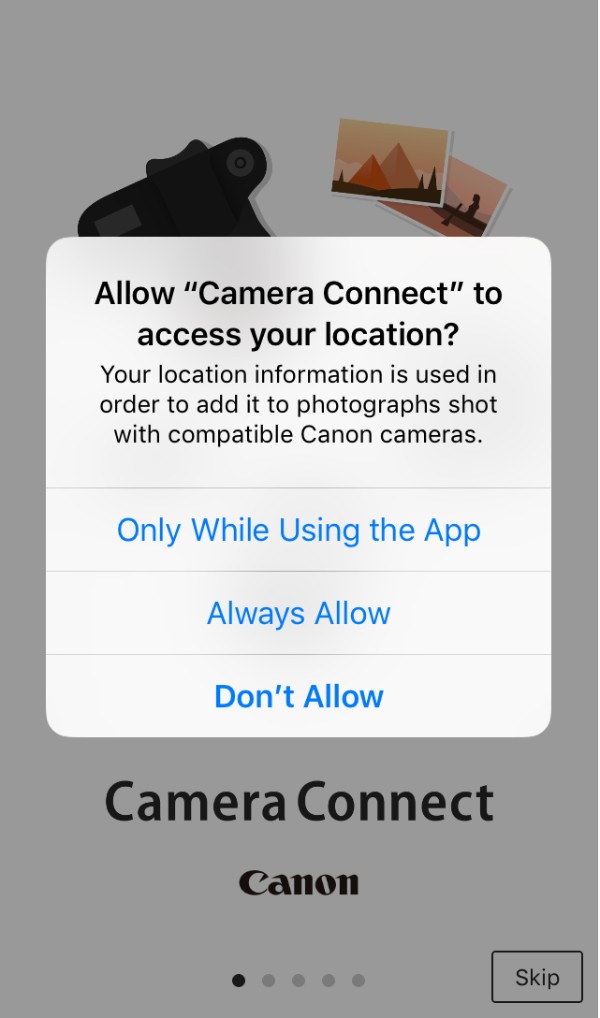

1. You will be prompted to allow the app to access your location.

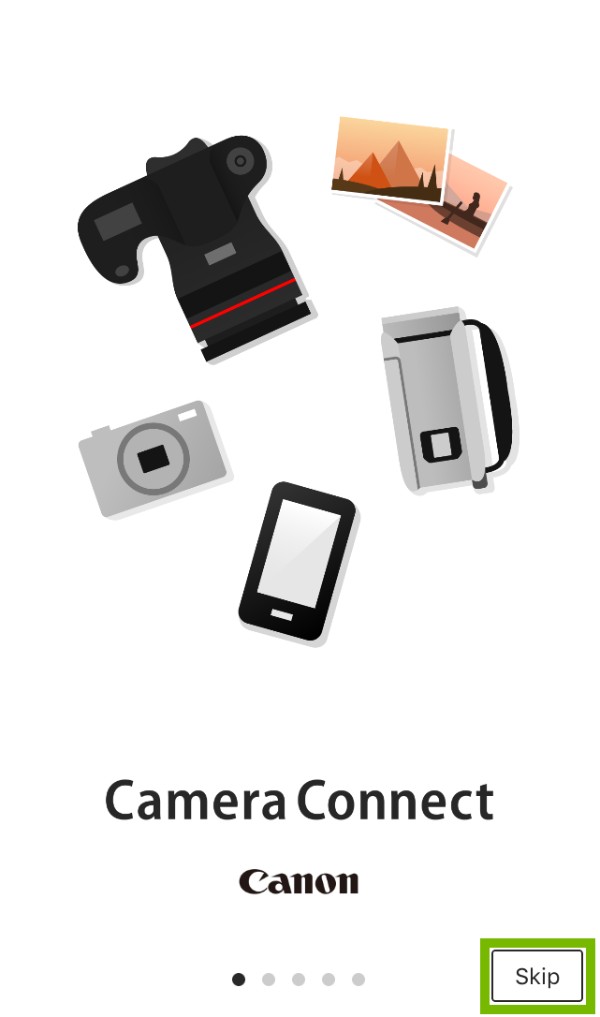

1. Tap on Skip.


1. Once both devices are connected to the same network you should get a prompt asking to connect your camera to your device. Tap on the camera from the list.


1. On the camera, tap OK to complete the connection.


1. Tap the Menu button.
